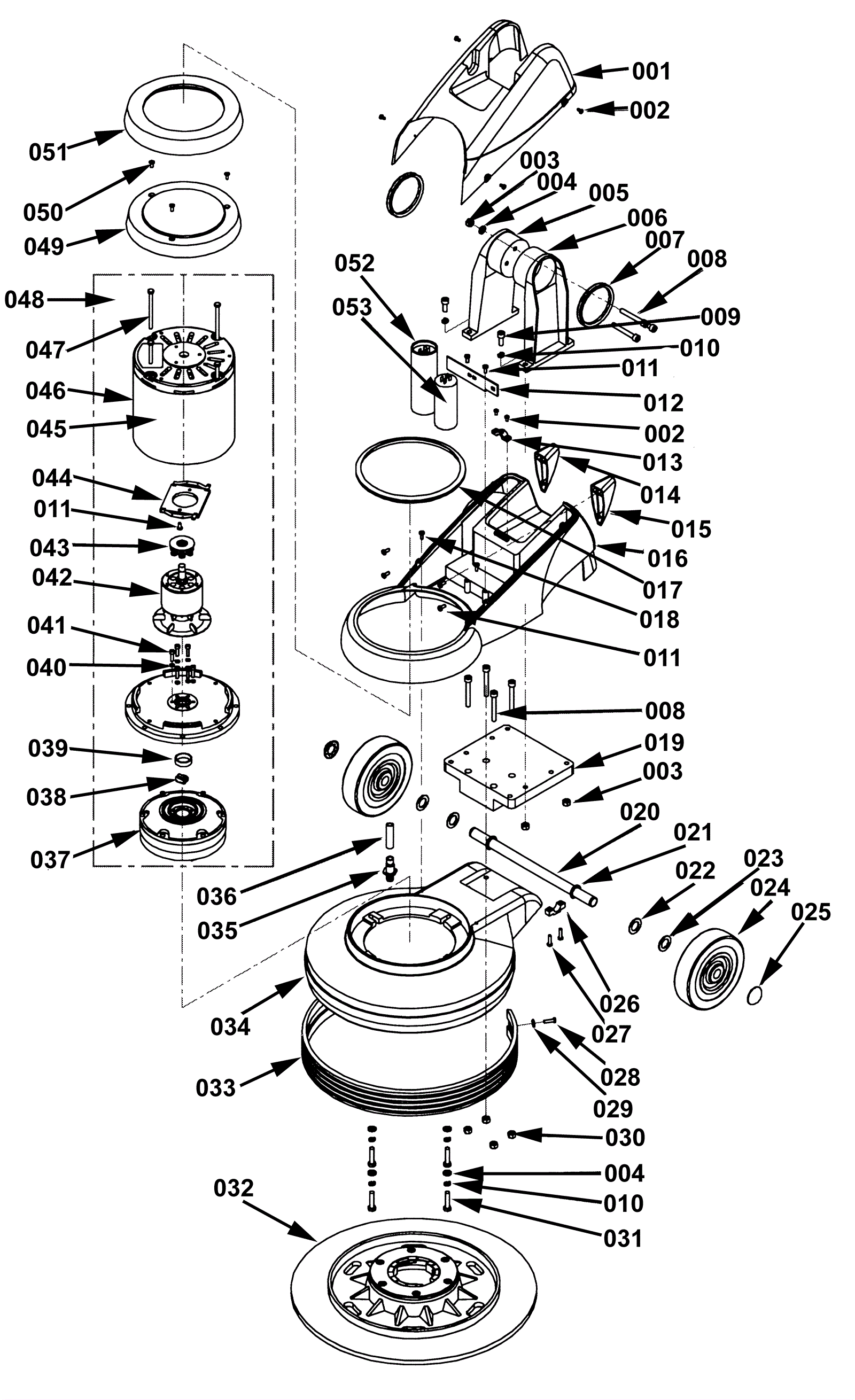

DRAGON DR20175 Base Group

#PartDescriptionPriceReqNotesAvailability
002 240-0041 Screw M4 x 16 self tapping (OBSOLETE) $0.99 6 usually ships 16-41 days
003 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 7 usually ships 11-24 days
004 240-0043 Plain washer $9.71 7 usually ships 16-41 days
005 240-0044 Right arm $20.57 1 usually ships 1-5 days
006 240-0045 Left arm $19.50 1 usually ships 1-5 days
007 240-0046 Arm seal $8.12 2 usually ships 1-5 days
008 240-0047 Screw M8 x 60 $9.71 7 usually ships 16-41 days
009 240-0048 Screw M8 x 25 hex socket $8.12 4 usually ships 16-41 days
011 240-0050 Screw M5 x 10 $9.71 8 usually ships 16-41 days
012 240-0051 Mounting frame capacitor $5.71 1 usually ships 1-5 days
013 240-0052 Block $9.71 1 usually ships 1-5 days
014 240-0053 Right plastic stand $9.71 1 usually ships 1-5 days
015 240-0054 Left plastic stand $9.71 1 usually ships 1-5 days
017 240-0056 Lower cover seal $5.71 1 usually ships 1-5 days
018 240-0057 Screw M5 x 12mm self-tapping $9.71 2 usually ships 16-41 days
020 240-0059 Axle $10.13 1 usually ships 16-41 days
021 240-0060 Retaining ring M19 external $9.71 2 usually ships 16-41 days
022 240-0061 Washer M19 $9.71 2 usually ships 16-41 days
023 240-0062 Washer M19 wave $9.71 2 usually ships 16-41 days
024 240-0063 Wheel 6.4 inch $32.55 2 usually ships 16-41 days
025 240-0064 Axle cap $11.26 2 ships same day
026 240-0065 Axle clamp block $9.71 2 usually ships 16-41 days
027 240-0066 Screw M5 x 20 self tapping $9.71 4 ships same day
028 240-0067 Screw M5 x 16mm $9.71 2 usually ships 16-41 days
029 240-0068 Plain washer $9.71 2 ships same day
030 240-0069 Nut M8 $9.71 4 usually ships 16-41 days
031 240-0070 Screw M8 x 30 $0.99 4 usually ships 1-5 days
032 240-0071 19 inch pad holder $148.78 1 ships same day
033 240-0072 Bumper 20 inch $16.07 1 usually ships 16-41 days
034 240-0073 Frame 20 inch $231.23 1 usually ships 1-5 days
035 240-0074 Hose barb $9.71 1 usually ships 16-41 days
036 240-0075 Hose solution $9.71 1 usually ships 16-41 days
037 240-0076 Gear box $672.06 1 usually ships 16-41 days
038 240-0077 Coupling $16.07 1 ships same day
039 240-0078 Sleeve $9.71 1 usually ships 16-41 days
040 240-0079 Washer M5 x 30 hex socket $0.99 6 usually ships 1-5 days
041 240-0080 Screw M5 x 30 hex socket $9.71 6 usually ships 16-41 days
042 240-0081 Rotor with fan assembly (OBSOLETE) $107.23 1 usually ships 1-5 days
043 240-0857 Centrifugal switch $25.36 1 usually ships 16-41 days
044 240-0083 Stationary switch (OBSOLETE) $19.62 1 usually ships 16-41 days
045 240-0084 Motor label $11.18 1 usually ships 16-41 days
046 240-0085 Motor 120v, 1.75hp $673.09 1 usually ships 1-5 days
047 240-0086 Bolt M6 x 201 $1.93 4 usually ships 16-41 days
049 240-0087 Top cover motor $22.41 1 usually ships 16-41 days
050 240-0088 Screw M5 x 12 hex socket $7.37 3 usually ships 1-5 days
051 240-0089 Top cover bumper $17.61 1 usually ships 16-41 days
052 240-0090 Starting capacitor $46.92 1 ships same day
053 240-0091 Running capacitor $46.92 1 ships same day
