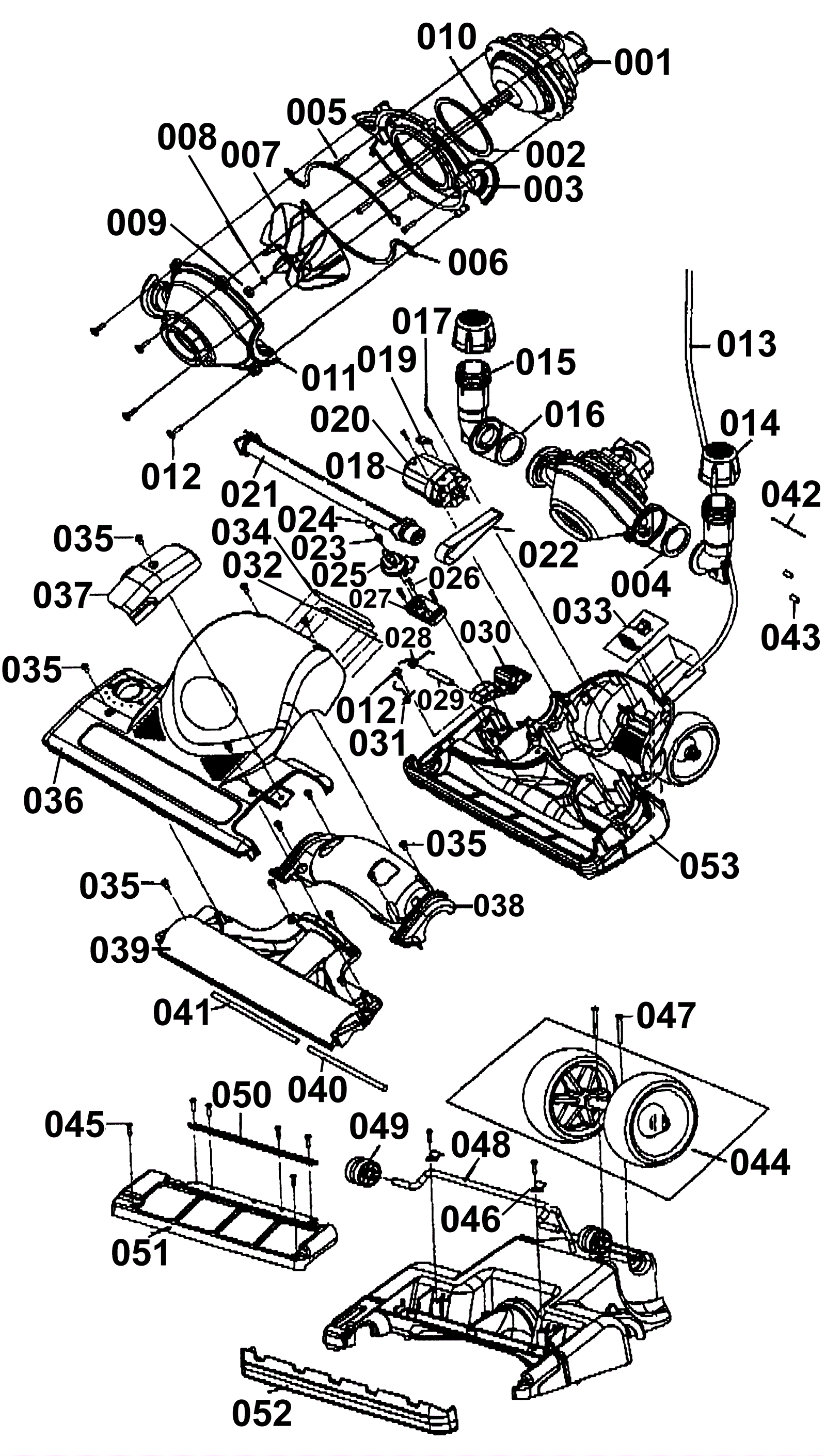

XL PRO 16 Lower Unit Assembly

#PartDescriptionPriceReqNotesAvailability
001 239-0633 Fan motor $136.36 usually ships 1-5 days
002 239-0634 Motor cap gasket $3.56 usually ships 1-5 days
003 239-0635 Rear scroll housing $10.56 Also need 2 of 006 usually ships 1-5 days
004 239-0636 Scroll liner ring $1.45 usually ships 1-5 days
005 239-0637 Screw 8-18x3/4 $6.68 usually ships 1-5 days
006 239-0638 Scroll inner gasket $1.47 usually ships 1-5 days
007 239-0639 Fan $24.48 usually ships 1-5 days
008 239-0602 Washer external lock tooth $0.99 usually ships 1-5 days
009 239-0590 Nut 1/2-32 yellow crome $0.99 usually ships 1-5 days
010 239-0640 Washer flat double d $0.99 usually ships 1-5 days
011 239-0641 Forward scroll housing $15.71 usually ships 1-5 days
012 239-0642 Screw with washer 8 $0.99 usually ships 1-5 days
013 239-0643 3-Conductor harness with terminal $25.74 usually ships 1-5 days
014 239-0644 Pivot collar $5.26 usually ships 1-5 days
015 239-0645 Pivot assembly $14.12 usually ships 1-5 days
016 239-0646 Pivot gasket $1.38 usually ships 1-5 days
017 239-0647 Screw 6x3/4 Call for price usually ships 1-5 days
018 239-0534 Motor seal $0.99 usually ships 1-5 days
019 239-0648 Gasket 1x1/2x1.88 $0.99 usually ships 1-5 days
021 239-0650 Brush roll assembly (OBSOLETE) $51.48 usually ships 6-16 days
022 194-0169 Belt $4.40 usually ships 5-16 days
023 239-0651 Screw shoulder bolt $13.35 usually ships 1-5 days
024 239-0652 Glamour cap $0.99 usually ships 1-5 days
025 239-0653 Knob $3.39 usually ships 1-5 days
026 239-0654 Screw 8x1 plt 30 flat head $0.99 usually ships 1-5 days
027 239-0655 Detent cap $13.86 usually ships 1-5 days
028 239-0656 Detent spring $3.48 usually ships 1-5 days
029 239-0657 Detent axle $71.28 usually ships 1-5 days
030 239-0658 Detent pedal $14.52 usually ships 1-5 days
031 239-0659 Spring $3.83 usually ships 1-5 days
032 239-0660 TCO reset label Call for price usually ships 1-5 days
033 239-0661 Plug and square strain relief kit $21.91 usually ships 1-5 days
034 239-0662 Servicing label Call for price usually ships 1-5 days
035 239-0663 Screw 10-24x1/2 machine $0.99 usually ships 1-5 days
036 239-0664 Top cover assembly with labels $69.85 usually ships 1-5 days
037 239-0665 Belt door $12.09 usually ships 1-5 days
038 239-0666 Rear inner base nozzle cover $23.89 usually ships 1-5 days
039 239-0667 Front inner cover assembly $21.84 Also need 1 each of 040 and 041 usually ships 1-5 days
040 239-0668 Front left inner base cover gasket $1.47 usually ships 1-5 days
041 239-0669 Front right inner base cover gasket $1.47 usually ships 1-5 days
042 239-0670 Cable tie $0.99 usually ships 1-5 days
043 239-0631 Wire nut $0.99 usually ships 1-5 days
044 239-0671 Rear wheel assembly $79.07 usually ships 1-5 days
045 239-0672 Screw 6-11x9/16 (OBSOLETE) $0.99 usually ships 6-16 days
046 239-0673 Axle clamp $0.99 usually ships 1-5 days
047 239-0674 Screw 8-10x1 1/2 $0.99 usually ships 1-5 days
048 239-0675 Axle $14.10 usually ships 1-5 days
049 239-0676 Front wheel $2.06 usually ships 1-5 days
050 239-0677 Micro sweep blade $1.98 usually ships 1-5 days
051 239-0678 Nozzle skid plate 16in $12.91 usually ships 1-5 days
052 239-0679 Nozzle bumper 16in $8.95 usually ships 1-5 days
053 239-0680 Baseplate assembly 16in $55.89 usually ships 1-5 days
