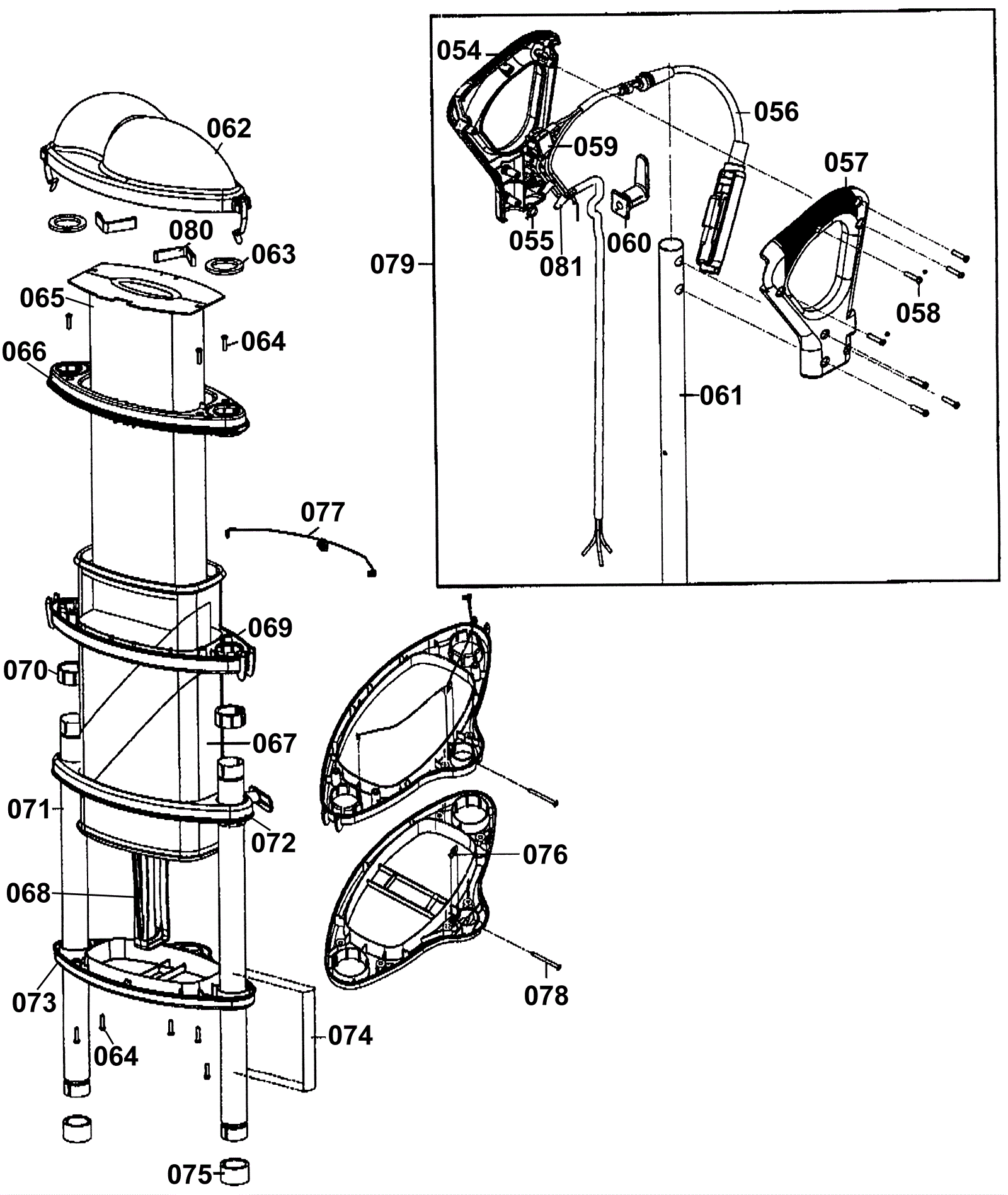

XL PRO 16 Upper Unit Assembly

#PartDescriptionPriceReqNotesAvailability
054 239-0607 Right handle (OBSOLETE) $7.79 usually ships 6-16 days
055 239-0608 Steel bushing ring $3.96 usually ships 1-5 days
056 239-0609 3-Conductor cord $26.38 usually ships 1-5 days
057 239-0610 Left handle (OBSOLETE) $7.79 usually ships 6-16 days
058 239-0595 Screw 8x3/4 phillips $0.99 usually ships 1-5 days
059 239-0611 Switch $16.65 usually ships 1-5 days
060 239-0612 Dump cord assembly post $9.55 usually ships 1-5 days
061 239-0613 Handle tube $25.40 usually ships 1-5 days
062 239-0614 Plenum latch assembly $46.60 usually ships 1-5 days
063 239-0615 Plenum tube gasket $2.51 usually ships 1-5 days
064 239-0616 Screw 8-16x7/8 $0.99 usually ships 1-5 days
065a 228-5000 Paper bags pack of 25 (OBSOLETE) $86.64 DS1700HY usually ships 6-16 days
065b 991-9116 Paper vacuum bags (pkg of 10) $13.75 usually ships 5-12 days
066 239-0617 Upper pipe clamp red $15.90 Also need 1 of 069 usually ships 1-5 days
067 239-0618 Outer bag $65.87 DS1700HY usually ships 1-5 days
068 239-0619 Inner bag support Call for price usually ships 1-5 days
069 239-0620 Lower pipe clamp red $22.50 usually ships 1-5 days
070 239-0621 Exhaust tube seal $1.98 usually ships 1-5 days
071 239-0622 Exhaust pipe $33.00 Also need 1 each of 074 and 075 usually ships 1-5 days
072 239-0623 Upper bottom pipe clamp $15.44 usually ships 1-5 days
073 239-0624 Lower bottom pipe clamp $15.44 usually ships 1-5 days
074 239-0625 Tube label $3.96 usually ships 1-5 days
075 239-0626 Felt seal $0.99 usually ships 1-5 days
076 239-0627 Nut 8-32 plate $0.99 usually ships 1-5 days
077 239-0628 Ground wire $11.56 usually ships 1-5 days
078 239-0629 Screw 8-32x1.825 $0.99 usually ships 1-5 days
079 239-0630 Handle assembly $21.84 Includes items 054 thru 061 and 081 usually ships 1-5 days
080 194-0169 Belt $4.40 usually ships 5-16 days
081 239-0631 Wire nut $0.99 usually ships 1-5 days
N/S 228-5002 Motor $83.03 usually ships 6-16 days
N/S 239-0632 Collar tool Call for price usually ships 1-5 days
