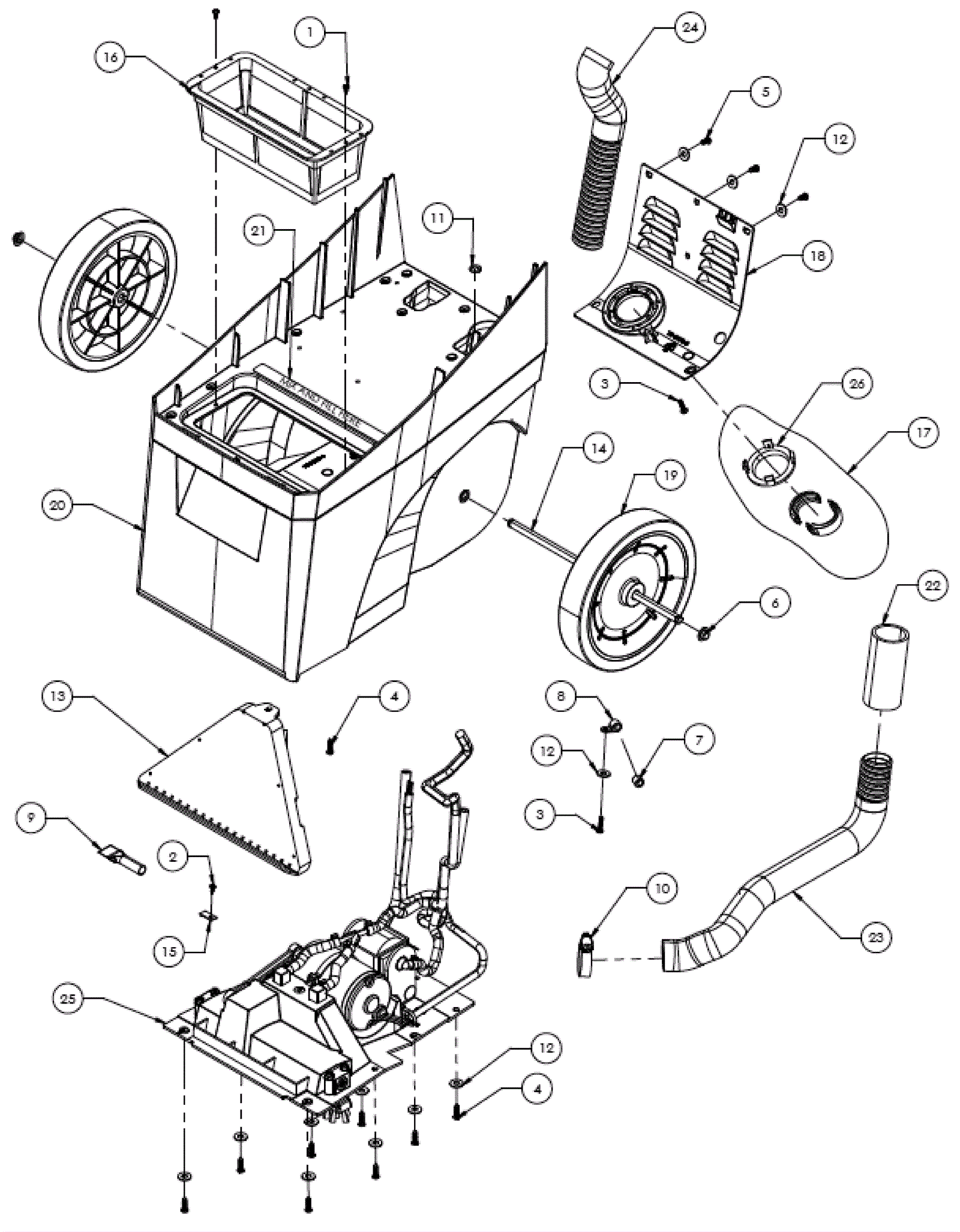

Lower Tank Assembly

#PartDescription ReqNotesAvailability
1 238-5111 Screw 2
2 238-5112 Screw (OBSOLETE) 1
3 238-5072 Screw (OBSOLETE) 2
4 238-5070 Screw (OBSOLETE) 9
5 238-5115 Screw (OBSOLETE) 3
6 238-5054 Hub cap 2
7 238-5116 Grommet 1
8 238-5117 Cable clamp 1
9 238-5046 Sump filter screen 1
10 238-5118 Hose clamp 1
11 238-5119 O-ring 1
12 238-5110 Washer (OBSOLETE) 12
13 238-5064 Floor nozzle with rolled lip 1
14 238-5121 Rear axle 1
15 238-5122 Tab 1
16 238-5002 Filter basket 1
17 238-5123 Split grommet kit (OBSOLETE) 1
18 238-5124 Vent panel (OBSOLETE) 1
19 238-5065 5 inch wheel 2
20 N/A Not available 1 (Blue tank housing)
21 238-5125 Mix and fill decal 1
22 238-5126 Hose end 1
23 238-5127 18 inch vacuum hose (OBSOLETE) 1
24 238-5128 22 inch vacuum hose 1
25 N/A Not available 1 (Bottom pan sub assembly)
26 238-5129 Grommet retainer 1
