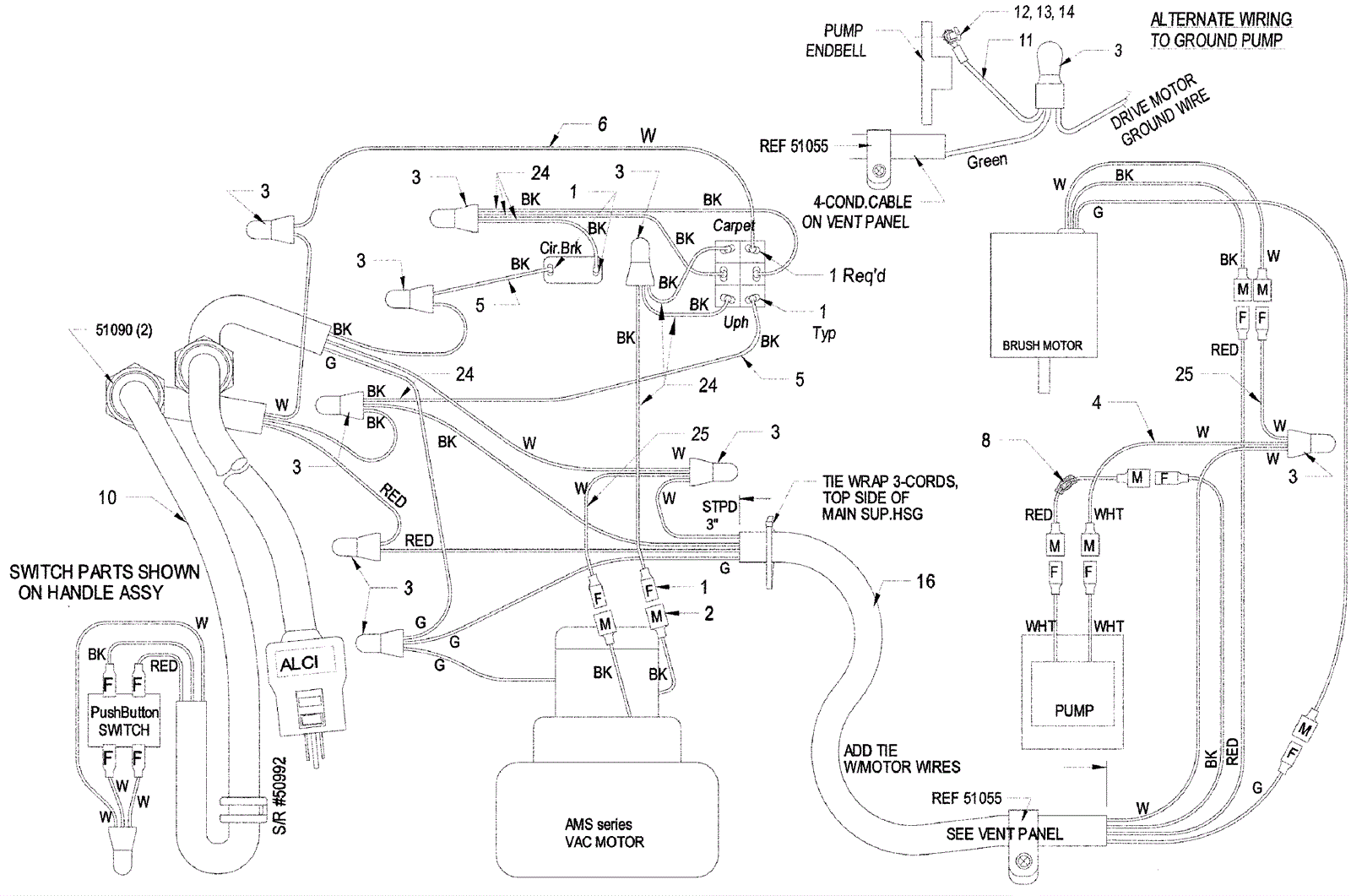

MIGHTY PRO Wiring Diagram - 120V

#PartDescriptionPriceReqNotesAvailability
1 238-5369 Female terminal Call for price usually ships 10-17 days
3 238-5368 Closed end insulation connector $0.99 usually ships 10-17 days
4 238-5360 3 inch wire (white) Call for price usually ships 10-17 days
6 238-5360 3 inch wire (white) Call for price usually ships 10-17 days
10 238-5021 18/3 power cord 36 inch (black) $3.59 usually ships 10-17 days
25 238-5360 3 inch wire (white) Call for price usually ships 10-17 days
