PRO-Deep Carpet Cleaner

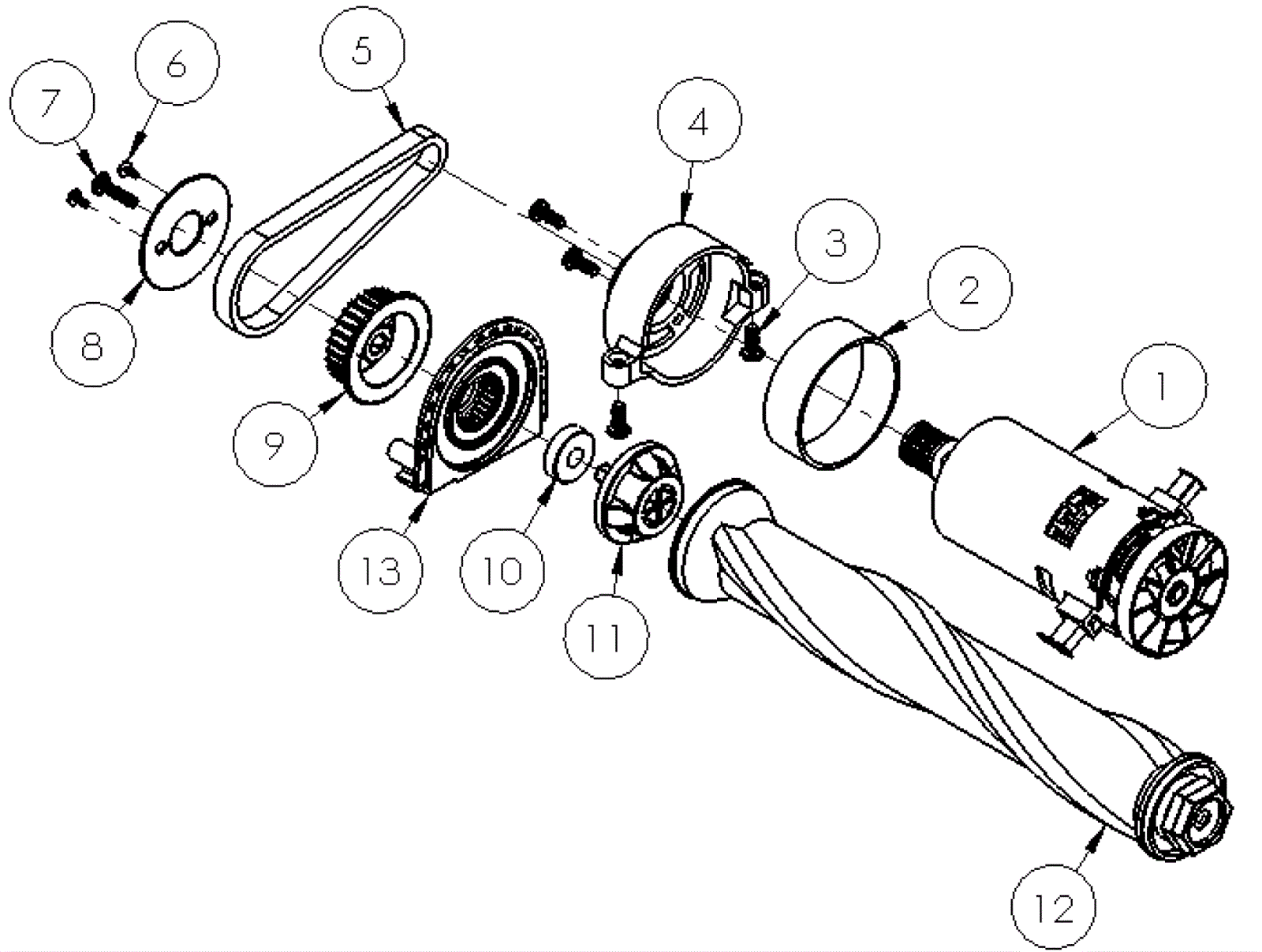

Brushroll Motor Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
238-5271
Brushroll motor
$46.34
1
usually ships 16-34 days
2
238-5272
Sheath (OBSOLETE)
$0.99
1
usually ships 16-34 days
3
238-5176
Screw (OBSOLETE)
$0.99
4
usually ships 16-34 days
4
238-5273
Mount
$1.30
1
usually ships 16-34 days
5
238-5274
Belt
$6.03
1
ships same day
6
238-5275
Screw with pad
$3.15
2
usually ships 16-34 days
7
238-5276
Screw reverse thread
$3.15
1
usually ships 16-34 days
8
238-5277
Plate
$0.99
1
usually ships 16-34 days
9
238-5278
Brushroll gear
$4.42
1
usually ships 16-34 days
10
238-5279
Bearing
$10.22
1
usually ships 16-34 days
11
238-5281
Interface
$3.78
1
usually ships 16-34 days
12
238-5280
Brushroll
$58.66
1
usually ships 16-34 days
13
N/A
Not available
Call for price
1
(Base)
usually ships 3-26 days
