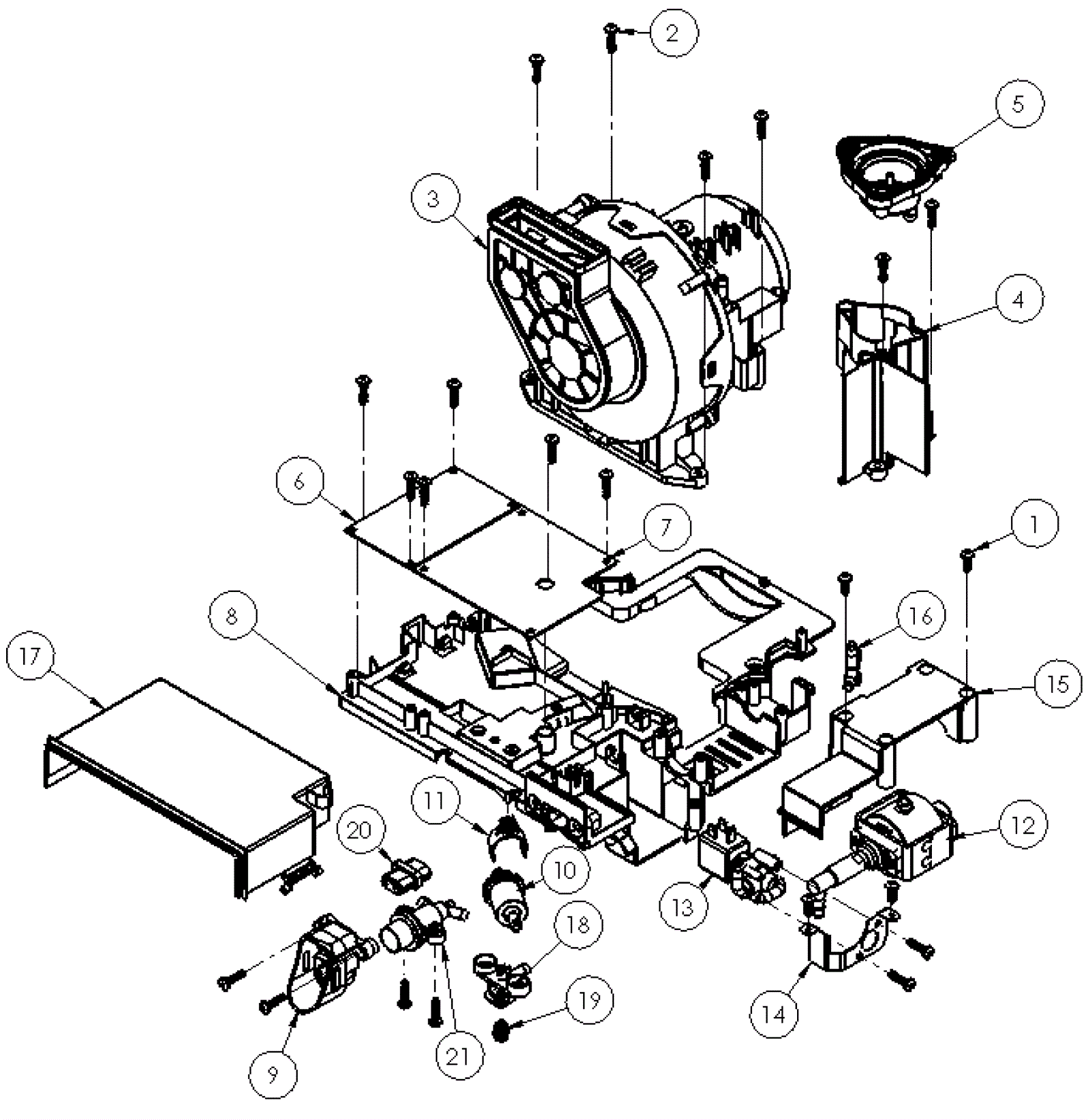

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
238-5176
|
Screw (OBSOLETE) |
4 |
|
|
2 |
238-5070
|
Screw (OBSOLETE) |
18 |
|
|
3 |
N/A
|
Not available |
1 |
(Vacuum motor assembly) |
|
4 |
238-5257
|
Water inlet mount |
1 |
|
|
5 |
238-5256
|
Clean water inlet |
1 |
|
|
6 |
238-5255
|
Power board |
1 |
|
|
7 |
238-5254
|
Control board (OBSOLETE) |
1 |
|
|
8 |
238-5253
|
Tray |
1 |
|
|
9 |
238-5252
|
Tool interface housing |
1 |
|
|
10 |
238-5251
|
Check valve |
1 |
|
|
11 |
238-5258
|
Clip (OBSOLETE) |
1 |
|
|
12a |
238-5259
|
Gotec pump (OBSOLETE) |
1 |
(class H) |
|
12b |
238-5260
|
Jiayin pump |
1 |
(version PDC-1) |
|
13 |
992-9652
|
120V solenoid valve |
1 |
|
|
14 |
238-5262
|
Mount |
1 |
|
|
15 |
238-5263
|
Pump cover |
1 |
|
|
16 |
238-5264
|
Tubing (OBSOLETE) |
1 |
|
|
17 |
238-5265
|
Cover |
1 |
|
|
18 |
238-5266
|
Jet tip housing (OBSOLETE) |
1 |
|
|
19 |
238-5267
|
Jet tip |
1 |
|
|
20 |
238-5268
|
Electrical tool interface |
1 |
|
|
21 |
238-5269
|
Solution tool interface |
1 |
|
|
