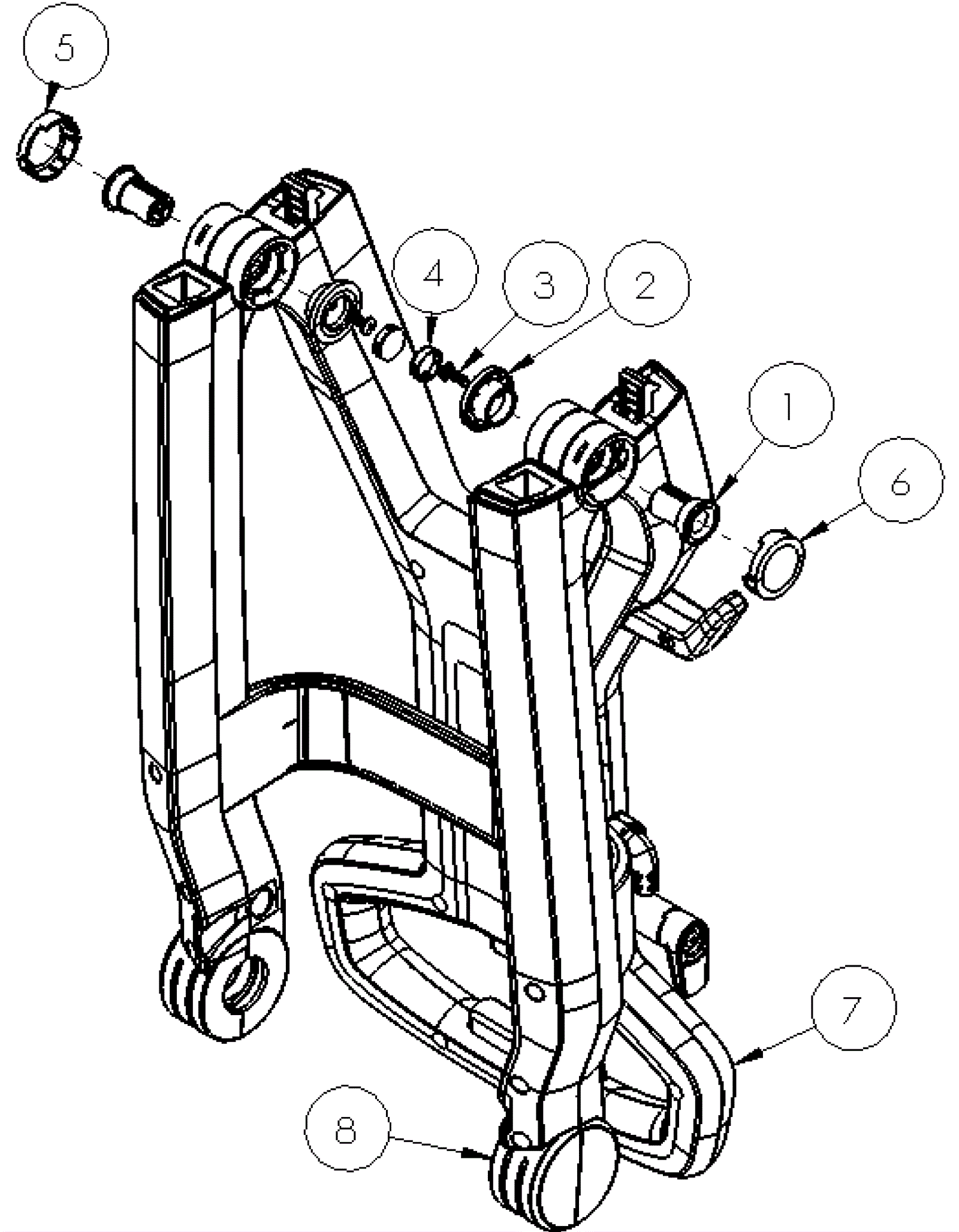

Hinge Assembly

#PartDescription ReqNotesAvailability
1 238-5174 Folding hinge 2
2 238-5175 Hinge cover 2
3 238-5176 Screw (OBSOLETE) 2
4 238-5177 Cap 2
5 238-5178 Right hand hinge cover 1
6 238-5179 Left hand hinge cover 1
7 N/A Not available 1 (Upper handle assembly)
8 N/A Not available 1 (Lower handle assembly)
