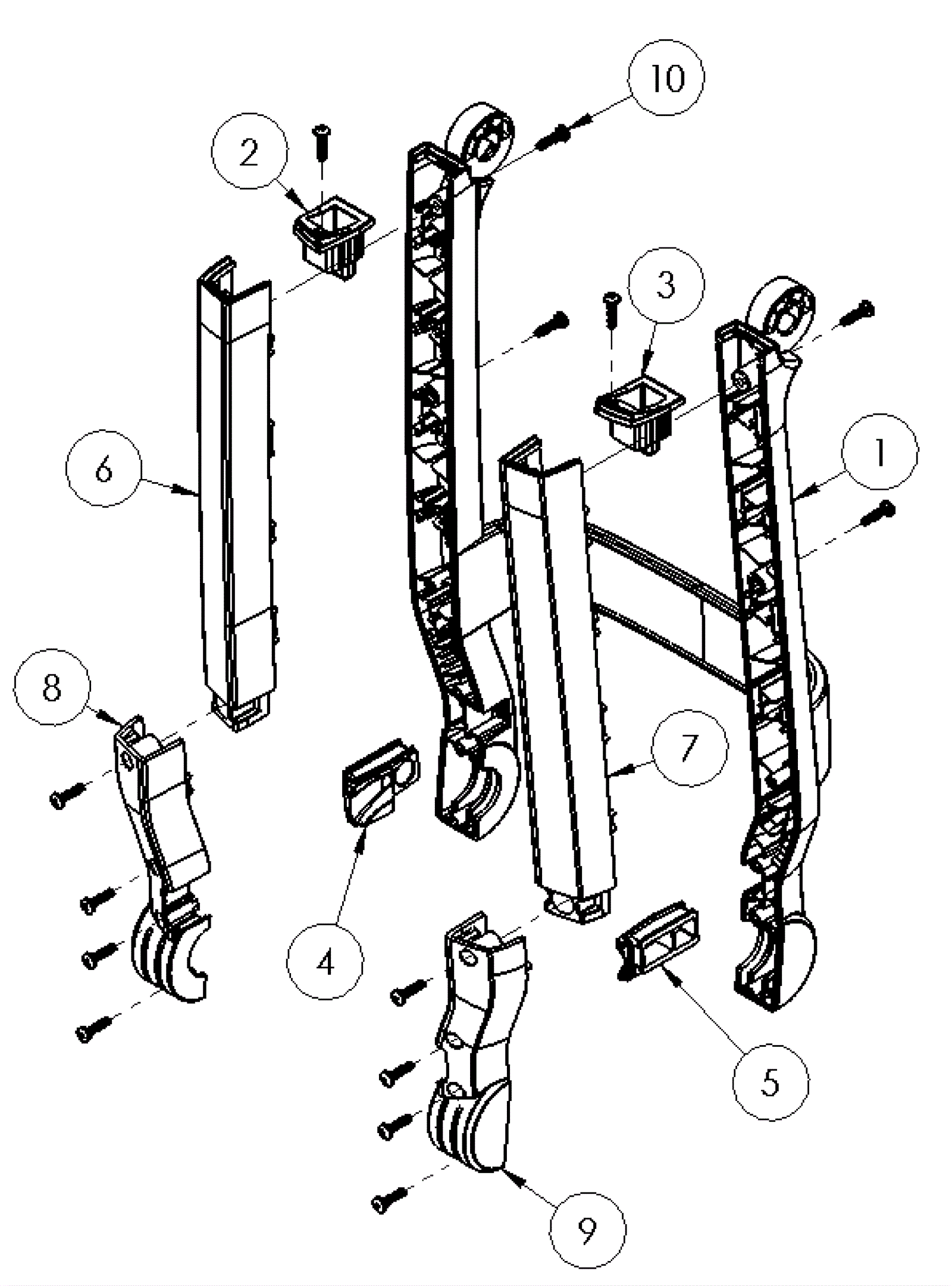

Lower Handle Assembly

#PartDescription ReqNotesAvailability
1 238-5162 Lower back handle 1
2 238-5163 Right hand lock 1
3 238-5164 Left hand lock 1
4 238-5165 Right hand detent track (OBSOLETE) 1
5 238-5166 Left hand detent track (OBSOLETE) 1
6 238-5167 Right hand middle handle 1
7 238-5168 Left hand middle handle 1
8 238-5169 Right hand lower handle 1
9 238-5170 Left hand lower handle 1
10 238-5070 Screw (OBSOLETE) 14
N/S 238-5171 4-way terminal block 1
N/S 238-5172 5-way terminal block 1
N/S 238-5173 Warning decal 1
