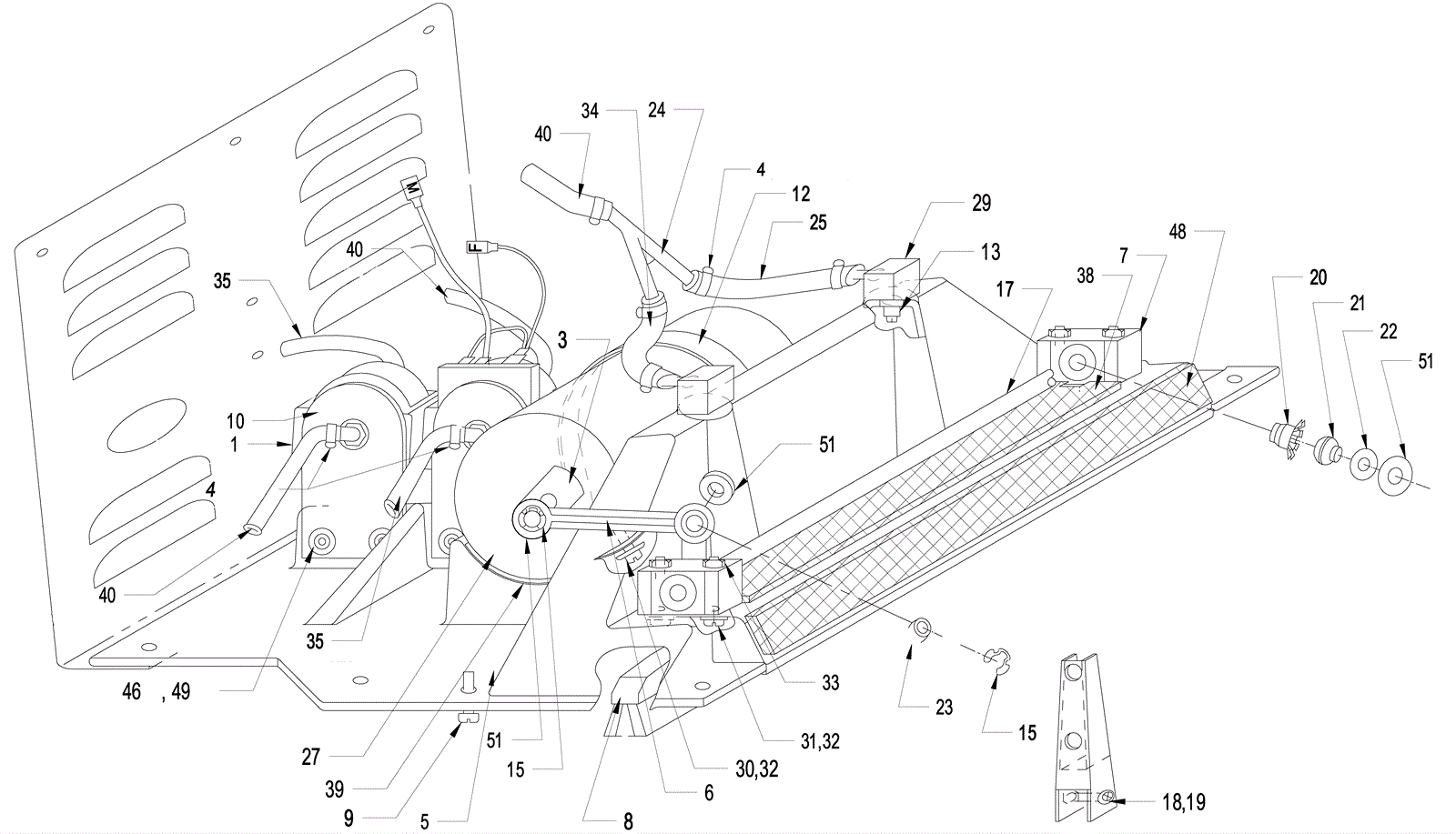

Mighty Pro Wide Track Bottom Pan Assembly - JLT Pump

#PartDescriptionPriceReqNotesAvailability
1 238-5009 Pump kit - includes elbows and diodes $142.38 2 usually ships 16-34 days
3 238-5109 Cam assembly $3.59 2 usually ships 16-34 days
4 238-5092 Hose clamp $2.78 9 ships same day
5 238-7012 Bottom pan (black) $16.13 1 usually ships 16-34 days
6 238-5444 Drive arm $1.32 1 usually ships 16-34 days
7 238-5099 Pillow block $4.11 2 usually ships 16-34 days
8 238-5044 Replacement brush - Wide Track $23.45 1 ships same day
9 238-5176 Screw (OBSOLETE) $0.99 9 usually ships 16-34 days
10 238-5103 Rubber pump mount $1.58 4 usually ships 16-34 days
12 238-5089 Cable tie (black) $0.99 1 ships same day
13 238-7013 Jet spray tip nylon $15.80 2 usually ships 16-34 days
15 238-5087 C clip $0.99 2 ships same day
17 238-7014 9.46 inch brush holder assembly $25.41 1 usually ships 16-34 days
18 238-5437 Screw Call for price 2 usually ships 16-34 days
19 238-5304 Nut $0.99 2 usually ships 16-34 days
20 238-5106 Sleeve $0.99 2 ships same day
21 238-5091 Bearing $3.87 2 ships same day
22 238-5097 Felt washer (OBSOLETE) $0.99 2 usually ships 16-34 days
23 238-5105 Bushing $2.60 2 ships same day
24 238-5101 Connector $1.75 1 ships same day
25 238-5005 Hose $0.99 1 ships same day
27a 238-5025 Brush drive motor kit $95.50 1 ships same day
27b 238-5025 Brush drive motor kit $95.50 1 ships same day
29 238-5006 90 degree barbed fitting $2.55 2 usually ships 16-34 days
30 238-5098 Screw $0.99 2 usually ships 16-34 days
31 238-5096 Screw $0.99 4 usually ships 16-34 days
32 238-5110 Washer (OBSOLETE) $0.99 6 usually ships 16-34 days
33 238-5093 Nut $0.99 4 usually ships 16-34 days
34 238-7015 Hose $0.99 1 usually ships 16-34 days
35 238-5442 Solution hose (OBSOLETE) $1.01 2 usually ships 16-34 days
38 238-7017 Sealing gasket $0.99 1 usually ships 16-34 days
39 238-5102 Motor gasket $4.62 1 usually ships 16-34 days
40 238-5441 Solution hose $3.09 3 usually ships 16-34 days
46 238-5095 Rivet $0.99 8 usually ships 16-34 days
48 238-7019 Gasket 3/4 x 1/4 x 9 3/4 inch $0.99 1 usually ships 16-34 days
49 238-5094 Washer $0.99 8 usually ships 16-34 days
51 238-5090 Washer (OBSOLETE) $0.99 4 usually ships 16-34 days
