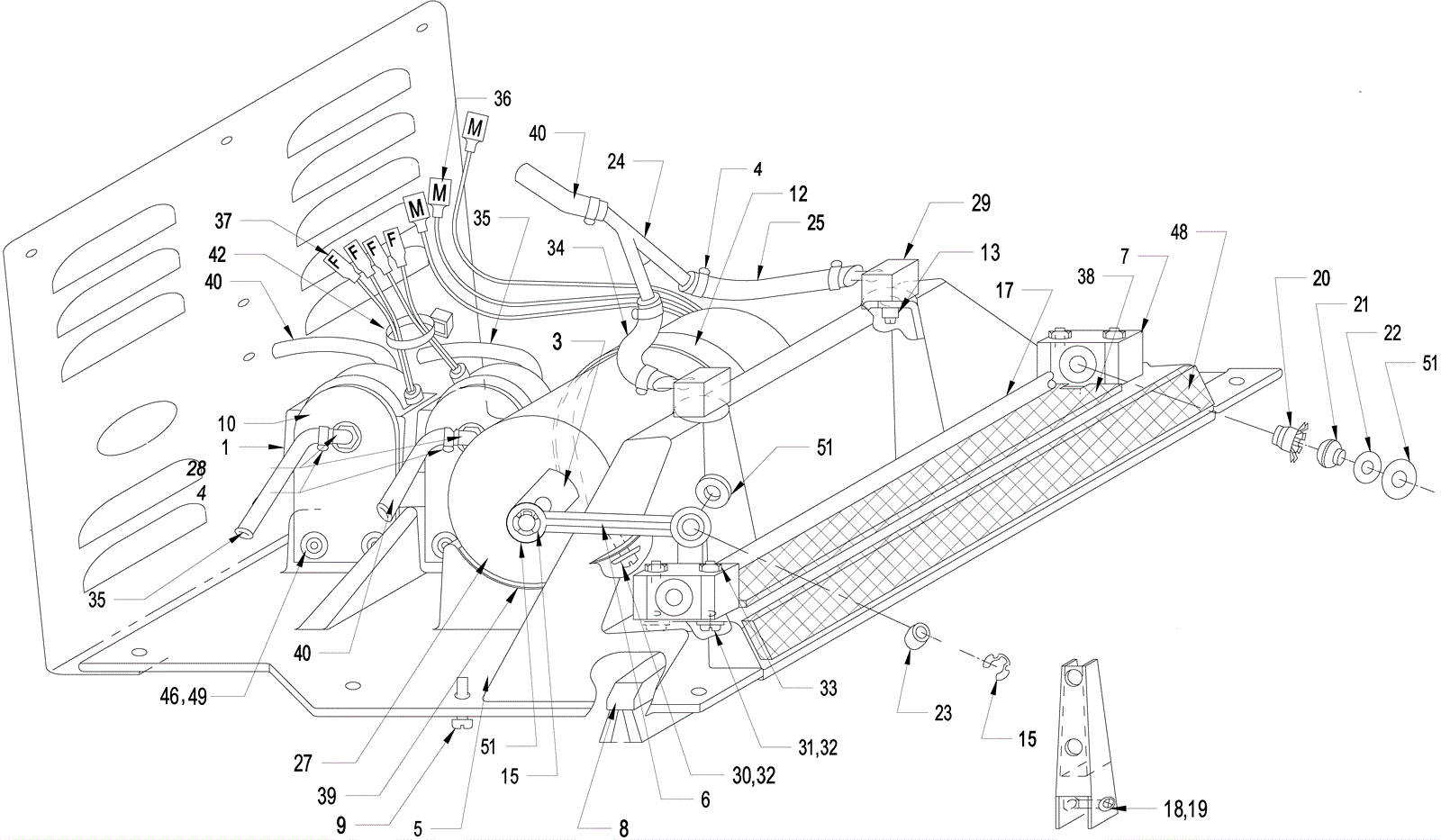

Bottom Pan Assembly - Gotec Pump

#PartDescription ReqNotesAvailability
1 238-5009 Pump kit - includes elbows and diodes 2
3 238-5109 Cam assembly 2
4 238-5092 Hose clamp 9
5 238-7012 Bottom pan (black) 1
6 238-5444 Drive arm 1
7 238-5099 Pillow block 2
8 238-5044 Replacement brush - Wide Track 1
9 238-5176 Screw (OBSOLETE) 9
10 238-5103 Rubber pump mount 4
12 238-5089 Cable tie (black) 1
13 238-7013 Jet spray tip nylon 2
15 238-5087 C clip 2
17 238-7014 9.46 inch brush holder assembly 1
18 238-5437 Screw 2
19 238-5304 Nut 2
20 238-5106 Sleeve 2
21 238-5091 Bearing 2
22 238-5097 Felt washer (OBSOLETE) 2
23 238-5105 Bushing 2
24 238-5101 Connector 1
25 238-5005 Hose 1
27a 238-5025 Brush drive motor kit 1
27b 238-5025 Brush drive motor kit 1
28 238-5439 Barb elbow (OBSOLETE) 4
29 238-5006 90 degree barbed fitting 2
30 238-5098 Screw 2
31 238-5096 Screw 4
32 238-5110 Washer (OBSOLETE) 4
33 238-5093 Nut 6
34 238-7015 Hose 4
35 238-5442 Solution hose (OBSOLETE) 1
36 238-7016 Male terminal 2
37 238-5369 Female terminal 4
38 238-7017 Sealing gasket 1
39 238-5102 Motor gasket 1
40 238-5441 Solution hose 3
42 238-7018 Cable tie 1
46 238-5095 Rivet 8
48 238-7019 Gasket 3/4 x 1/4 x 9 3/4 inch 1
49 238-5094 Washer 8
51 238-5090 Washer (OBSOLETE) 4
N/S 238-5357 Elbow 2
