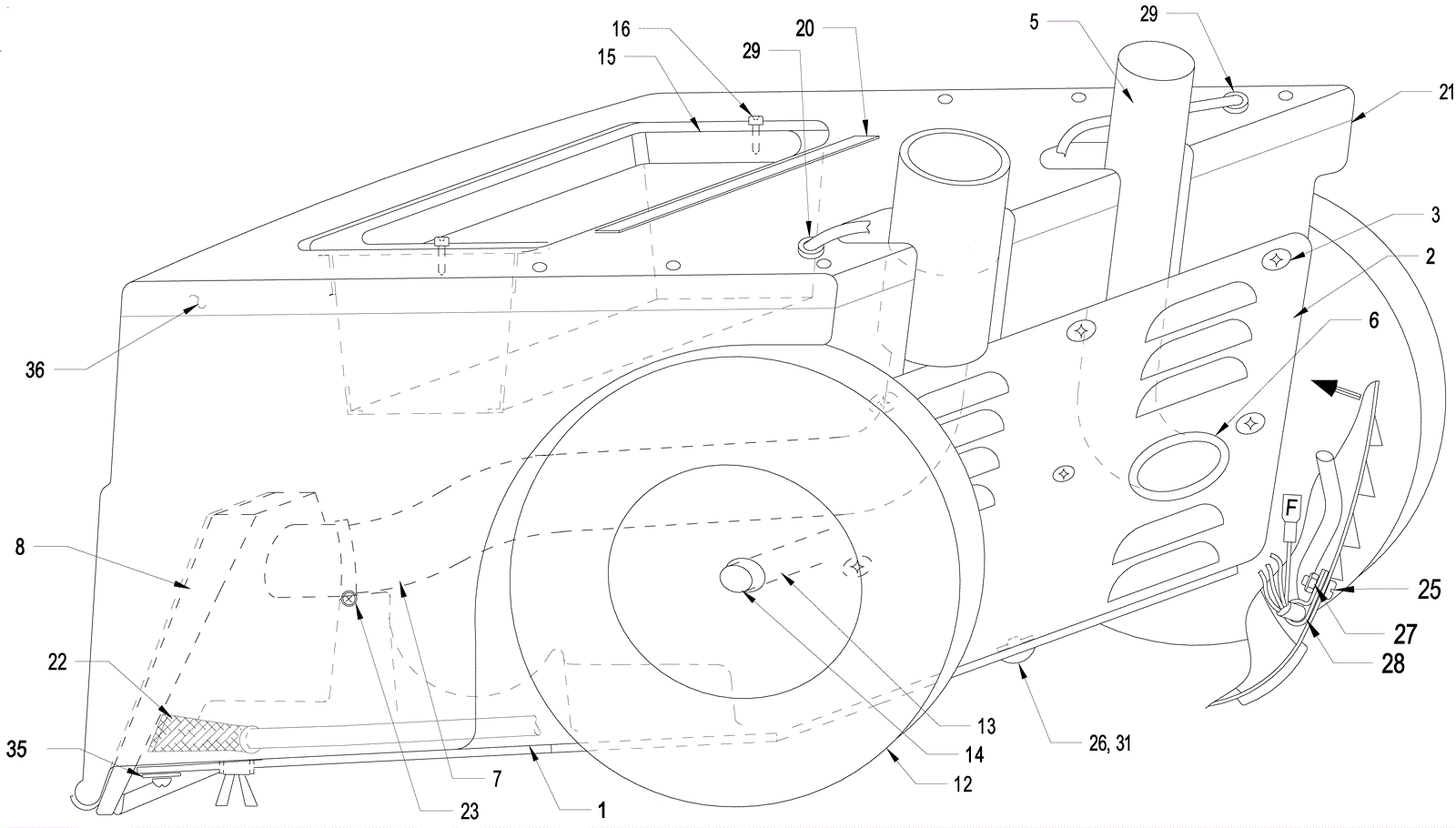

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
238-7023
|
Bottom pan with vent |
1 |
|
|
2 |
238-7024
|
Plastic vent panel (black) |
1 |
|
|
3 |
238-5176
|
Screw (OBSOLETE) |
1 |
|
|
5 |
238-5049
|
Hose |
1 |
|
|
6 |
238-5386
|
Grommet |
1 |
|
|
7 |
238-5051
|
14 inch vacuum hose |
1 |
|
|
8 |
238-7025
|
12 inch floor nozzle with ears |
1 |
|
|
12 |
238-5130
|
8 inch wheel |
2 |
|
|
13 |
238-7026
|
Axle 3/8 x 13 1/32 inch zinc plated |
1 |
|
|
14 |
238-5054
|
Hub cap |
2 |
|
|
15 |
238-5002
|
Filter basket |
1 |
|
|
16 |
238-5427
|
Screw |
2 |
|
|
20 |
238-5125
|
Mix and fill decal |
1 |
|
|
21 |
238-7027
|
Lower tank (blue) |
1 |
|
|
22 |
238-5046
|
Sump filter screen |
2 |
|
|
23 |
238-5118
|
Hose clamp |
1 |
|
|
25 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
1 |
|
|
26 |
238-5039
|
Pop rivet |
1 |
|
|
27 |
238-5304
|
Nut |
1 |
|
|
28 |
238-5370
|
Clamp |
1 |
|
|
29 |
238-5433
|
Gasket |
2 |
|
|
31 |
238-5094
|
Washer |
1 |
|
|
35 |
238-5110
|
Washer (OBSOLETE) |
8 |
|
|
36 |
238-7028
|
Seal gasket |
61 inch |
|
|
