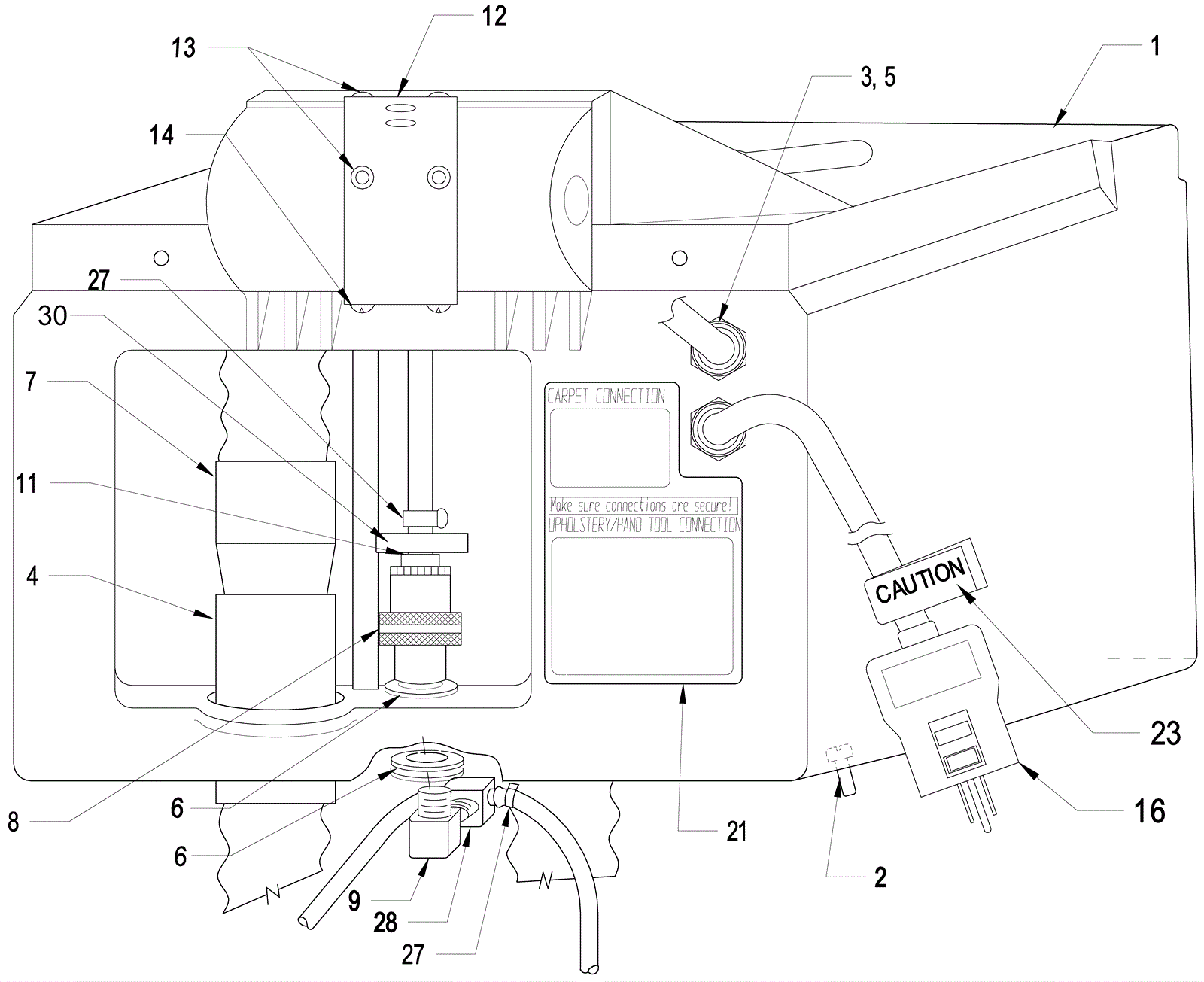

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
238-7029
|
Main support (blue) |
1 |
|
|
2 |
238-5176
|
Screw (OBSOLETE) |
7 |
|
|
3 |
238-5409
|
Bushing |
2 |
|
|
4 |
238-5126
|
Hose end |
1 |
|
|
5 |
238-5410
|
Nut |
2 |
|
|
6 |
238-5328
|
Washer |
3 |
|
|
7 |
238-5329
|
Hose end |
1 |
|
|
8 |
238-5048
|
Quick coupler |
1 |
|
|
9 |
238-5040
|
1/4 inch 90 degree elbow |
1 |
|
|
11 |
238-5330
|
Quick coupler nipple |
1 |
|
|
12 |
238-5038
|
Striker plate |
1 |
|
|
13 |
238-5039
|
Pop rivet |
4 |
|
|
14 |
238-5419
|
Screw |
2 |
|
|
16 |
238-5022
|
28 foot power cord with ALCI plug |
1 |
|
|
21 |
238-5414
|
Decal |
1 |
|
|
23 |
238-7030
|
Plug caution decal |
1 |
|
|
27 |
238-5092
|
Hose clamp |
3 |
|
|
28 |
238-7031
|
Barb tee brass |
1 |
|
|
30 |
238-5331
|
Washer |
1 |
|
|
