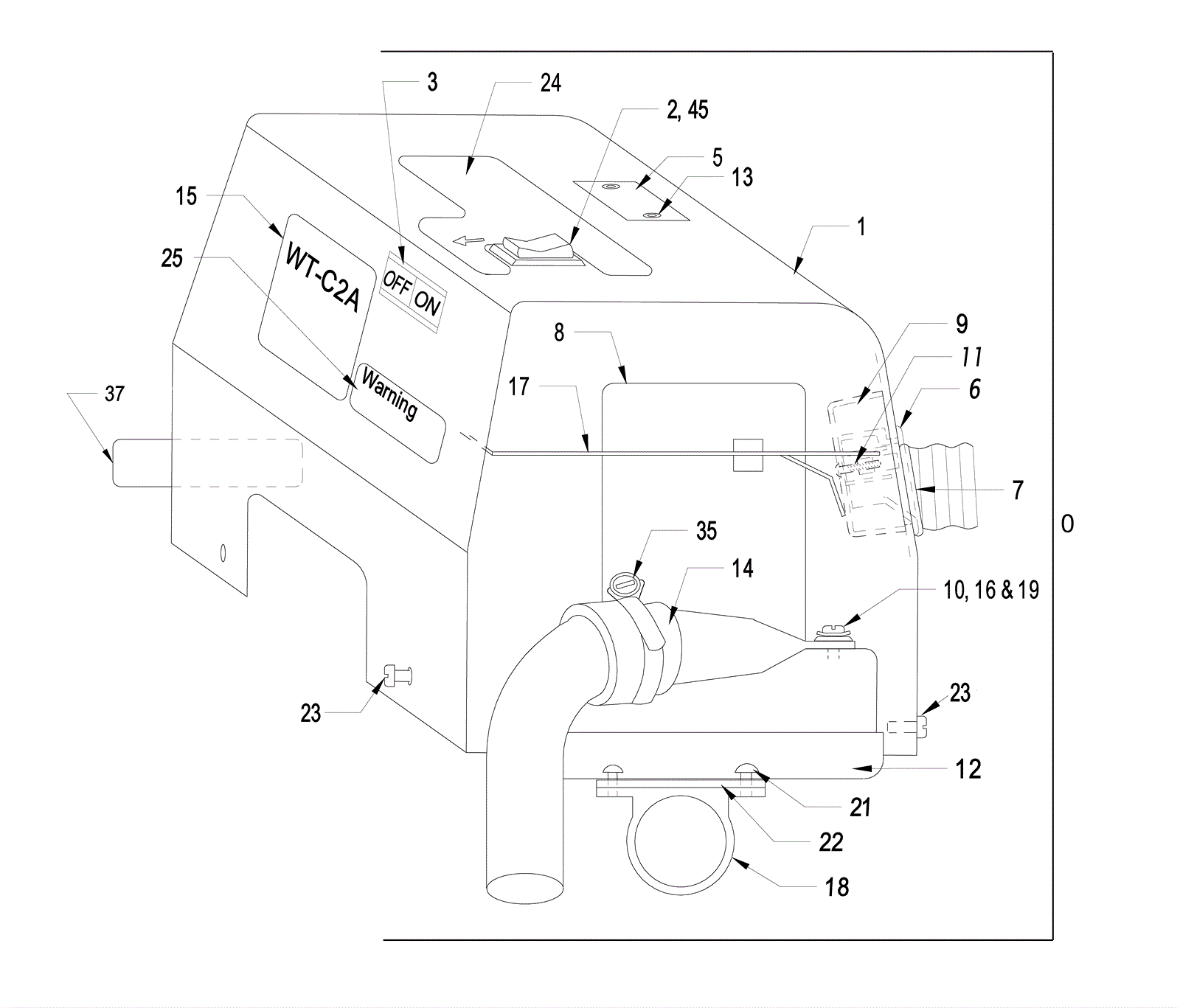

Vacuum Cover Assembly

#PartDescription ReqNotesAvailability
0 238-7035 Vacuum cover assembly 1 (includes 1-45)
1 238-7036 Vacuum cover (blue) 1
2 238-5000 Switch on/off/on 1
3 238-5010 13Amp circuit breaker 1
5 238-7037 Serial number plate 1
6 238-5385 Pull pocket front (OBSOLETE) 1
7 238-5386 Grommet 2
8a 238-5060 120V vacuum motor 1
8b 238-7038 Vacuum motor kit 1
9 238-5387 Back pocket pull (OBSOLETE) 1
10 238-5110 Washer (OBSOLETE) 3
11 238-5388 Screw #8 x 3/4 2
12 238-5061 Vacuum motor gasket 1
13 238-5389 Rivet 2
14 238-5326 Coupling 1
15 238-7039 Decal 1
16 238-5325 Washer 3
17 238-7040 Universal vacuum motor baffle 1
18 238-5321 Elbow (OBSOLETE) 1
19 238-7041 Screw 10-32 x 1 1/4 inch 3
21 238-5393 Screw 4
22 238-5322 Gasket 1
23 238-5176 Screw (OBSOLETE) 5
24 238-7042 Decal (blue) (OBSOLETE) 1
25 238-5392 Warning decal 1
35 238-5327 Hose clamp 1
37 238-5395 Decal 1
45 238-5001 Insulator 1
