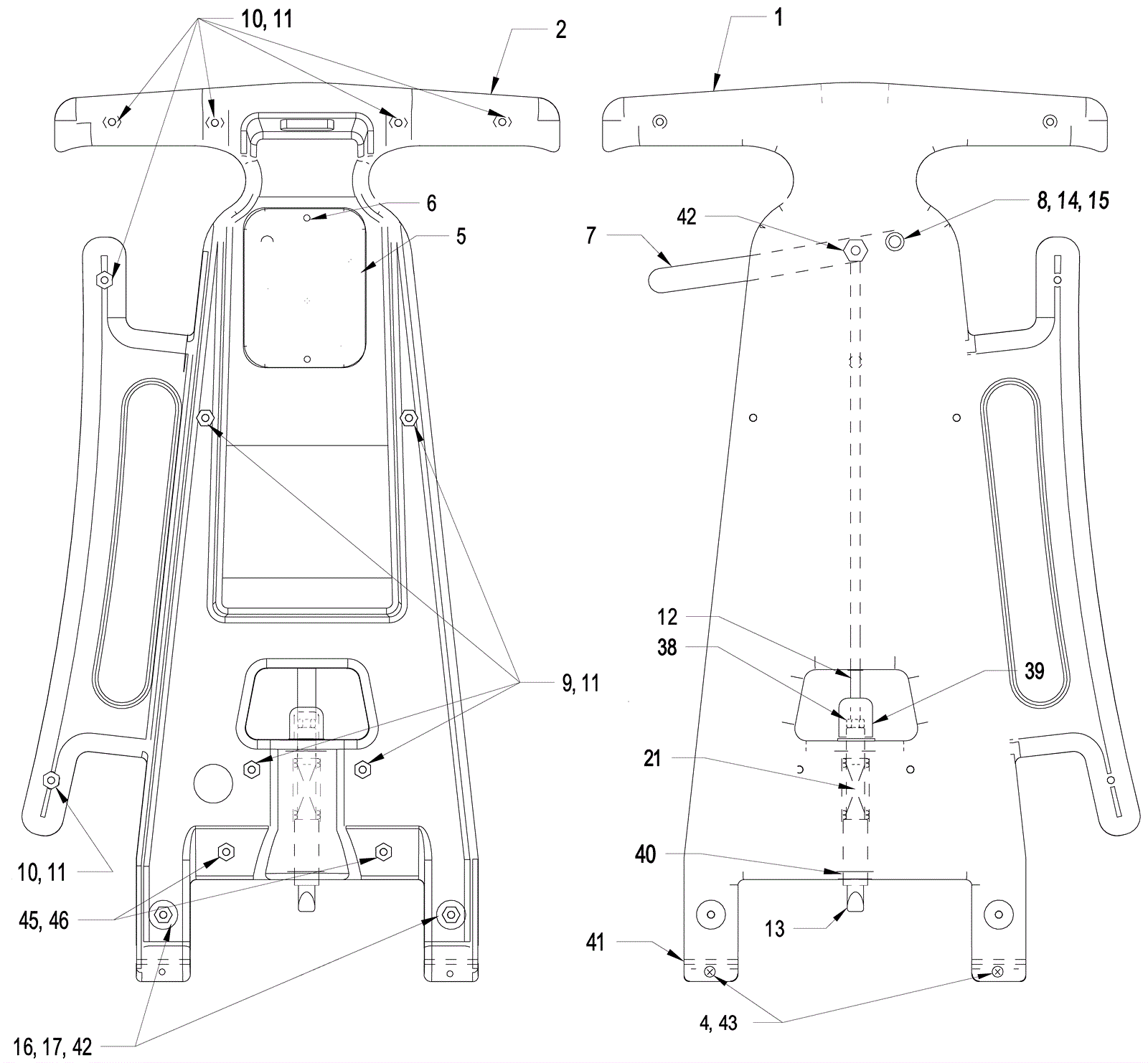

Handle Assembly Hardware

#PartDescription ReqNotesAvailability
1 238-5371 Front handle (black) 1
2 238-5372 Handle back (black)(OBSOLETE) 1
4 238-5373 Screw #6 x 1/6 2
5 238-5361 Access panel 1
6 238-5362 Screw 2
7 238-5247 Adjustment lever 1
8 238-5333 1/2 inch spacer (OBSOLETE) 1
9 238-5374 Screw 6-32 x 33mm 4
10 238-5375 Screw 6-32 x 20.5mm 8
11 238-5376 Nut 10
12 238-5045 Threaded rod (OBSOLETE) 1
13 238-5249 Threaded plunger (OBSOLETE) 1
14 238-5334 Screw 8-32 x 1 1/2 binding post (OBSOLETE) 1
15 238-5377 Loctite (blue) 1
16 238-5378 Screw 2
17 238-5110 Washer (OBSOLETE) 4
21 238-5248 Plunger spring (OBSOLETE) 1
38 238-5250 Nut 1
39 238-5365 Sleeve 1
40 238-5379 Bushing 1
41 238-5380 Bushing flange (OBSOLETE) 2
42 238-5093 Nut 3
43 238-5381 Washer 2
44 238-5382 Screw 2
45 238-7021 Screw 10-24 x 1 1/2 inch 2
46 238-7022 Nut 10-24 lock 2
