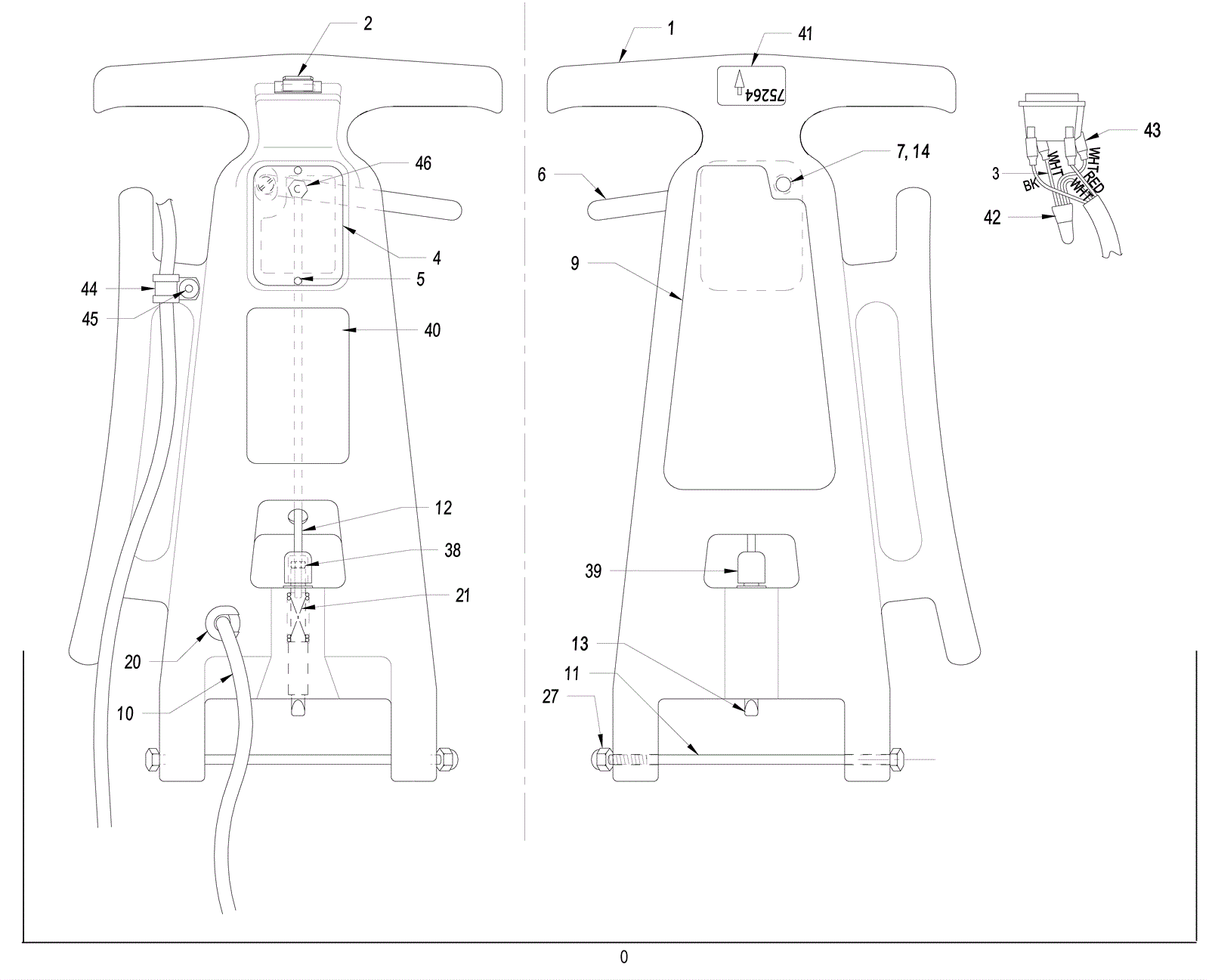

Handle Assembly

#PartDescription ReqNotesAvailability
0a 238-7020 Handle assembly 1 (without nut and bolt) (includes 1-46)
0b 238-5055 Handle assembly 1 (with nut and bolt) (includes 1-46)
1 238-5359 Handle (OBSOLETE) 1 (without cord)
2 238-5466 Push button switch 1
3 238-5360 3 inch wire (white) 2
4 238-5361 Access panel 1
5 238-5362 Screw 2
6 238-5247 Adjustment lever 1
7 238-5333 1/2 inch spacer (OBSOLETE) 1
9 238-5363 Decal 1
10 238-5021 18/3 power cord 36 inch (black) 1
11 238-5301 Bolt (OBSOLETE) 1
12 238-5045 Threaded rod (OBSOLETE) 1
13 238-5249 Threaded plunger (OBSOLETE) 1
14 238-5334 Screw 8-32 x 1 1/2 binding post (OBSOLETE) 1
20 238-5364 Bushing 1
21 238-5248 Plunger spring (OBSOLETE) 1
27 238-5302 Nut (OBSOLETE) 1
38 238-5250 Nut 1
39 238-5365 Sleeve 1
40 238-5366 Decal 1
41 238-5367 Decal 1
42 238-5368 Closed end insulation connector 1
43 238-5369 Female terminal 4
44 238-5370 Clamp 1
45 238-5039 Pop rivet 1
46 238-5093 Nut 1
