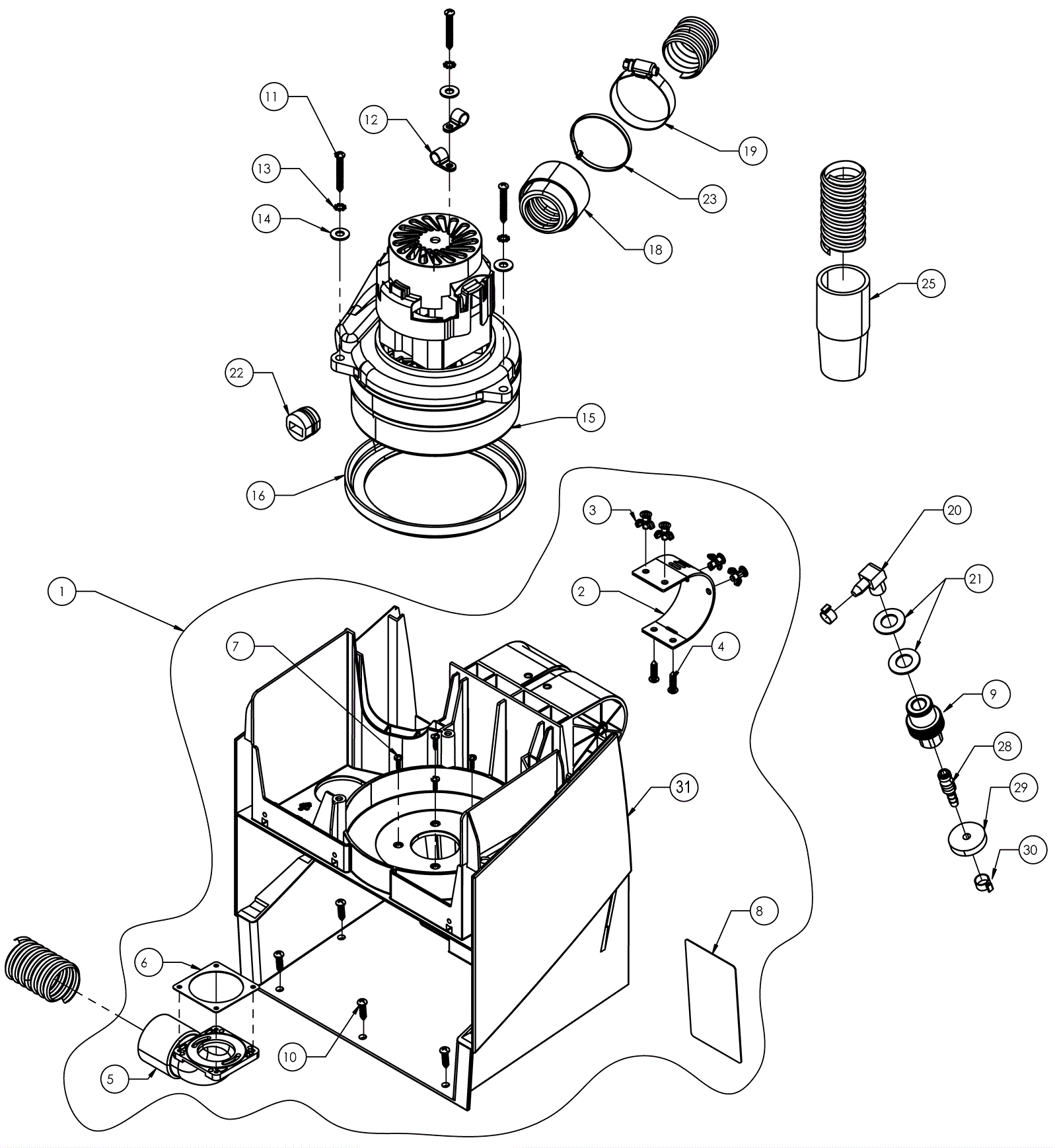

Main Support Assembly

#PartDescription ReqNotesAvailability
1 238-5318 Main support assembly 1
3 238-5039 Pop rivet 1
4 238-5070 Screw (OBSOLETE) 4
5 238-5321 Elbow (OBSOLETE) 2
6 238-5322 Gasket 1
7 238-5032 Screw 1
8 238-5323 Decal 4
9 238-5048 Quick coupler 1
10 238-5070 Screw (OBSOLETE) 1
11 238-5324 Screw (OBSOLETE) 7
12 238-5117 Cable clamp 3
13 238-5325 Washer 2
14 238-5110 Washer (OBSOLETE) 3
15 238-5060 120V vacuum motor 3
16 238-5061 Vacuum motor gasket 1
18 238-5326 Coupling 1
19 238-5327 Hose clamp 1
20 238-5041 1/4 inch elbow (OBSOLETE) 1
21 238-5328 Washer 2
22 238-5314 Grommet 1
25 238-5329 Hose end 1
28 238-5330 Quick coupler nipple 1
29 238-5331 Washer 1
30 238-5092 Hose clamp 1
31 238-5319 Main support 1
