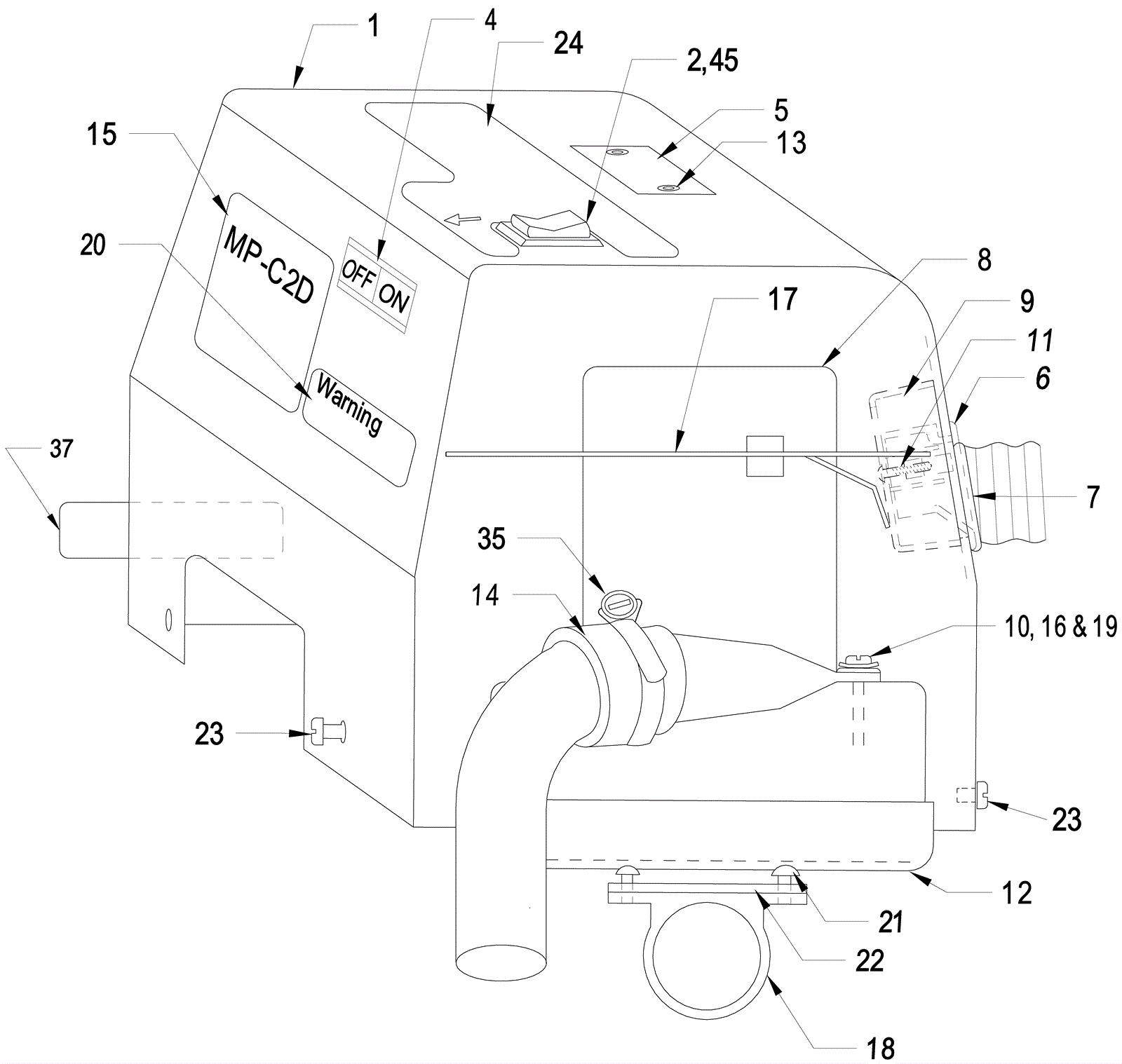

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
238-5383
|
Vacuum cover (blue) |
|
|
|
2 |
238-5000
|
Switch on/off/on |
|
|
|
4 |
238-5010
|
13Amp circuit breaker |
|
|
|
5 |
238-5384
|
Serial number plate |
|
|
|
6 |
238-5385
|
Pull pocket front (OBSOLETE) |
|
|
|
7 |
238-5386
|
Grommet |
|
|
|
8a |
238-5060
|
120V vacuum motor |
|
|
|
8b |
238-5015
|
Vacuum motor replacement kit |
|
|
|
9 |
238-5387
|
Back pocket pull (OBSOLETE) |
|
|
|
10 |
238-5110
|
Washer (OBSOLETE) |
|
|
|
11 |
238-5388
|
Screw #8 x 3/4 |
|
|
|
12 |
238-5061
|
Vacuum motor gasket |
|
|
|
13 |
238-5389
|
Rivet |
|
|
|
14 |
238-5326
|
Coupling |
|
|
|
15 |
238-5390
|
Decal |
|
|
|
16 |
238-5325
|
Washer |
|
|
|
17 |
238-5391
|
Baffle |
|
|
|
18 |
238-5321
|
Elbow (OBSOLETE) |
|
|
|
19 |
238-5378
|
Screw |
|
|
|
20 |
238-5392
|
Warning decal |
|
|
|
21 |
238-5393
|
Screw |
|
|
|
22 |
238-5322
|
Gasket |
|
|
|
23 |
238-5176
|
Screw (OBSOLETE) |
|
|
|
24 |
238-5394
|
Decal (OBSOLETE) |
|
|
|
35 |
238-5327
|
Hose clamp |
|
|
|
37 |
238-5395
|
Decal |
|
|
|
45 |
238-5001
|
Insulator |
|
|
|
