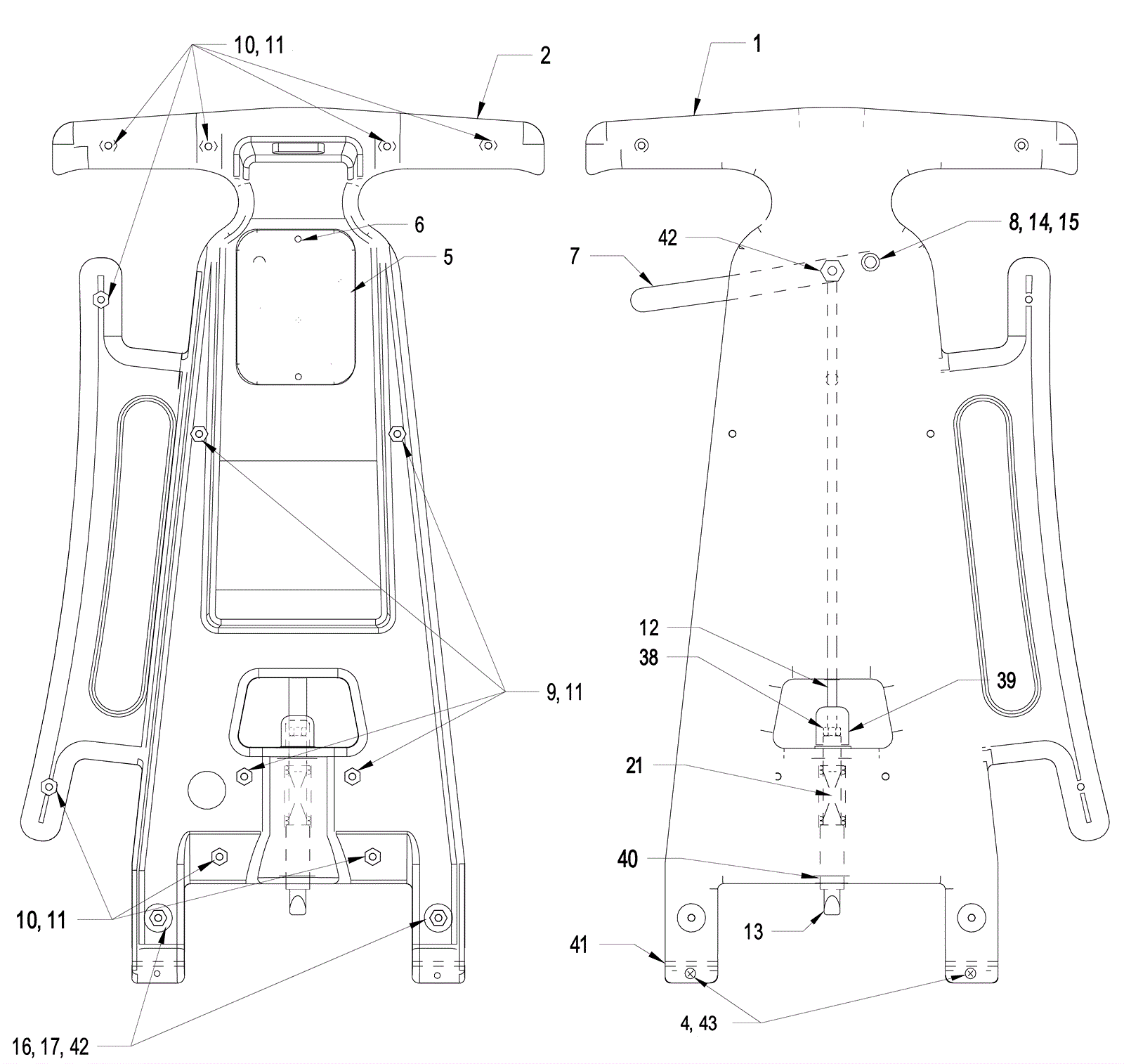

MIGHTY PRO Handle Hardware Assembly

#PartDescriptionPriceReqNotesAvailability
1 238-5371 Front handle (black) Call for price 1 usually ships 16-34 days
2 238-5372 Handle back (black) Call for price 1 usually ships 16-34 days
4 238-5373 Screw #6 x 1/6 Call for price 2 usually ships 16-34 days
5 238-5361 Access panel Call for price 1 usually ships 16-34 days
6 238-5362 Screw Call for price 2 usually ships 16-34 days
7 238-5247 Adjustment lever $1.17 1 usually ships 16-34 days
8 238-5333 1/2 inch spacer (OBSOLETE) $0.99 1 usually ships 16-34 days
9 238-5374 Screw 6-32 x 33mm Call for price 4 usually ships 16-34 days
10 238-5375 Screw 6-32 x 20.5mm Call for price 8 usually ships 16-34 days
11 238-5376 Nut Call for price 12 usually ships 16-34 days
12 238-5045 Threaded rod $2.68 1 usually ships 16-34 days
13 238-5249 Threaded plunger (OBSOLETE) $3.54 1 usually ships 16-34 days
14 238-5334 Screw 8-32 x 1 1/2 binding post (OBSOLETE) $1.50 1 usually ships 16-34 days
15 238-5377 Loctite (blue) Call for price usually ships 16-34 days
16 238-5378 Screw Call for price 2 usually ships 16-34 days
17 238-5110 Washer (OBSOLETE) $0.99 4 usually ships 16-34 days
21 238-5248 Plunger spring (OBSOLETE) $0.99 1 usually ships 16-34 days
38 238-5250 Nut $0.99 1 usually ships 16-34 days
39 238-5365 Sleeve Call for price 1 usually ships 16-34 days
40 238-5379 Bushing Call for price 1 usually ships 16-34 days
41 238-5380 Bushing flange (OBSOLETE) Call for price 2 usually ships 16-34 days
42 238-5093 Nut $0.99 3 usually ships 16-34 days
43 238-5381 Washer Call for price 2 usually ships 16-34 days
44 238-5382 Screw Call for price 2 usually ships 16-34 days
