DELUXE D-104

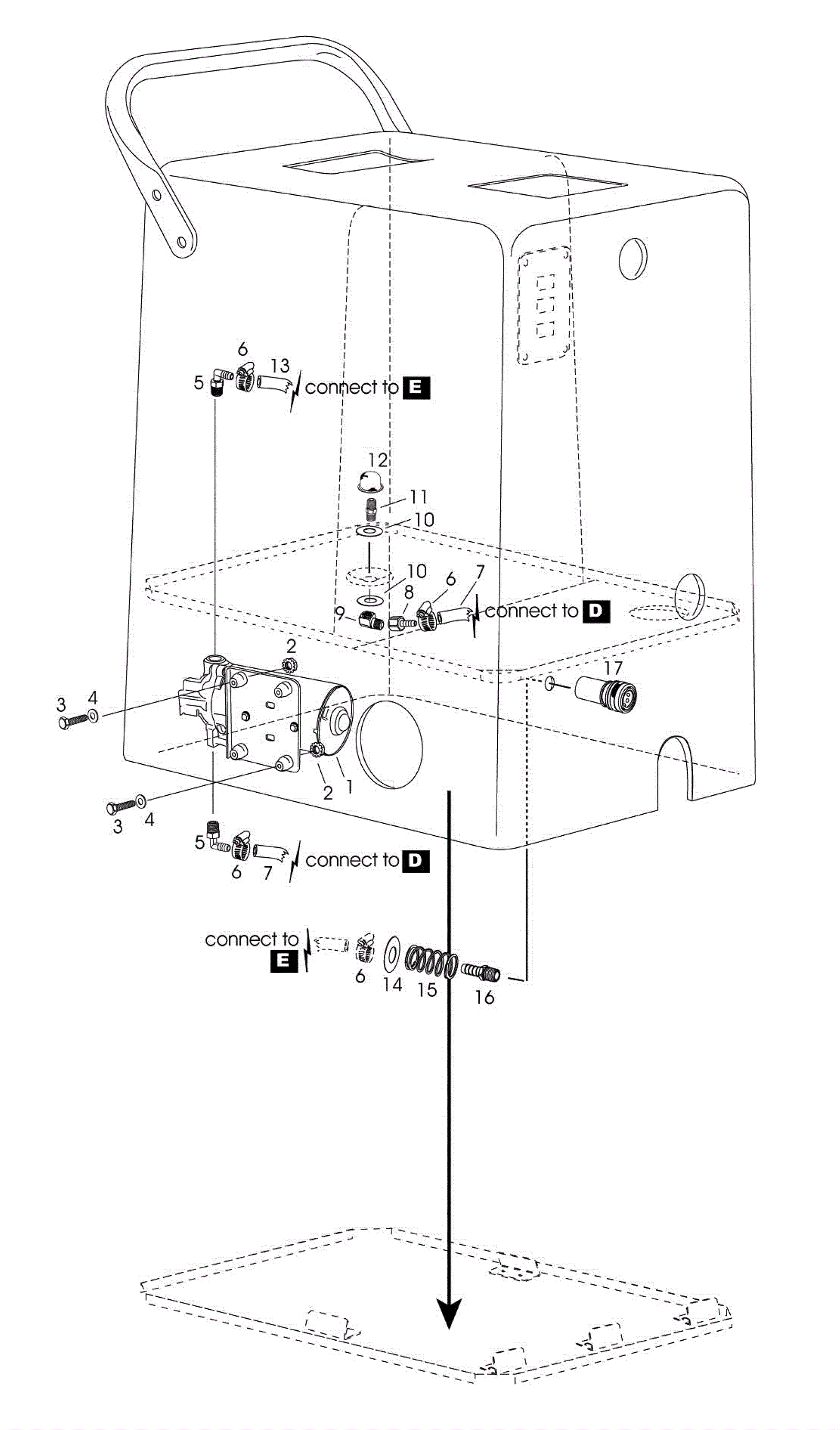

Pump Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
237-0189
115V pump
$267.41
1
usually ships 9-35 days
2
237-0036
Nut 1/4 x 20
$0.99
2
usually ships 9-35 days
3
237-0149
Screw
$0.99
2
usually ships 9-35 days
4
237-0081
Washer
$0.99
2
usually ships 9-35 days
5
237-0162
90 degree elbow
$0.99
2
usually ships 9-35 days
6
237-0190
P clamp
$2.93
4
usually ships 9-35 days
7
237-0161
Hose (sold per foot)
$1.52
1
usually ships 9-35 days
8
237-0191
Hose barb
$6.79
1
usually ships 9-35 days
9
237-0158
90 degree street elbow
$5.50
1
usually ships 9-35 days
10
237-0048
Washer
$2.13
2
usually ships 9-35 days
11
237-0157
Close nipple
$3.63
1
usually ships 9-35 days
12
237-0155
Filter screen
$7.88
1
usually ships 9-35 days
13
237-0161
Hose (sold per foot)
$1.52
1
usually ships 9-35 days
14
237-0164
Fender washer
Call for price
1
usually ships 9-35 days
15
237-0165
Mounting spring
$5.50
1
usually ships 9-35 days
16
237-0192
Hose barb
$5.24
1
usually ships 9-35 days
17
237-0166
Brass coupler
$25.36
1
usually ships 9-35 days
