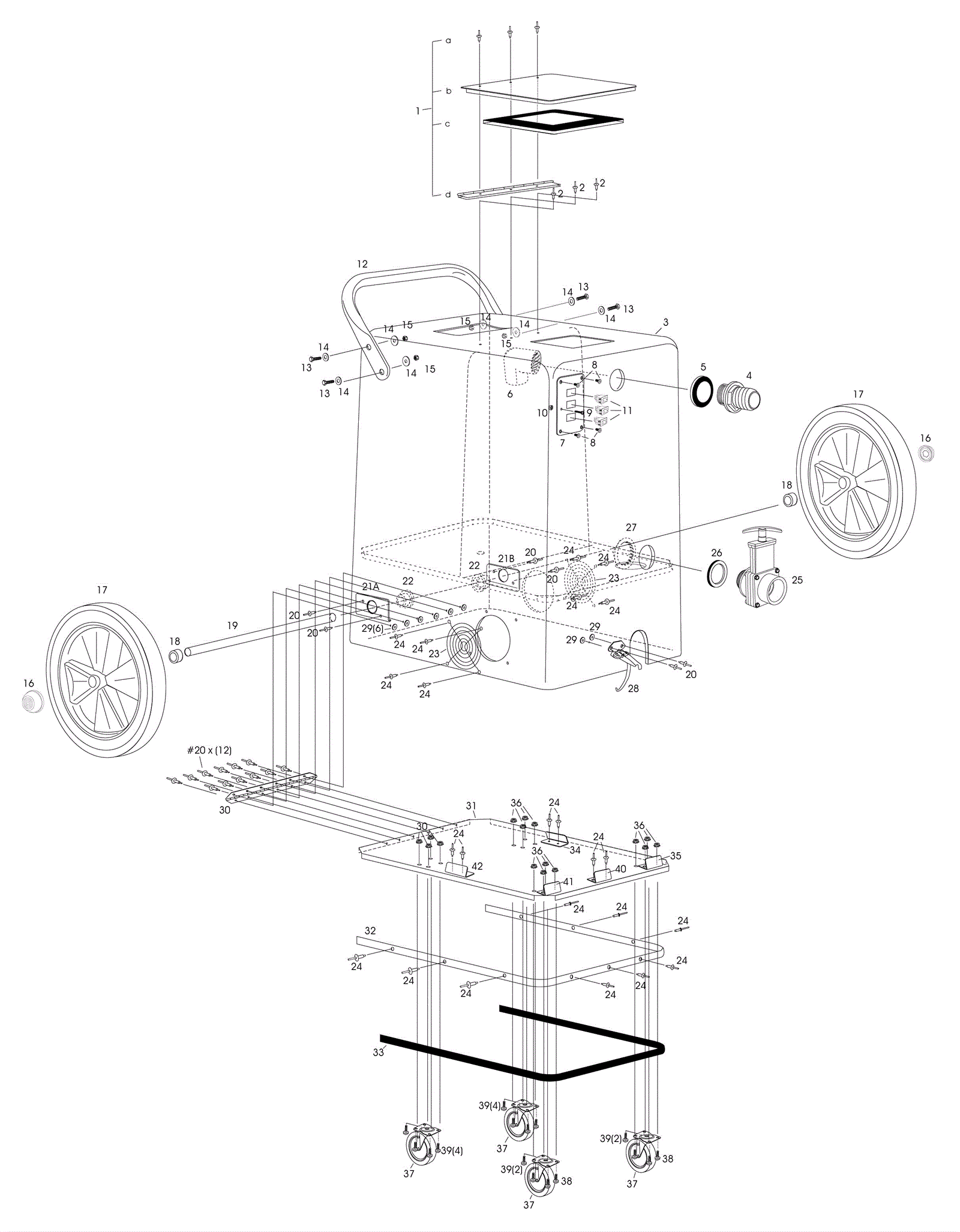

DELUXE D-104 Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1a 237-0151 Lid $124.98 1 (includes 1b-1e) usually ships 9-35 days
1b 237-0069 Rivet $0.99 3 usually ships 9-35 days
1c 237-0070 Lid Call for price 1 usually ships 9-35 days
1d 237-0071 Lid gasket $30.44 1 usually ships 9-35 days
1e 237-0072 Hinge $12.32 1 usually ships 9-35 days
2 237-0074 Rivet $0.99 3 usually ships 9-35 days
3 237-0187 Housing $834.50 1 usually ships 9-35 days
4 237-0026 Hosebarb with flange $3.23 1 usually ships 9-35 days
5 237-0075 Gasket $1.28 1 usually ships 9-35 days
6 237-0154 90 degree elbow $5.50 1 usually ships 9-35 days
7 237-0186 Switch plate with 3 switches $15.16 1 usually ships 9-35 days
8 237-0089 Screw $0.99 4 usually ships 9-35 days
9 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
10 237-0037 Nut 10 x 32 zinc $0.99 1 usually ships 9-35 days
11 237-0016 On/off switch $7.24 3 usually ships 9-35 days
12 237-0080 Stationary handle $70.73 1 usually ships 9-35 days
13 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 4 ships same day
14 237-0081 Washer $0.99 8 usually ships 9-35 days
15 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
16 237-0188 1/2 inch axle end cap $3.28 2 usually ships 9-35 days
17 237-0150 Non-marking wheel $70.24 2 usually ships 9-35 days
18 237-0092 Spacer $0.99 2 usually ships 9-35 days
19 237-0093 Axle $36.82 1 usually ships 9-35 days
20 237-0094 Rivet $0.99 16 usually ships 9-35 days
21a 237-0095 Right hand axle bracket $8.91 1 usually ships 9-35 days
21b 237-0096 Left hand axle bracket $8.91 1 usually ships 9-35 days
22 237-0097 Bearing with flange $11.57 2 usually ships 9-35 days
23 237-0103 Fan screen $8.18 2 usually ships 9-35 days
24 237-0028 Rivet $0.99 23 usually ships 9-35 days
25 237-0098 Valve $24.20 1 usually ships 9-35 days
26 237-0079 Gasket $2.33 1 usually ships 9-35 days
27 237-0099 Lock nut $2.79 1 usually ships 9-35 days
28 237-0100 Draw latch $14.77 1 usually ships 9-35 days
29 237-0101 Washer $0.99 8 usually ships 9-35 days
30 237-0105 Hinge $14.61 1 usually ships 9-35 days
31 237-0106 Plate $262.93 1 usually ships 9-35 days
32 237-0107 Bumper guard $26.46 1 usually ships 9-35 days
33 237-0108 Molding (sold by the foot) $5.79 1 usually ships 9-35 days
34 237-0109 Left hand side alignment bracket $15.35 1 usually ships 9-35 days
35 237-0111 Left hand front alignment bracket $16.52 1 usually ships 9-35 days
36 237-0036 Nut 1/4 x 20 $0.99 16 usually ships 9-35 days
37 237-0175 Non-marking swivel caster $26.64 4 usually ships 9-35 days
38 237-0123 Bolt 1/4-20 x 3/4 $0.99 4 usually ships 9-35 days
39 237-0113 Bolt 1/4-20 x 1/2 $0.99 12 usually ships 9-35 days
40 237-0114 Front alignment bracket $9.76 1 usually ships 9-35 days
41 237-0112 Right hand front alignment bracket $16.52 1 usually ships 9-35 days
42 237-0110 Right hand side alignment bracket $15.35 1 usually ships 9-35 days
