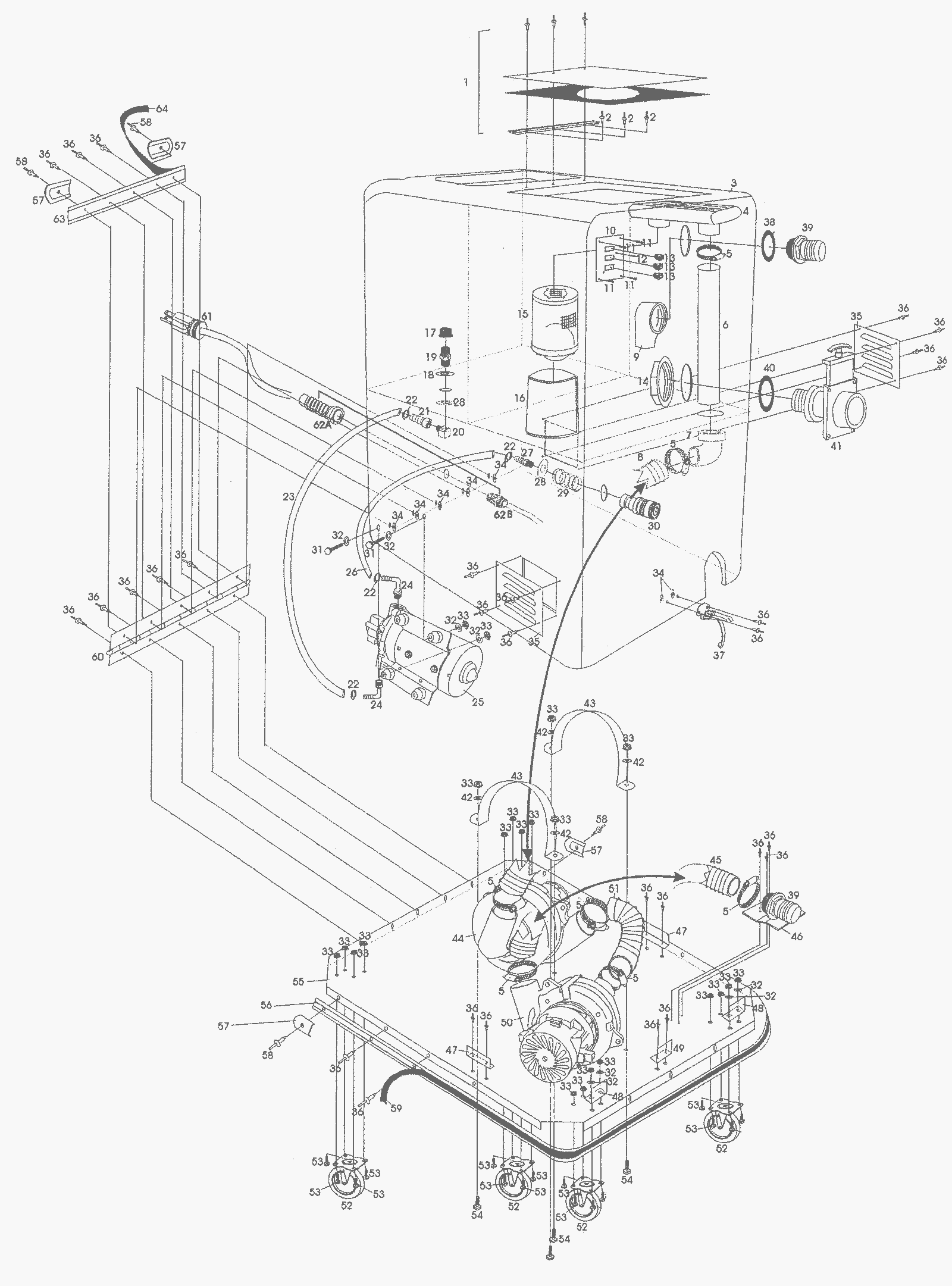

Entire Assembly

#PartDescription ReqNotesAvailability
1a 237-0151 Lid 1
1b 237-0069 Rivet 3
1c 237-0070 Lid 1
1d 237-0071 Lid gasket 1
1e 237-0072 Hinge 1
2 237-0074 Rivet 3
3 237-0153 Fiberglass tank 1
4 237-0038 Ball float duct 1
5 237-0030 Clamp 6
6 237-0040 Pipe 1
7 237-0041 90 degree flanged adapter 1
8 237-0031 Vacuum hose (sold per foot) 1
9 237-0154 90 degree elbow 1
10 237-0180 Switch plate 1
11 237-0089 Screw 4
12 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 1
13 237-0016 On/off switch 3
14 237-0099 Lock nut 1
15 237-0021 Ball float 1
16 237-0132 Ball float cage filter 1
17 237-0155 Filter screen 1
18 237-0048 Washer 1
19 237-0157 Close nipple 1
20 237-0158 90 degree street elbow 1
21 237-0159 Hose barb 1
22 237-0160 Hose clamp 2
23 237-0161 Hose (sold per foot) 1
24 237-0162 90 degree elbow 2
25a 237-0163 60PSI pump 1 (B-106 only)
25b 237-0005 Pump (OBSOLETE) 1 (B-107 only)
26 237-0161 Hose (sold per foot) 1
27 237-0178 Hose barb 1
28 237-0164 Fender washer 1
29 237-0165 Mounting spring 2
30 237-0166 Brass coupler 11
31 237-0167 Bolt 2
32 237-0081 Washer 8
33 237-0036 Nut 1/4 x 20 22
34 237-0101 Washer 7
35 237-0168 Vent plate 2
36 237-0028 Rivet 34
37 237-0100 Draw latch 1
38 237-0075 Gasket 1
39 237-0026 Hosebarb with flange 2
40 237-0079 Gasket 1
41 237-0098 Valve 1
42 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 4
43 237-0035 Vacuum strap 2
44 237-0001 2 stage vac motor w/90deg ADP CL 1
45 237-0031 Vacuum hose (sold per foot) 1
46 237-0027 Exhaust bracket 1
47 237-0169 Side alignment bracket 2
48 237-0170 Front side alignment bracket 2
49 237-0114 Front alignment bracket 1
51 237-0031 Vacuum hose (sold per foot) 1
52 237-0175 Non-marking swivel caster 4
53a 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 12
53b 237-0123 Bolt 1/4-20 x 3/4 4
54 999-6667 Bolt 1/4-20 x 1 hex zinc 4
55 237-0184 Base 1
56 237-0107 Bumper guard 1
57 237-0185 End cap 4
58 237-0094 Rivet 17
59 N/A Not available 1 (Bumper insert)
60 237-0105 Hinge 1
61 237-0124 12/3 power cord 25 foot (yellow) 1
62 237-0057 Cord retainer 1
63 237-0107 Bumper guard 1
