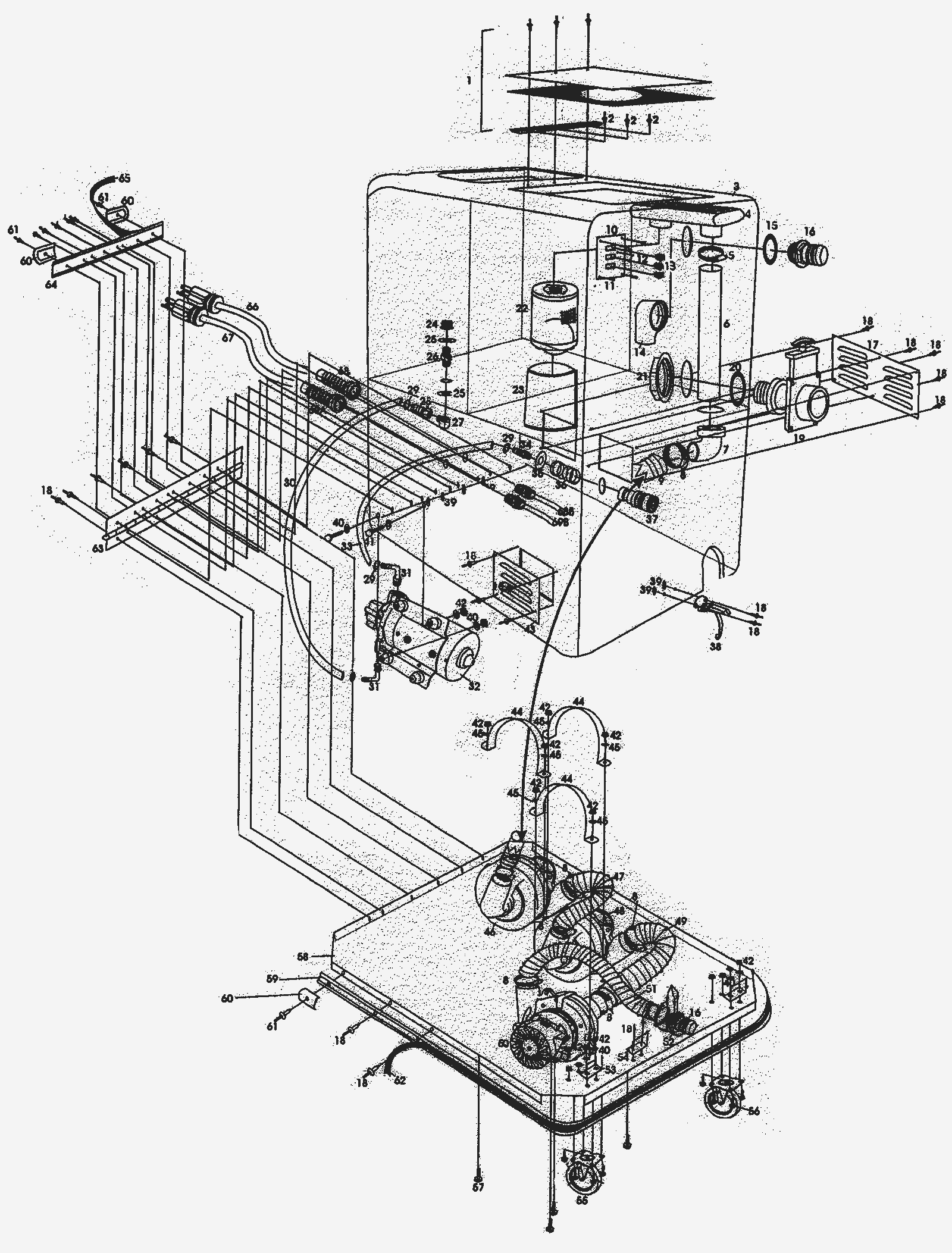

Entire Assembly

#PartDescription ReqNotesAvailability
1a 237-0151 Lid 1
1b 237-0069 Rivet 3
1c 237-0070 Lid 1
1d 237-0071 Lid gasket 1
1e 237-0072 Hinge 1
2 237-0074 Rivet 3
3 237-0187 Housing 1
4 237-0038 Ball float duct 1
5 237-0193 Clamp 1
6 237-0194 Stand pipe 1
7 237-0041 90 degree flanged adapter 1
8 237-0030 Clamp 8
9 237-0031 Vacuum hose (sold per foot) 1
10 237-0186 Switch plate with 3 switches 1
11 237-0089 Screw 4
12 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 1
13 237-0016 On/off switch 3
14 237-0154 90 degree elbow 1
15 237-0075 Gasket 1
16 237-0026 Hosebarb with flange 2
17 237-0195 Large vent plate 1
18 237-0028 Rivet 40
19 237-0098 Valve 1
20 237-0079 Gasket 1
21 237-0099 Lock nut 1
22 237-0021 Ball float 1
23 237-0132 Ball float cage filter 1
24 237-0155 Filter screen 1
25 237-0196 Flat washer 1
26 237-0157 Close nipple 1
27 237-0158 90 degree street elbow 1
28 237-0159 Hose barb 1
29 237-0160 Hose clamp 4
30 237-0161 Hose (sold per foot) 1
31 237-0162 90 degree elbow 2
32 237-0197 115V 100PSI pump 1
33 237-0161 Hose (sold per foot) 1
34 237-0178 Hose barb 1
35 237-0164 Fender washer 2
36 237-0165 Mounting spring 1
37 237-0166 Brass coupler 1
38 237-0100 Draw latch 1
39 237-0101 Washer 6
40 237-0081 Washer 6
41 237-0167 Bolt 2
42 237-0198 Nut 24
43 237-0168 Vent plate 2
44 237-0035 Vacuum strap 3
45 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 6
46 237-0199 2 stage vacuum motor 1
47 237-0031 Vacuum hose (sold per foot) 1
48 237-0199 2 stage vacuum motor 1
49 237-0031 Vacuum hose (sold per foot) 1
50 237-0200 2 stage vacuum motor clam insert 1
51 237-0031 Vacuum hose (sold per foot) 1
52 237-0027 Exhaust bracket 1
53 237-0170 Front side alignment bracket 2
54 237-0114 Front alignment bracket 1
55 237-0175 Non-marking swivel caster 2
56 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 8
57 999-6667 Bolt 1/4-20 x 1 hex zinc 6
58 237-0201 Base 1
59 237-0107 Bumper guard 1
60 237-0185 End cap 4
61 237-0094 Rivet 4
62 N/A Not available 1
63 237-0105 Hinge 1
64 237-0107 Bumper guard 1
65 N/A Not available 1
66 237-0002 Power cord 25ft 1
67 237-0124 12/3 power cord 25 foot (yellow) 1
68 237-0057 Cord retainer 1
