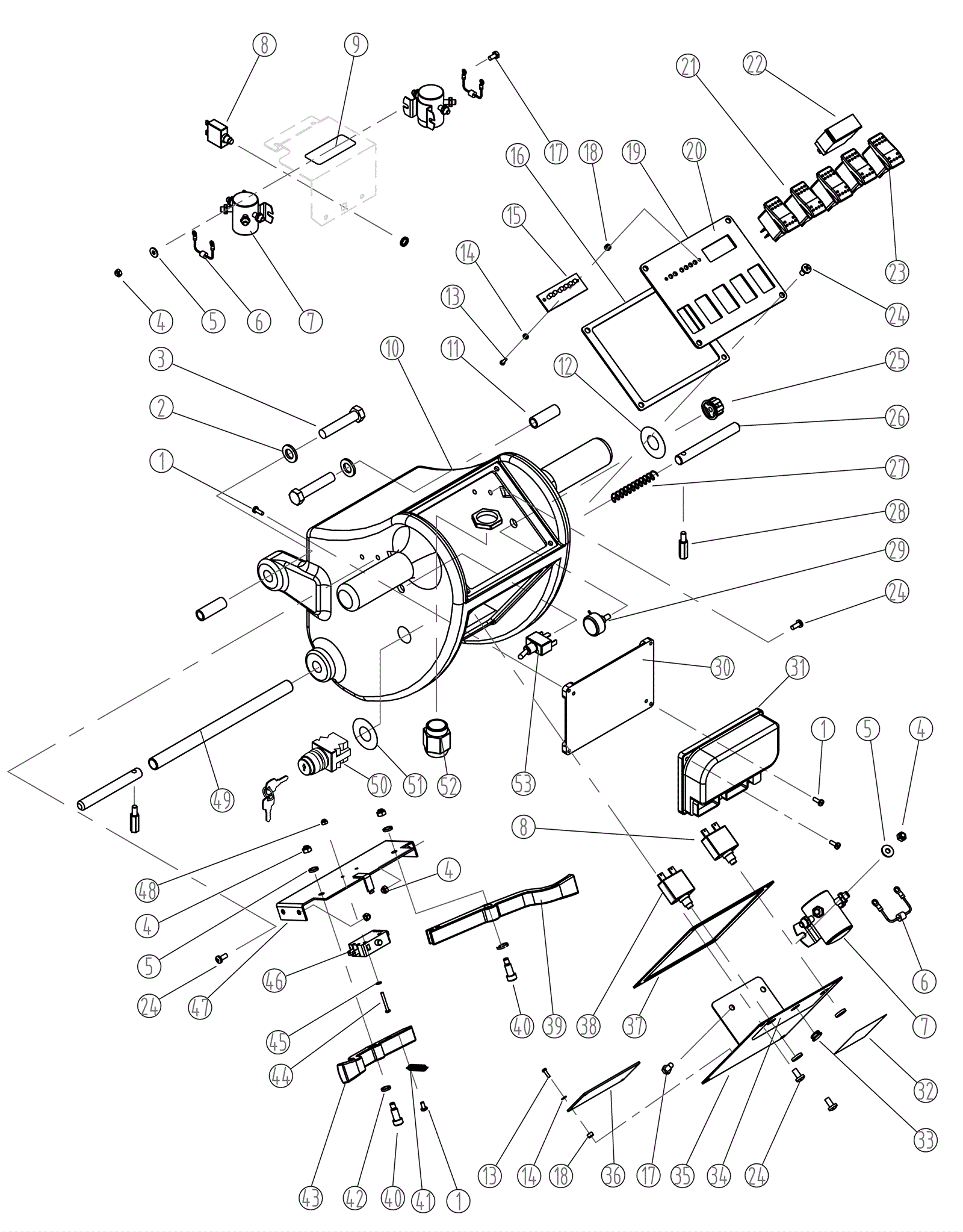

14X831 Control Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0393 Screw M4 x 12mm $6.36 7 ships same day
2 240-0365 Washer M10 plain finish $9.98 2 usually ships 1-5 days
3 240-0366 Screw M10 x 65mm $9.98 2 usually ships 16-41 days
4 235-0108 Nut Call for price 10 usually ships 3-10 days
5 240-0367 Washer M6 plain finish $9.98 6 usually ships 16-41 days
6a 240-2106 Diode with ends (OBSOLETE) $7.37 3 usually ships 16-41 days
7 240-0314 Solenoid $103.00 3 usually ships 16-41 days
8 240-0368 35amp circuit breaker $19.98 2 usually ships 16-41 days
9 240-0369 Circuit breaker decal $9.98 1 usually ships 1-5 days
10 240-0407 Control housing $262.47 1 usually ships 1-5 days
11 240-0356 Bushing $9.98 2 usually ships 16-41 days
12 240-0333 Speed control decal $13.17 1 usually ships 1-5 days
13 240-0370 Screw M3 x 10mm $9.98 6 usually ships 1-5 days
14 240-0371 Washer M3 plain finish $9.98 6 usually ships 16-41 days
15 240-0372 Battery capacity light plate $27.92 1 usually ships 16-41 days
16 240-0373 Gasket $28.41 1 usually ships 16-41 days
17 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
18 240-0374 Spacer $9.98 6 usually ships 1-5 days
19 240-0949 Switch panel $14.91 1 usually ships 16-41 days
20 235-0229 Switch decal Call for price 1 usually ships 3-10 days
21 240-0290 Lighted rocker switch $41.54 4 usually ships 16-41 days
22 240-0716 Brush pressure gauge $104.14 1 usually ships 16-41 days
23 240-0696 Brush switch $44.58 1 usually ships 16-41 days
24 240-0377 Screw M6 x 16mm $9.98 12 usually ships 16-41 days
25 235-0233 Speed control knob $9.98 1 usually ships 16-41 days
26 240-0378 Handle lock pin $9.98 2 usually ships 1-5 days
27 240-0379 Spring $9.98 1 usually ships 1-5 days
28 240-0380 Handle adjustment pin $9.98 2 usually ships 1-5 days
29 240-0419 4.7K potentiometer with wiring harness $33.43 1 ships same day
30 240-0420 Plate $29.52 1 usually ships 1-5 days
31 240-0421 Speed control board $533.16 1 usually ships 16-41 days
32 235-0240 Serial tag Call for price 1 usually ships 3-10 days
33 240-0385 Cover $18.94 1 usually ships 16-41 days
34 240-0387 Circuit breaker decal $9.98 1 usually ships 16-41 days
35 240-0955 Control panel housing $31.10 1 usually ships 16-41 days
36 240-0388 Control board (battery capacity) $134.98 1 ships same day
37 240-0383 Gasket $9.98 1 usually ships 16-41 days
38 240-0114 Circuit breaker $19.98 1 usually ships 16-41 days
39 240-0390 Right hand trigger (black) $18.08 1 usually ships 16-41 days
40 240-0391 Bolt M8 x 15mm shoulder $9.98 2 usually ships 16-41 days
41 240-0392 Spring $9.98 1 usually ships 16-41 days
42 240-0394 Washer M8 plain finish $9.98 2 usually ships 16-41 days
43 240-0396 Left hand trigger (black) $10.77 1 usually ships 16-41 days
45 240-0100 Internal tooth lock washer $9.98 2 usually ships 16-41 days
46 240-0008 On/Off switch $36.32 1 ships same day
47 240-0956 Switch bracket $16.50 1 usually ships 16-41 days
48 240-0398 Nut M3 locking $9.98 2 usually ships 1-5 days
49 240-0399 Handle adjustment tube $13.17 1 usually ships 1-5 days
50 240-0276 Key switch kit $34.87 1 usually ships 16-41 days
51 240-0730 Key switch decal $13.17 1 usually ships 16-41 days
52 240-5817 STRAIN RELIEF CORD $9.98 1 usually ships 16-41 days
53 240-0424 Toggle switch $18.08 1 ships same day
