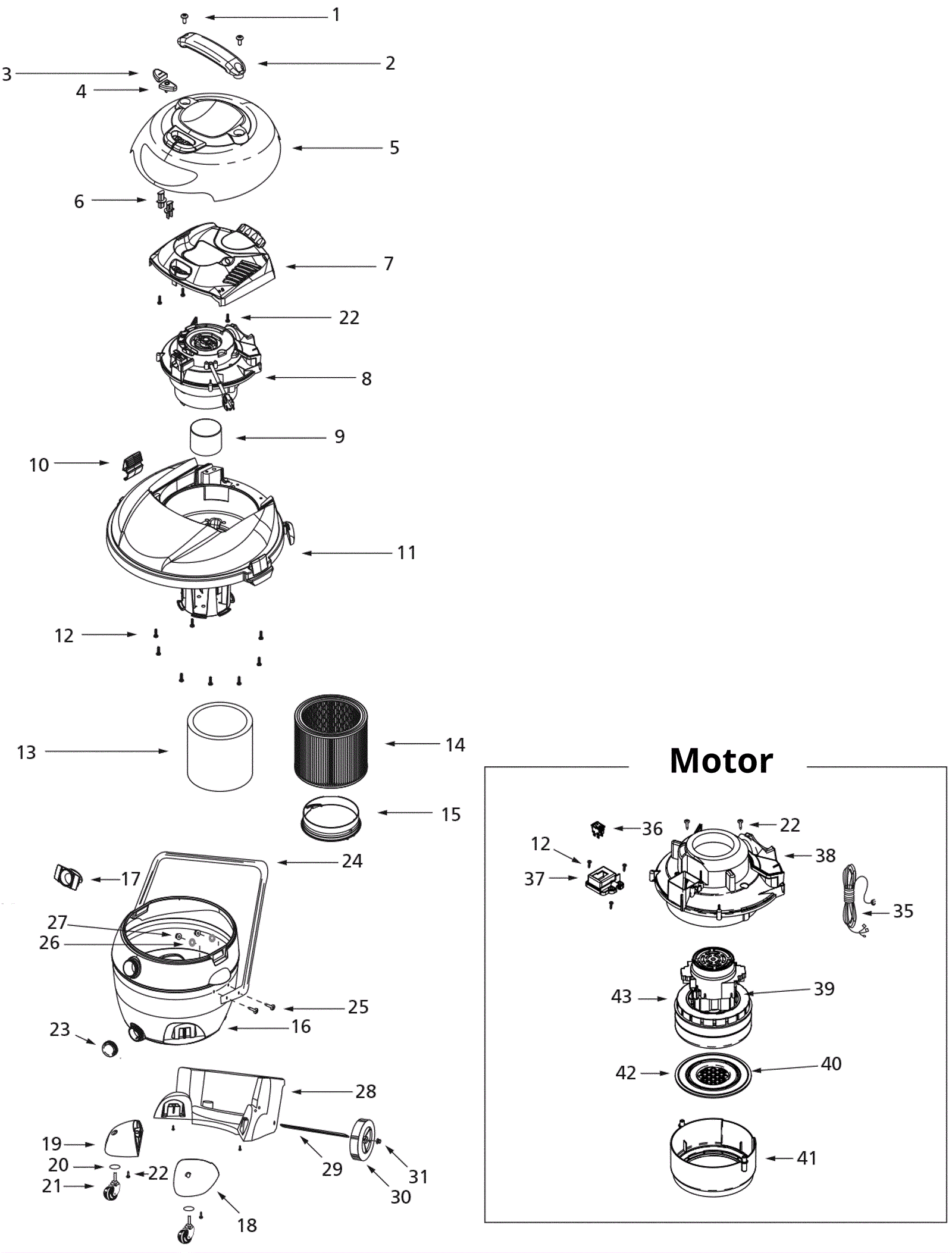

4TB85 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 235-0350 Screw 1 1/2 inch pan head (OBSOLETE) Call for price 2 usually ships 6-7 days
2 235-0351 Handle (OBSOLETE) Call for price 1 usually ships 6-7 days
3 235-0021 On switch $30.60 1 usually ships 1-5 days
4 235-0020 Off switch (OBSOLETE) $30.60 1 usually ships 6-7 days
5 235-0352 Outer motor cover assembly (OBSOLETE) Call for price 1 usually ships 6-7 days
6 235-0353 Switch button extension $6.58 2 usually ships 6-7 days
7 235-0354 Inner motor cover (OBSOLETE) Call for price 1 usually ships 6-7 days
8 235-0355 Power unit assembly (OBSOLETE) Call for price 1 (includes 22, 35, 37-43) usually ships 6-7 days
9 228-7096 Float (OBSOLETE) Call for price 1 usually ships 12-13 days
10 228-7081 Lid latch (OBSOLETE) $2.75 2 usually ships 12-13 days
11 235-0356 Lid cage and latch assembly (OBSOLETE) Call for price 1 usually ships 6-7 days
12 228-7094 Screw 10 x 3/4 trilobe twin lead (OBSOLETE) $1.10 8 usually ships 12-13 days
13 228-7098 Foam sleeve (OBSOLETE) $6.29 1 usually ships 6-7 days
14 235-0379 Cartridge filter $53.08 1 usually ships 6-7 days
15 228-7027 Filter retainer (OBSOLETE) $7.55 1 usually ships 6-7 days
16 235-0357 Tank assembly (OBSOLETE) Call for price 1 usually ships 6-7 days
17 228-7099 Inlet deflector (OBSOLETE) $1.10 1 usually ships 12-13 days
20 228-7670 Flat washer (OBSOLETE) $6.88 2 usually ships 12-13 days
21 228-7006 Caster (OBSOLETE) $1.75 2 usually ships 12-13 days
22 228-7044 Screw #10 x 3/4 hex head (OBSOLETE) $1.10 9 usually ships 12-13 days
23 228-7101 Drain cover $12.84 1 ships same day
24 235-0298 Carriage Handle $47.03 1 usually ships 6-7 days
25 235-0358 Screw 1/4-20 x 3/4 inch slotted thread (OBSOLETE) Call for price 4 usually ships 6-7 days
26 235-0359 Sealing washer (OBSOLETE) Call for price 4 usually ships 6-7 days
27 999-6700 Nut 1/4-20 heavy jam lock $0.99 4 ships same day
28 228-7146 Rear dolly basket (OBSOLETE) Call for price 1 usually ships 12-13 days
29 228-7049 Axle Call for price 1 usually ships 1-5 days
30 228-7007 8 inch wheel (black) Call for price 2 usually ships 1-5 days
31 228-7149 Cap nut (OBSOLETE) Call for price 2 usually ships 12-13 days
35 235-0362 Power cord (OBSOLETE) Call for price 1 usually ships 6-7 days
36 235-0363 Switch and actuator (OBSOLETE) Call for price 1 usually ships 6-7 days
37 235-0364 Switch box (OBSOLETE) Call for price 1 usually ships 6-7 days
38 235-0365 Motor housing (OBSOLETE) Call for price 1 usually ships 6-7 days
39 228-7684 Upper motor gasket (OBSOLETE) $2.64 1 usually ships 12-13 days
40 235-0366 Lower motor gasket (OBSOLETE) Call for price 1 usually ships 6-7 days
41 235-0367 Diffuser (OBSOLETE) Call for price 1 usually ships 6-7 days
42 235-0368 Grid plate (OBSOLETE) Call for price 1 usually ships 6-7 days
43a 992-3114 120V 2 stage vacuum motor $188.10 1 usually ships 6-7 days
43b 235-0333 Motor/power unit Call for price 1 usually ships 6-7 days
N/S 235-0370 10 foot x 1 1/2 inch hose (OBSOLETE) Call for price 1 usually ships 6-7 days
N/S 992-0142 Upper metal wand $84.22 1 usually ships 1-5 days
N/S 992-0143 Lower metal wand (OBSOLETE) $87.41 1 usually ships 1-5 days
N/S 235-0373 14 inch floor nozzle (OBSOLETE) Call for price 1 usually ships 6-7 days
N/S 235-0374 14 inch squeegee insert (OBSOLETE) Call for price 1 usually ships 6-7 days
N/S 235-0375 14 inch brush insert (OBSOLETE) Call for price 1 usually ships 6-7 days
N/S 235-0024 2 ply filter bag (pkg of 5) (OBSOLETE) $101.77 1 (optional) usually ships 6-7 days
N/S 235-0339 HEPA cartridge filter (OBSOLETE) Call for price 1 (optional) usually ships 6-7 days
