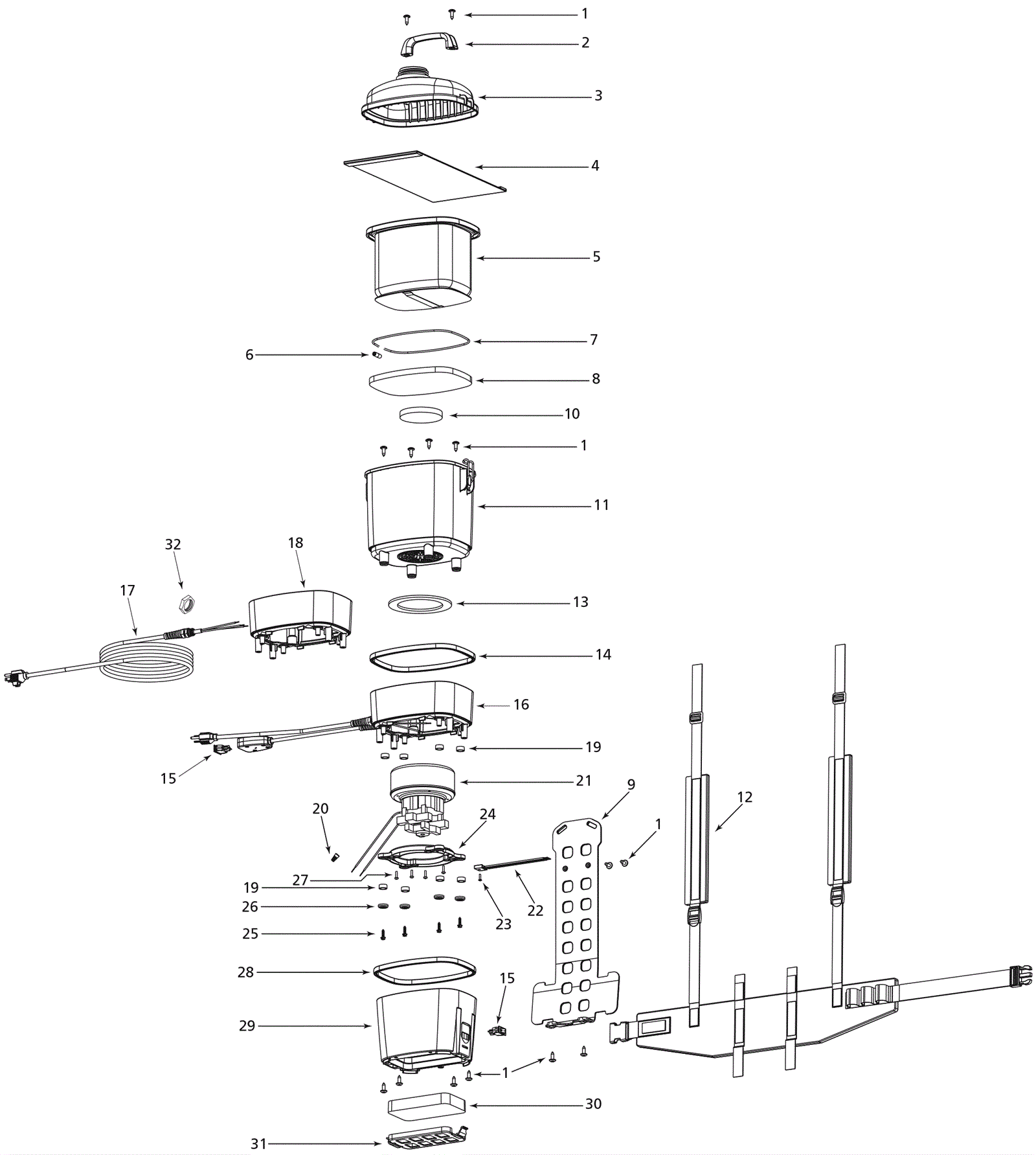

4TR10 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 14 (screw 1/4 x 3/4 inch pan head truss) usually ships 3-26 days
2 228-7188 Handle Call for price 1 usually ships 9-25 days
3 228-7189 Top cover Call for price 1 usually ships 9-25 days
4 992-0036 Paper vacuum bags (pkg of 10) $81.00 1 usually ships 3-10 days
5 228-7190 Cloth filter bag Call for price 1 usually ships 9-25 days
6 228-7191 Sleeve Call for price 1 usually ships 9-25 days
7 228-7192 Reinforcing wire Call for price 1 usually ships 9-25 days
8 228-7193 Foam spacer Call for price 1 usually ships 9-25 days
9 228-7194 Back plate Call for price 1 usually ships 9-25 days
10 228-7195 Middle tank foam filter Call for price 1 usually ships 9-25 days
11 228-7196 Tank assembly Call for price 1 (includes 13) usually ships 9-25 days
12 228-7197 Harness $24.32 1 usually ships 9-25 days
13 228-7198 Motor gasket $4.14 1 usually ships 9-25 days
14 228-7199 Top tank gasket Call for price 1 usually ships 9-25 days
15 235-0328 Switch (OBSOLETE) Call for price 1 usually ships 3-10 days
16 228-7200 Motor housing Call for price 1 usually ships 9-25 days
17 N/A Not available Call for price 1 (cord assembly) usually ships 3-26 days
18 N/A Not available Call for price 1 (motor housing) usually ships 3-26 days
19 228-7201 Rubber insulator Call for price 8 usually ships 9-25 days
20 N/A Not available Call for price 6 (wire nut) usually ships 3-26 days
21 228-7202 Motor Call for price 1 usually ships 9-25 days
22 235-0403 Rectifier Call for price 1 usually ships 3-10 days
23 N/A Not available Call for price 1 (screw 5 x 3/4 inch pan head type b) usually ships 3-26 days
24 228-7203 Motor mount Call for price 1 usually ships 9-25 days
25 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 4 ships same day
26 228-7204 Rubber retainer Call for price 4 usually ships 9-25 days
27 228-7205 Motor mount screw Call for price 4 usually ships 9-25 days
28 228-7206 Bottom tank gasket Call for price 1 usually ships 9-25 days
29 228-7207 Bottom cover assembly Call for price 1 (includes 30-31) usually ships 9-25 days
30 228-7208 Bottom cover foam filter Call for price 1 usually ships 9-25 days
31 228-7209 Filter cover Call for price 1 usually ships 9-25 days
32 235-0404 Flex connector nut Call for price 2 usually ships 3-10 days
N/S 235-0405 Hose (OBSOLETE) Call for price 1 usually ships 3-10 days
N/S 235-0406 Upper aluminum extension wand Call for price 1 usually ships 3-10 days
N/S 235-0407 Lower aluminum extension wand Call for price 1 usually ships 3-10 days
N/S 235-0408 12 inch dual surface nozzle Call for price 1 usually ships 3-10 days
N/S 235-0409 1 1/2 inch round brush Call for price 1 usually ships 3-10 days
N/S 235-0410 Utility nozzle Call for price 1 usually ships 3-10 days
N/S 235-0411 1 1/2 inch crevice tool Call for price 1 usually ships 3-10 days
N/S 235-0412 50 foot extension cord Call for price 1 usually ships 3-10 days
N/S 235-0414 HEPA filter kit Call for price 1 (optional) usually ships 3-10 days
N/S 235-0415 HEPA cartridge filter Call for price 1 (optional) usually ships 3-10 days
N/S 235-0416 14 inch professional floor nozzle Call for price 1 (optional) usually ships 3-10 days
N/S 235-0417 Turbo nozzle Call for price 1 (optional) usually ships 3-10 days
