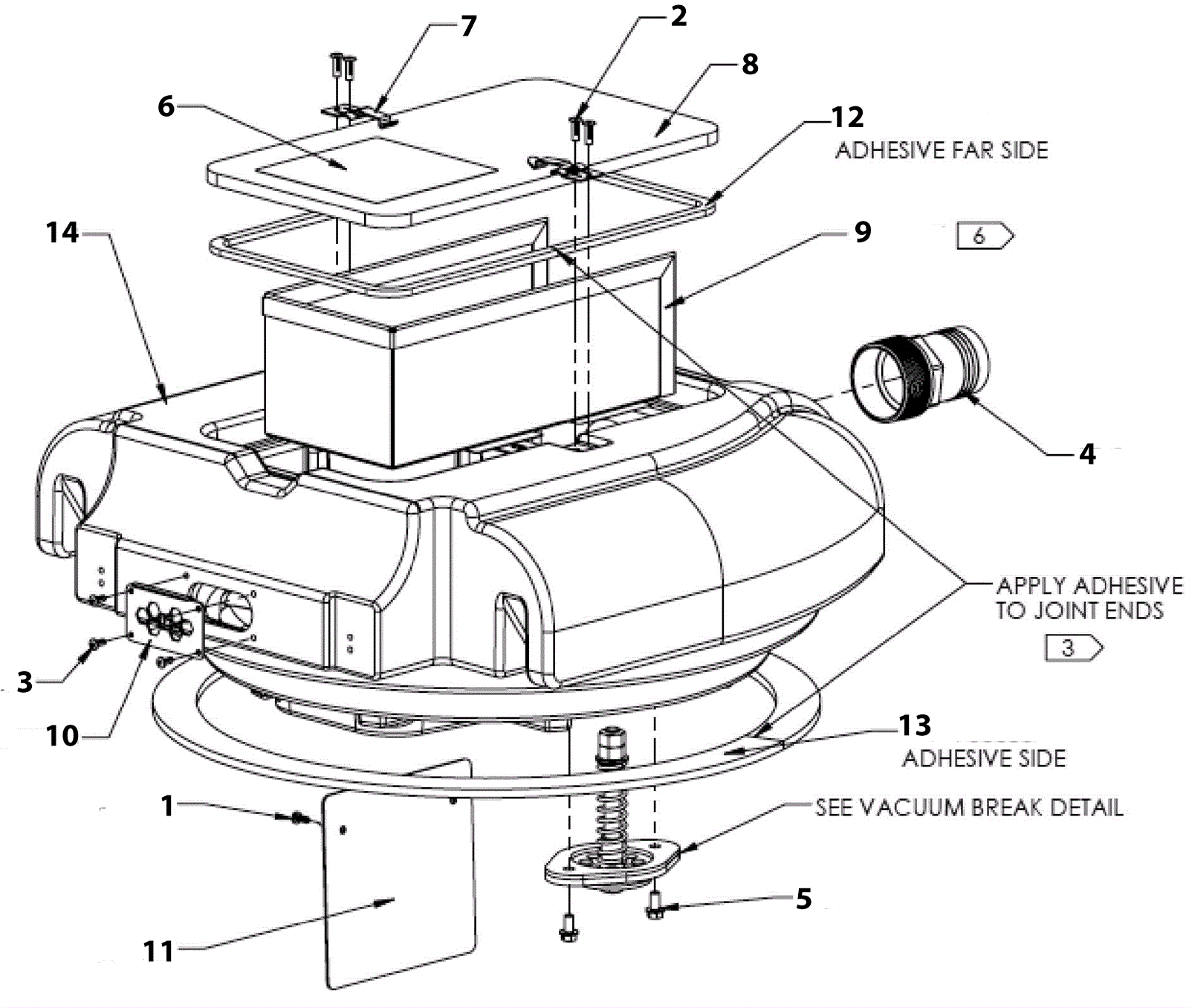

HVE 3000 Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 233-0144 Screw #8 x 1/2 inch pan head $0.99 2 usually ships 7-8 days
2 233-0026 Rivet $1.89 4 usually ships 7-8 days
4 233-0587 Fitting Call for price 1 usually ships 1-5 days
5 233-0565 Screw 1/4-20 x 1/2 slotted hex head washer stainless steel Call for price 2 usually ships 1-5 days
6 233-0602 Decal Call for price 1 usually ships 1-5 days
7 233-0603 Snap latch Call for price 2 usually ships 1-5 days
8 233-0604 Filter screen lid Call for price 1 usually ships 1-5 days
9 233-0605 Filter screen assembly Call for price 1 usually ships 1-5 days
10 233-0606 Shroud Call for price 1 usually ships 1-5 days
11 992-9536 Strainer ball float shield $22.11 1 usually ships 13-15 days
12 233-0607 Gasket Call for price 1 usually ships 1-5 days
13 233-0608 Gasket Call for price 1 usually ships 1-5 days
14 233-0609 Cover Call for price 1 usually ships 1-5 days
