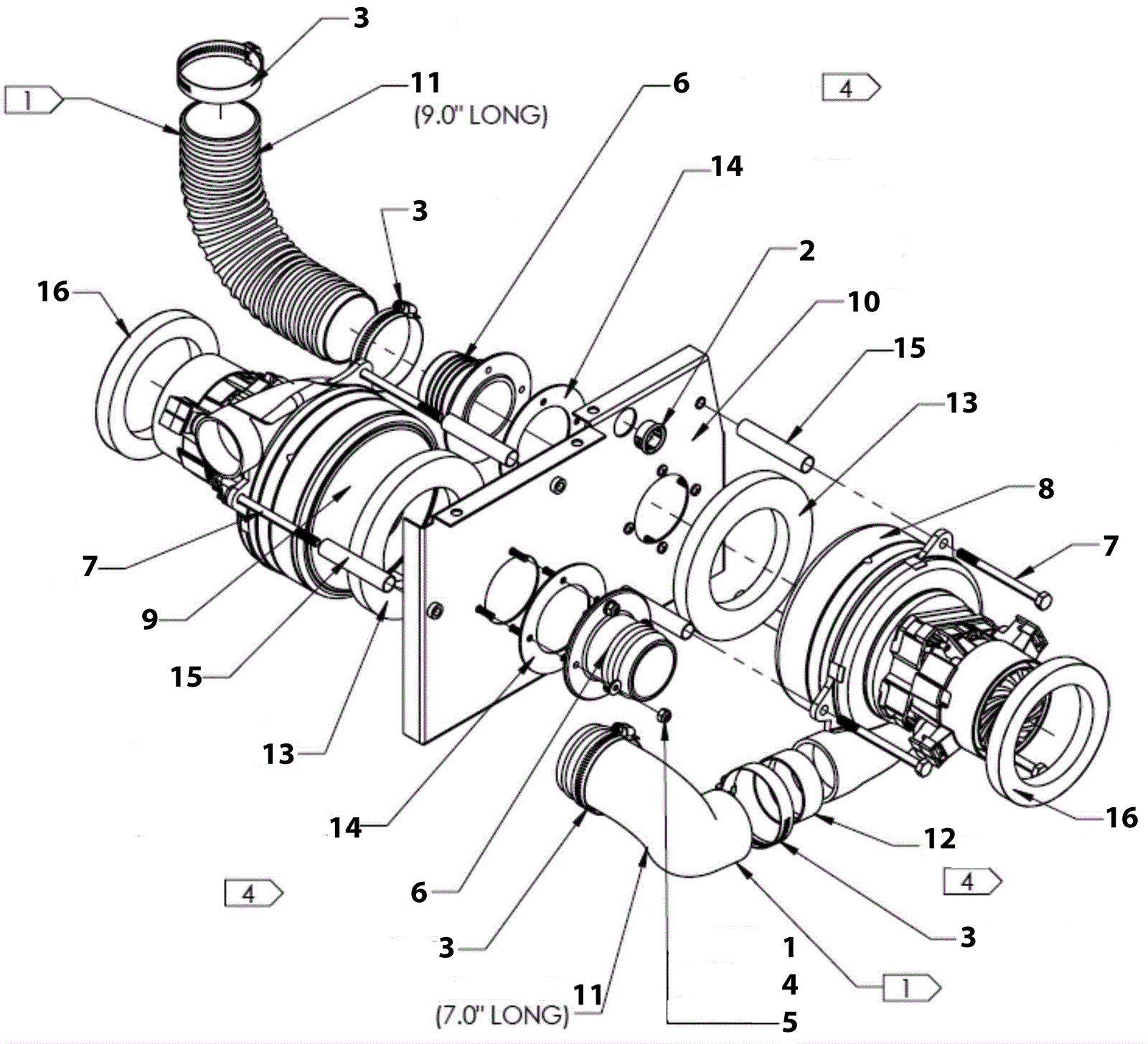

HVE 3000 Blower Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 8 ships same day
2 233-0527 Bushing Call for price 1 usually ships 1-5 days
3 233-0563 Hose clamp Call for price 4 usually ships 1-5 days
4 233-0173 5/32 inch washer Call for price 8 usually ships 7-8 days
5 999-0438 Screw 8-32 x 5/8 pan head phillips zinc plated $0.99 8 ships same day
6 233-0577 Base connector Call for price 2 usually ships 1-5 days
7 999-0825 Screw 1/4-20 x 3 1/2 hex head plain finish $0.99 6 ships same day
8 233-0578 120V blower assembly Call for price 1 (910W 1SP 2 stage) usually ships 1-5 days
9 233-0579 120V blower assembly Call for price 1 (1630W 1SP 2 stage HP) usually ships 1-5 days
10 233-0580 Blower mounting bracket Call for price 1 usually ships 1-5 days
11 233-0581 Vacuum hose $9.45 16 in usually ships 1-5 days
12 233-0582 Sleeve Call for price 1 usually ships 1-5 days
13 233-0583 Gasket Call for price 2 usually ships 1-5 days
14 233-0584 Gasket Call for price 2 usually ships 1-5 days
15 233-0585 Spacer Call for price 6 usually ships 1-5 days
16 233-0586 Gasket Call for price 2 usually ships 1-5 days
