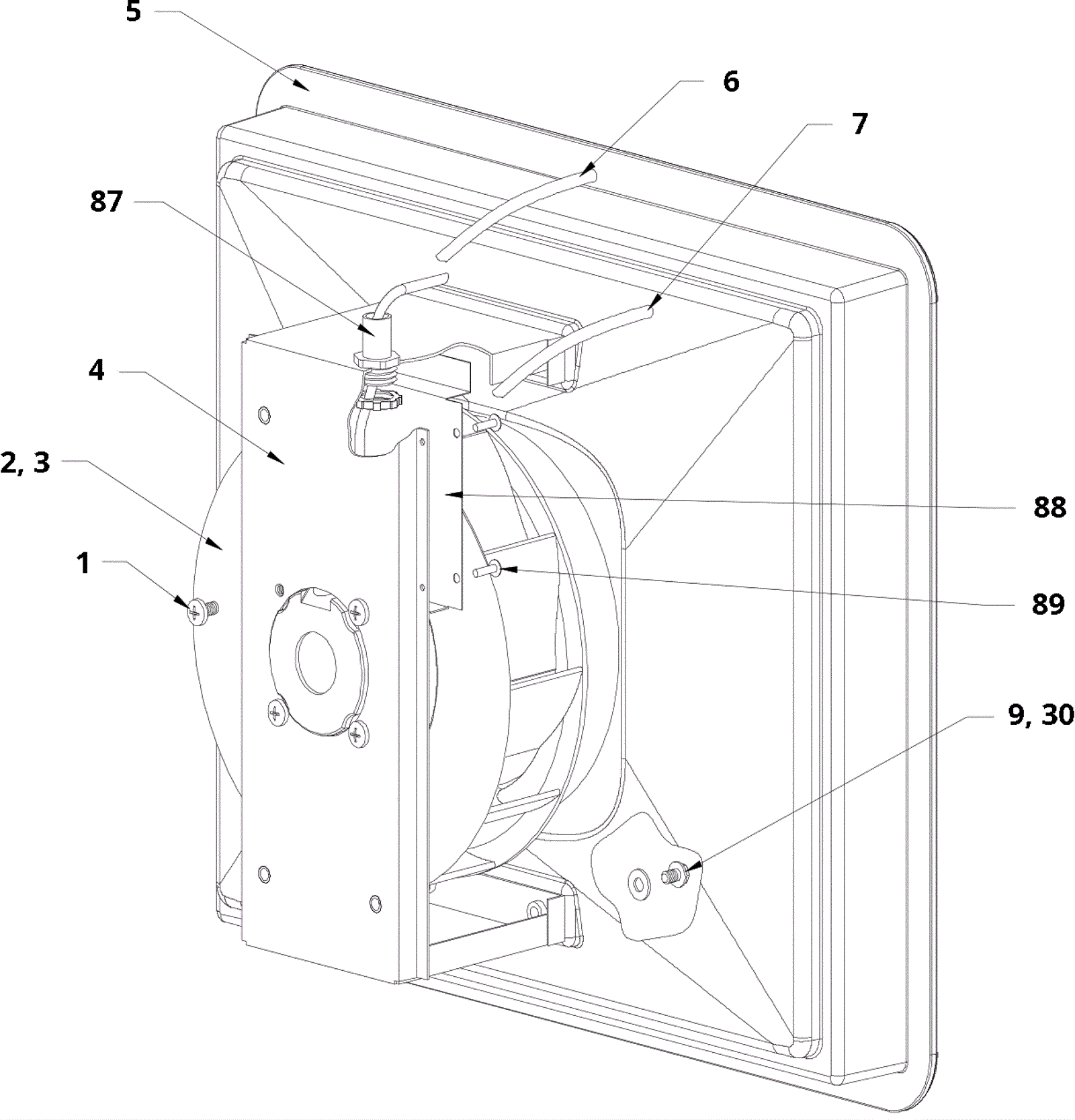

F284 HEPA Plenum Assembly

#PartDescriptionPriceReqNotesAvailability
1 233-0309 Screw M6 x 10mm phillips head $0.99 4 usually ships 7-8 days
2 233-0310 115V 240W blower assembly $302.50 1 usually ships 7-8 days
3 233-0311 230V 251W blower assembly $307.27 1 usually ships 7-8 days
4 233-0312 Blower mount galvanized steel $47.95 1 usually ships 7-8 days
5 233-0313 HEPA plenum $68.00 1 usually ships 7-8 days
6 233-0314 Tubing 1/8 x 1/4 clear $0.99 .75 feet usually ships 7-8 days
7 233-0314 Tubing 1/8 x 1/4 clear $0.99 .92 feet usually ships 7-8 days
9 233-0289 Screw 1/4 x 20 x 1/2 $0.99 8 usually ships 7-8 days
30 233-0133 1/4 inch Washer Call for price 16 usually ships 7-8 days
87 233-0315 Connector fitting $3.59 1 usually ships 7-8 days
88 233-0316 Motor shield $8.15 1 usually ships 7-8 days
89 233-0170 Rivet 1/8 x 1/8 inch Call for price 4 usually ships 7-8 days
