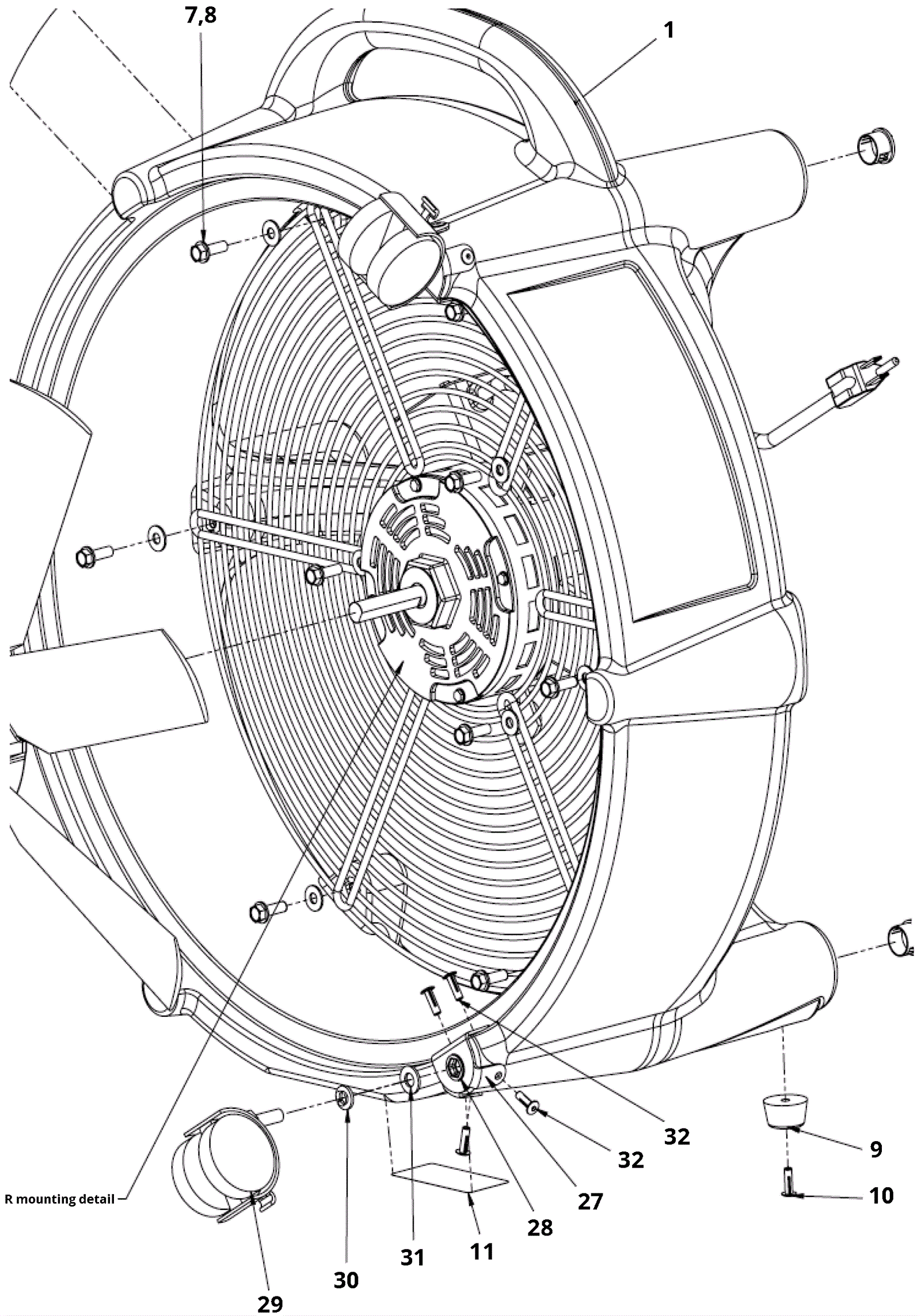

STUDEBAKER AIRPATH Rear Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (housing) usually ships 3-26 days
7 233-0133 1/4 inch Washer Call for price 9 usually ships 7-8 days
8 233-0245 Screw 1/4-20 x 3/4 Call for price 9 usually ships 7-8 days
9 233-0001 Rubber foot $4.97 2 usually ships 19-39 days
10 233-0026 Rivet $1.89 2 usually ships 7-8 days
11 N/A Not available Call for price 1 (serial number tag) usually ships 3-26 days
27 N/A Not available Call for price 3 (caster bracket) (not sold separately) usually ships 3-26 days
28 N/A Not available Call for price 3 (hex insert) (not sold separately) usually ships 3-26 days
29 233-0016 Caster $18.45 3 ships same day
30 233-0254 Washer 5/16 lock $0.99 3 usually ships 13-15 days
31 233-0255 Washer 5/16 $0.99 3 usually ships 13-15 days
32 233-0256 Rivet $1.12 12 usually ships 13-15 days
N/S 233-0257 Caster bracket assembly $21.78 1 (includes 27-28) ships same day
