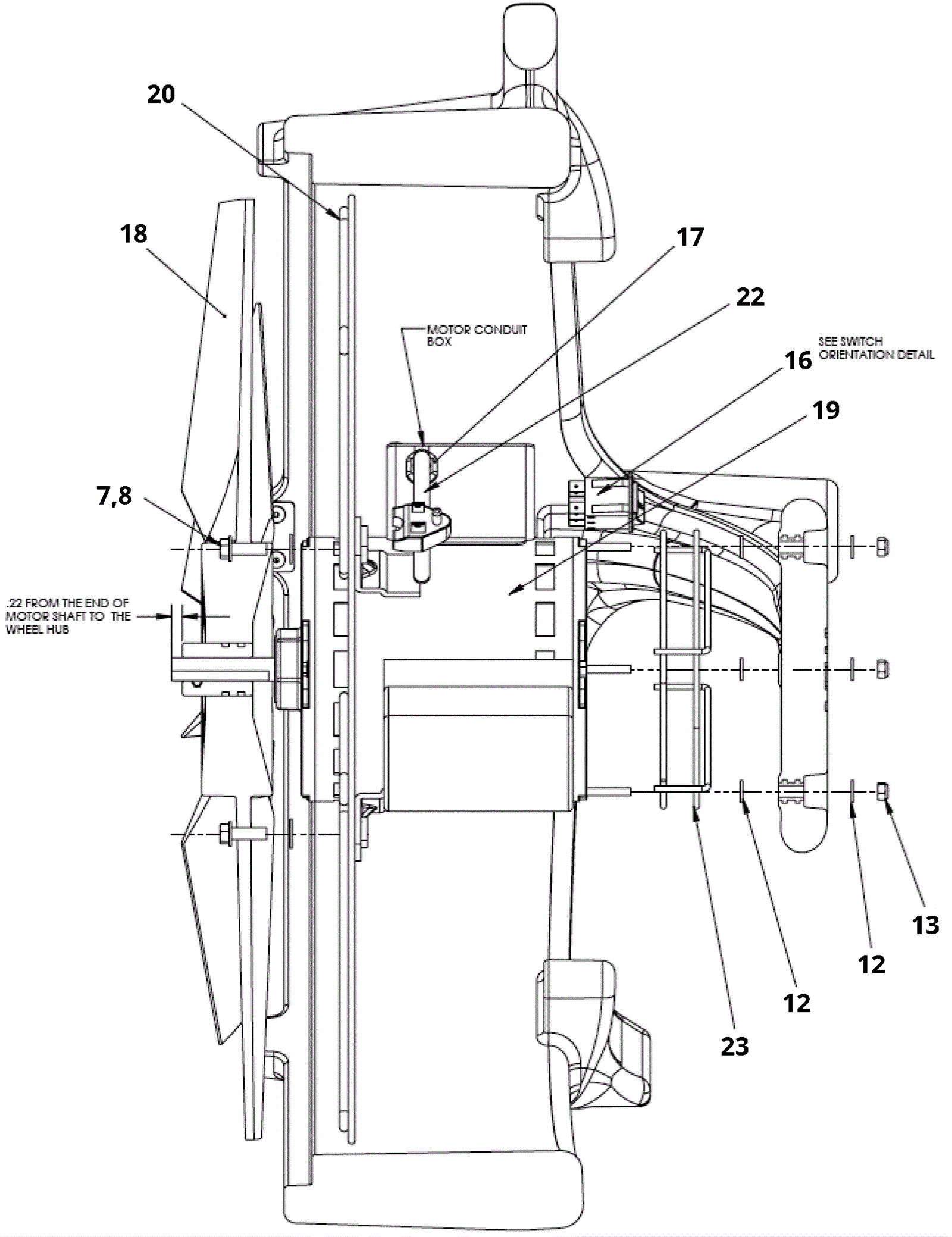

STUDEBAKER AIRPATH Body Assembly

#PartDescriptionPriceReqNotesAvailability
7 233-0133 1/4 inch Washer Call for price 9 usually ships 7-8 days
8 233-0245 Screw 1/4-20 x 3/4 Call for price 9 usually ships 7-8 days
12 233-0246 Washer 3/16 rivet Call for price 8 usually ships 7-8 days
13 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 4 ships same day
16 233-0242 Rocker switch (red) Call for price 1 usually ships 7-8 days
17 233-0160 .360 inch strain relief Call for price 1 usually ships 7-8 days
18a 233-0017 Fan $93.84 1 usually ships 19-39 days
18b 233-0252 Polythylene housing Call for price 1 usually ships 7-8 days
19 233-0247 115V 1HP motor assembly $289.38 1 usually ships 13-15 days
20 233-0248 Inlet grill Call for price 1 usually ships 7-8 days
22 233-0243 16/3 25 foot power cord $26.83 1 usually ships 7-8 days
23 233-0244 Vent opening shield Call for price 1 usually ships 7-8 days
