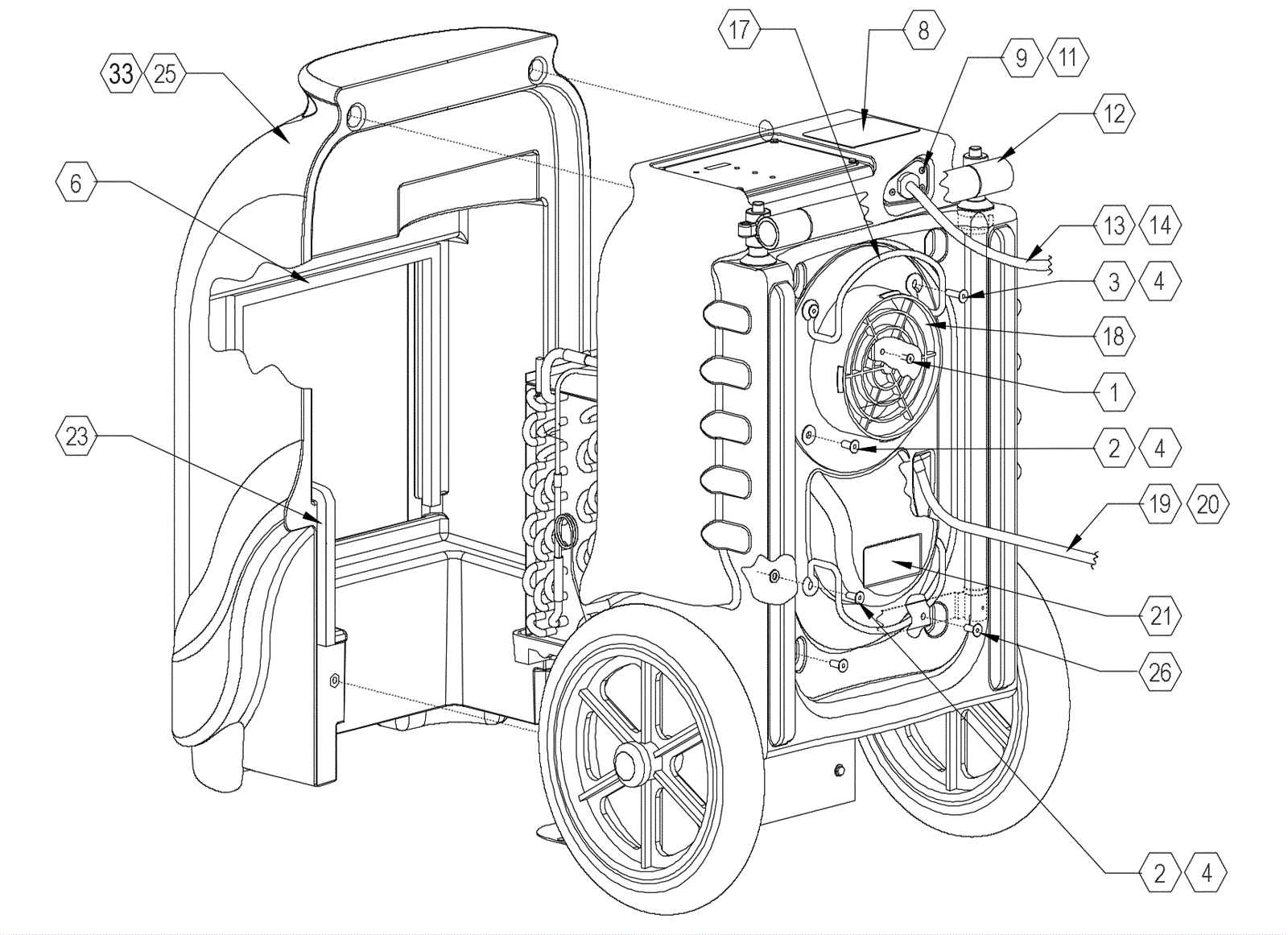

DRIZAIR 1200 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 233-0065 Rivet $0.99 16 usually ships 19-39 days
2 233-0153 Rivet1/4 x 1/2 inch Call for price 4 usually ships 7-8 days
3 233-0103 Rivet 1/4 x 3/4 inch Call for price 2 usually ships 7-8 days
4 233-0133 1/4 inch Washer Call for price 8 usually ships 7-8 days
6 233-0060 Gasket $1.25 2.5 foot usually ships 19-39 days
8 233-0156 Warning turbos decal Call for price 1 usually ships 7-8 days
9 233-0070 Rivet $1.89 3 usually ships 19-39 days
11 233-0157 Strain relief plate Call for price 1 usually ships 7-8 days
12 233-0158 Handle assembly (OBSOLETE) $124.83 1 usually ships 7-8 days
13a 233-0159 Power cord assembly Call for price 1 usually ships 7-8 days
13c 233-0162 Power cord assembly 3 x 1.5 mm Call for price 1 usually ships 7-8 days
13d 233-0239 Power cord assembly Call for price 1 usually ships 19-39 days
14a 233-0160 .360 inch strain relief Call for price 1 (Before 10/20/99) usually ships 7-8 days
14b 233-0161 Strain relief Call for price 1 (After 10/20/99) usually ships 7-8 days
17 233-0163 Hose wrap Call for price 2 usually ships 7-8 days
18 233-0164 6 inch duct ring Call for price 1 usually ships 7-8 days
19 233-0066 Purge hose connect $0.99 1 usually ships 19-39 days
20 233-0092 40 foot tubing $74.58 40 foot usually ships 19-39 days
21a 233-0166 230V model serial decal Call for price 1 usually ships 7-8 days
21b 233-0165 115V model serial decal Call for price 1 usually ships 7-8 days
23 233-0060 Gasket $1.25 4.58 foot usually ships 19-39 days
24 233-0167 Front cover (turf green) Call for price 1 usually ships 7-8 days
26 233-0064 Rivet $1.67 6 usually ships 19-39 days
33a 233-0155 Front polyethylene cover (fisher blue) Call for price 1 usually ships 7-8 days
33b 233-0154 Front polyethylene cover (teal green) Call for price 1 usually ships 7-8 days
33c 233-0167 Front cover (turf green) Call for price 1 usually ships 7-8 days
33d 233-0168 Cover (bright yellow) Call for price 1 usually ships 7-8 days
33e 233-0213 Power cord assembly Call for price 1 usually ships 7-8 days
N/S 233-0198 Cover insert 1/4-20 x 1/2 x 1/2 inch Call for price 12 usually ships 7-8 days
N/S 233-0200 3/8 inch brass nut rear insert Call for price 1 usually ships 7-8 days
N/S 233-0240 Tubing 3/8 x 5/8 OD braided pvc Call for price 2.92 foot usually ships 19-39 days
N/S 233-0201 Hose clamp Call for price 2 (for part 13-00083) usually ships 7-8 days
N/S 233-0210 1/2 ton filter dryer (OBSOLETE) Call for price 1 usually ships 7-8 days
N/S 233-0211 Drip tray Call for price 1 usually ships 7-8 days
N/S 233-0212 Fixed handle $40.43 1 usually ships 7-8 days
N/S 233-0214 Handle installation and removal tool Call for price 1 (order with 08-00223) usually ships 7-8 days
N/S 233-0185 Tubing Call for price 1.5 foot usually ships 7-8 days
N/S 233-0216 1/4 inch soft copper tubing Call for price 2.58 foot usually ships 7-8 days
N/S 233-0217 3/8 inch soft copper tubing Call for price 2.78 foot usually ships 7-8 days
Kit 1 233-0220 Crossbar handle assembly Call for price 1 usually ships 7-8 days
Kit 2 233-0223 Handle kit $51.61 1 usually ships 7-8 days
