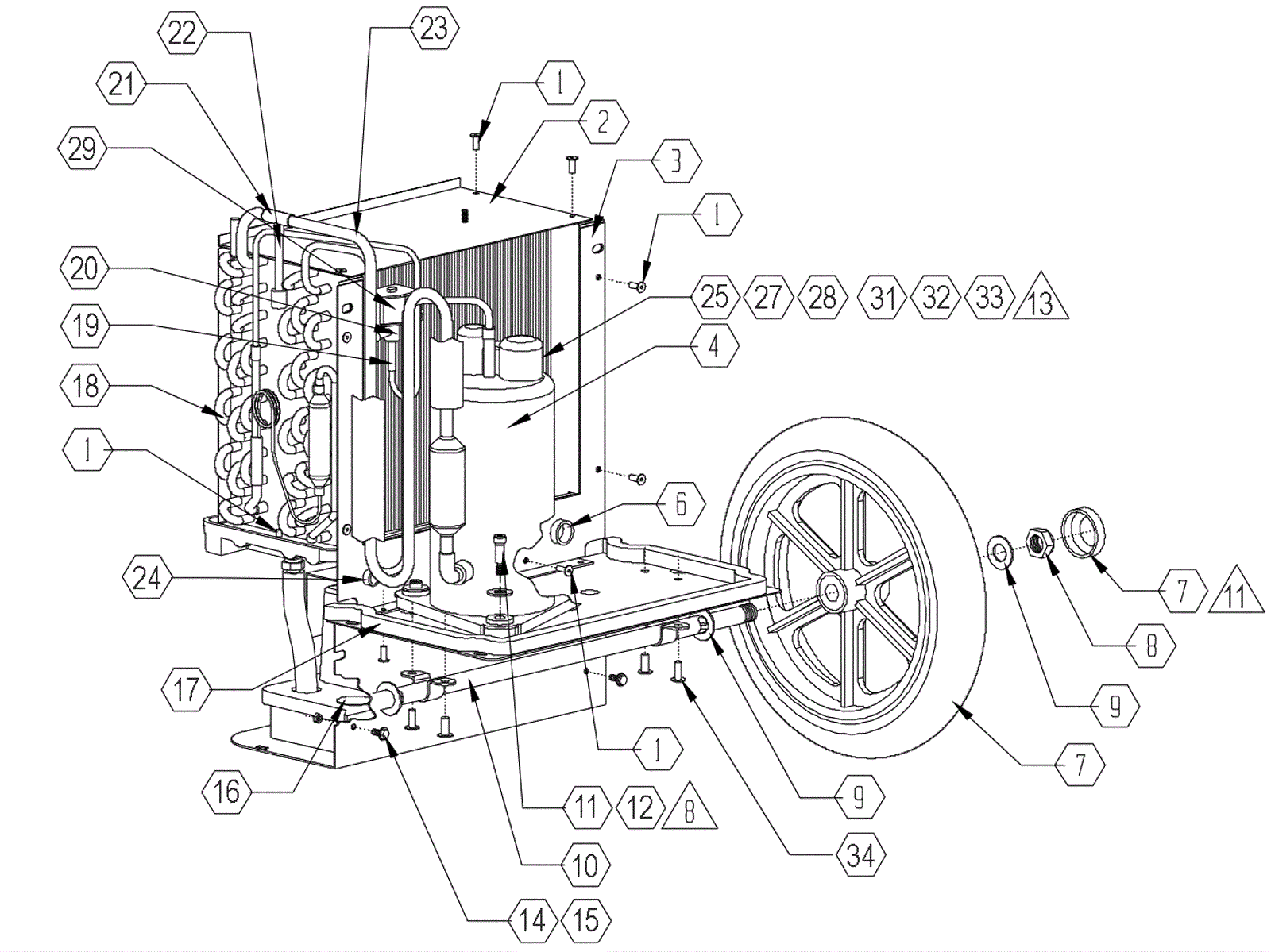

DRIZAIR 1200 Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 233-0065 Rivet $0.99 16 usually ships 19-39 days
2 233-0093 Coil frame galvanized steel Call for price 1 usually ships 7-8 days
3 233-0094 Bulkhead galvanized steel Call for price 1 usually ships 7-8 days
4a 233-0095 115V compressor 6745 BTU high efficiency Call for price 1 (must also order 14, 25a, 27, 28, 32, 33, N/S) usually ships 7-8 days
4b 233-0096 230V compressor 6370 BTU Call for price 1 (must also order 14, 25a, 27, 28, 32, 33, N/S) usually ships 7-8 days
6 233-0097 Bushing .671 ID x .875 x .41 split nylon (black) Call for price 2 usually ships 7-8 days
7 233-0090 Wheel $82.97 2 usually ships 19-39 days
10 233-0100 Axle assembly Call for price 1 usually ships 7-8 days
11 233-0101 Shoulder bold 5/8-18 x 3/4 inch Call for price 3 usually ships 7-8 days
12 999-9273 Washer 3/8 1.0 OD x .438 ID x .083 zinc plated $0.99 3 usually ships 12-18 days
13 233-0103 Rivet 1/4 x 3/4 inch Call for price 2 usually ships 7-8 days
14 233-0104 Screw 10-24 x 1/2 inch $3.06 2 usually ships 7-8 days
15 233-0105 Nut #10-24 with star washer Call for price 8 usually ships 7-8 days
16 233-0106 1.125 inch plastic cap (black) Call for price 1 usually ships 7-8 days
17 233-0060 Gasket $1.25 2.67 feet usually ships 19-39 days
18 233-0107 Coil assembly $267.82 1 usually ships 13-15 days
19 233-0108 Tee fitting 1/4 x 1/4 x 1/4 inch copper Call for price 1 usually ships 7-8 days
20 233-0109 1.9 mm solenoid bypass valve Call for price 1 usually ships 7-8 days
21 233-0110 Tee fitting 3/8 x 3/8 x 1/4 inch copper Call for price 1 usually ships 7-8 days
22 233-0111 1/4 inch line service valve copper Call for price 1 usually ships 7-8 days
23 233-0112 115V/230V refrigeration lines set Call for price 1 usually ships 7-8 days
24 233-0113 Bushing .39 ID x .562 x .406 split nylon (black) Call for price 1 usually ships 7-8 days
25a 233-0114 115V overload compressor Call for price 1 (must also order 4a, 14, 27, 28, 31, 32, 33, N/S) usually ships 7-8 days
25b 233-0115 230V overload compressor Call for price 1 (must also order 4a, 14, 27, 28, 31, 32, 33, N/S) usually ships 7-8 days
27 233-0116 Terminal cover nut $0.99 1 (must also order 4a, 4b, 14, 25a, 25b, 28, 31, 32, 33, N/S) usually ships 7-8 days
28 233-0117 Washer 7/32 ID x 9/16 OD rubber $0.99 1 (must also order 4a, 4b, 14, 25a, 25b, 28, 31, 32, 33, N/S) usually ships 7-8 days
29a 233-0118 115V solenoid assembly $43.48 1 usually ships 7-8 days
29b 233-0119 230V solenoid assembly Call for price 1 usually ships 7-8 days
31 233-0120 Spring 1-1/16 OD x 1/2 inch Call for price 1 (must also order 4a, 4b, 14, 25a, 25b, 27, 28, 32, 33, N/S) usually ships 7-8 days
32 233-0121 Gasket terminal 2-5/16 x 3-916 x .036 inch rubber $0.99 1 (must also order 4a, 4b, 14, 25a, 25b, 27, 28, 32, 33, N/S) usually ships 7-8 days
33 233-0122 Cover terminal 3-14 x 2-1/8 x 1-5/8 inch plastic $0.99 1 (must also order 4a, 4b, 14, 25a, 25b, 27, 28, 31, 32, N/S ) usually ships 7-8 days
34 233-0064 Rivet $1.67 6 usually ships 19-39 days
N/S 233-0238 Grommet 3/8 ID x 1 1/2 OD rubber (black) $1.41 3 (order with parts 25, 27, 28, 31, 32, 33) usually ships 19-39 days
N/S 233-0209 Insulation pipe Call for price 3 foot usually ships 7-8 days
N/S 233-0215 Stick applicator for external repairs Call for price 1 usually ships 7-8 days
Kit 1 233-0219 Blower wheel tool Call for price 1 usually ships 7-8 days
Kit 2 233-0222 Refrigeration lines Call for price 1 usually ships 7-8 days
