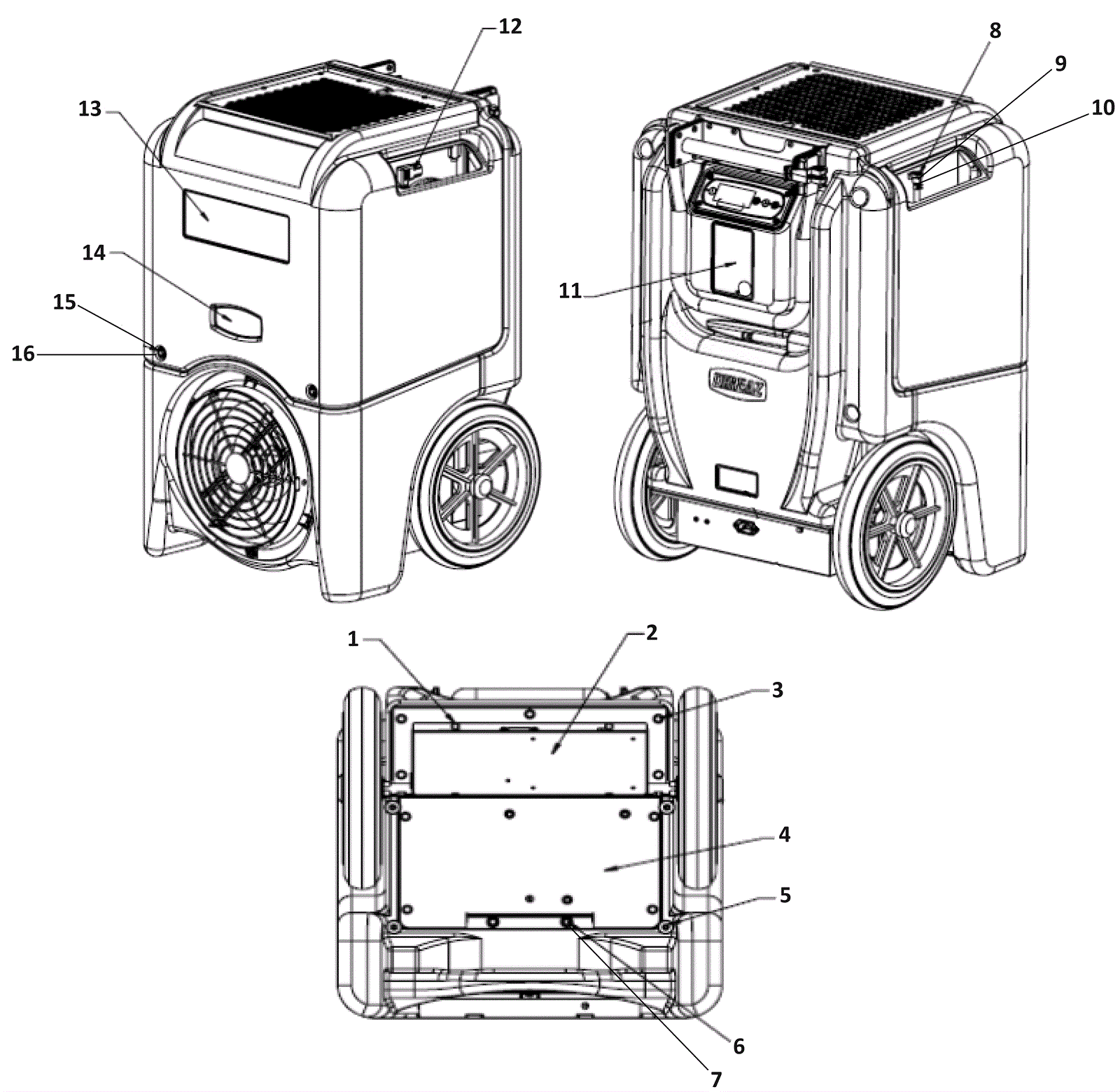

LGR 7000XLI Front and Rear Assembly

#PartDescriptionPriceReqNotesAvailability
3 233-0025 Screw 1/4-20 x 3/8 nyloc patch $1.67 usually ships 7-8 days
4 233-0082 Electrical box $404.14 usually ships 19-39 days
5 233-0062 Rubber foot $3.85 usually ships 19-39 days
7 233-0055 Washer $0.99 usually ships 19-39 days
8 233-0080 1/4 inch quick connect body $22.59 usually ships 19-39 days
9 233-0066 Purge hose connect $0.99 usually ships 19-39 days
10 233-0092 40 foot tubing $74.58 usually ships 19-39 days
11 233-0078 Rear warning decal $24.65 usually ships 19-39 days
12 233-0054 Power cord assembly $20.38 usually ships 19-39 days
13 233-0079 Product decal $28.95 usually ships 19-39 days
14 233-0077 Badge decal $30.79 usually ships 19-39 days
15 233-0055 Washer $0.99 usually ships 19-39 days
16 233-0068 Screw $0.99 usually ships 19-39 days
N/s 233-0036 Sensor assembly $117.01 usually ships 19-39 days
N/S 233-0048 Control panel assembly $429.86 usually ships 13-15 days
