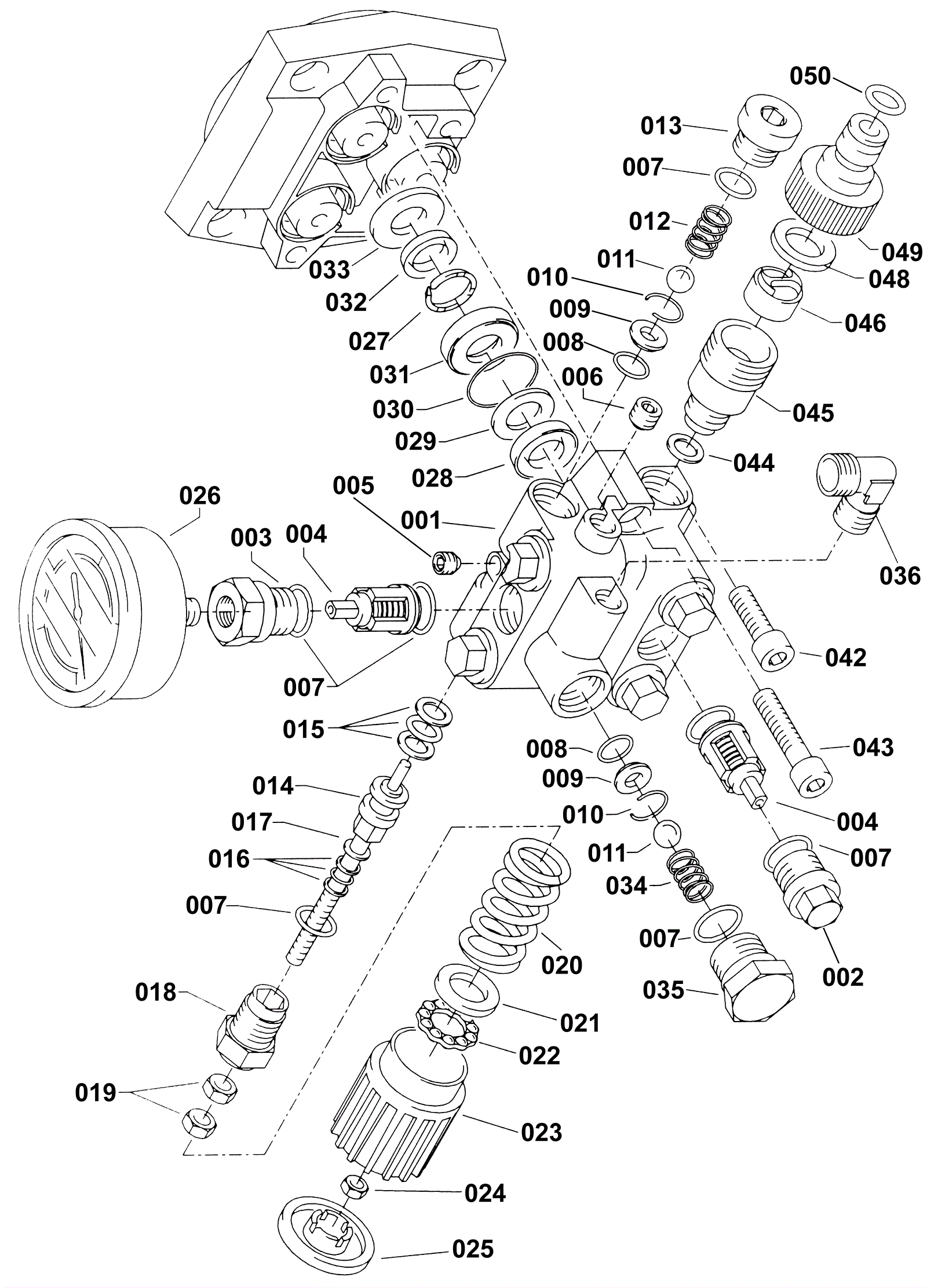

Valve Housing Assembly

#PartDescription ReqNotesAvailability
001 232-0057 Valve housing K1120T 1
002 232-0053 Valve plug M18x1.5 5
003 232-0164 Valve retainer w/ R1/4in female 1
004 232-0058 Pump valve 6
005 232-0059 Plug 1
006 232-0165 Sealing plug M10x1 1
007 232-0054 O-Ring 12x2 15
008 232-0060 O-Ring 11x1.5mm 2
009 232-0061 Unloader seat 2
010 232-0062 Retaining ring 2
011 232-0063 Unloader ball 8.5mm ss 2
012 232-0064 Unloader spring 1
013 232-0065 Screw pump lock 1
014 232-0066 Piston control for unloader 1
015 232-0067 Parbaks 14mm for unloader 1
016 232-0068 Parbaks 6mm for unloader 1
017 232-0069 Washer 1
018 232-0070 Piston guide sleeve 1
019 999-0950 Nut M6-1 hex aluminum 2
020 232-0071 Black unloader spring 1
021 232-0167 Piston control washer 1
022 232-0072 Ball bearing 1
023 232-0073 Hand wheel 1
024 232-0074 Nut M6 with star washer 1
025 232-0075 Handwheel cap 1
026 232-0076 Pressure gauge 1
027 232-0077 Retaining ring 12mm 3
028 232-0078 Fabric sleeve 14x24x5/2.5 3
029 232-0079 Washer 14x24x2 graphite 3
030 232-0168 O-Ring 26x2 3
031 232-0080 Leakage ring 3
032 232-0169 Sleeve 14x20x4/2 3
033 232-0081 Internal sleeve 3
034 232-0082 Return spring 1
035 232-0170 Outlet fitting plug 1
036 232-0171 Elbow 1/4in x 8mm 1
042 232-0052 Screw M8 x 25 hex socket 2
043 232-0083 Screw M8 x 40mm socket head cap 2
044 232-0084 Washer copper seal 1
045 232-0172 Suction connection 3/8in male 1
046 232-0085 Water inlet filter 1
048 232-0173 Rubber seal for plug-type coupling 1
049 232-0174 Plastic parts for plug-type coupling 1
050 232-0175 O-Ring for plug-type coupling 1
N/S 232-0176 Valve casing complete 1
N/S 232-0088 Guide piston with seals assembly 1
N/S 232-0086 Valve repair kit 1
N/S 232-0089 Complete unloader 1
N/S 232-0087 Packing kit 1
