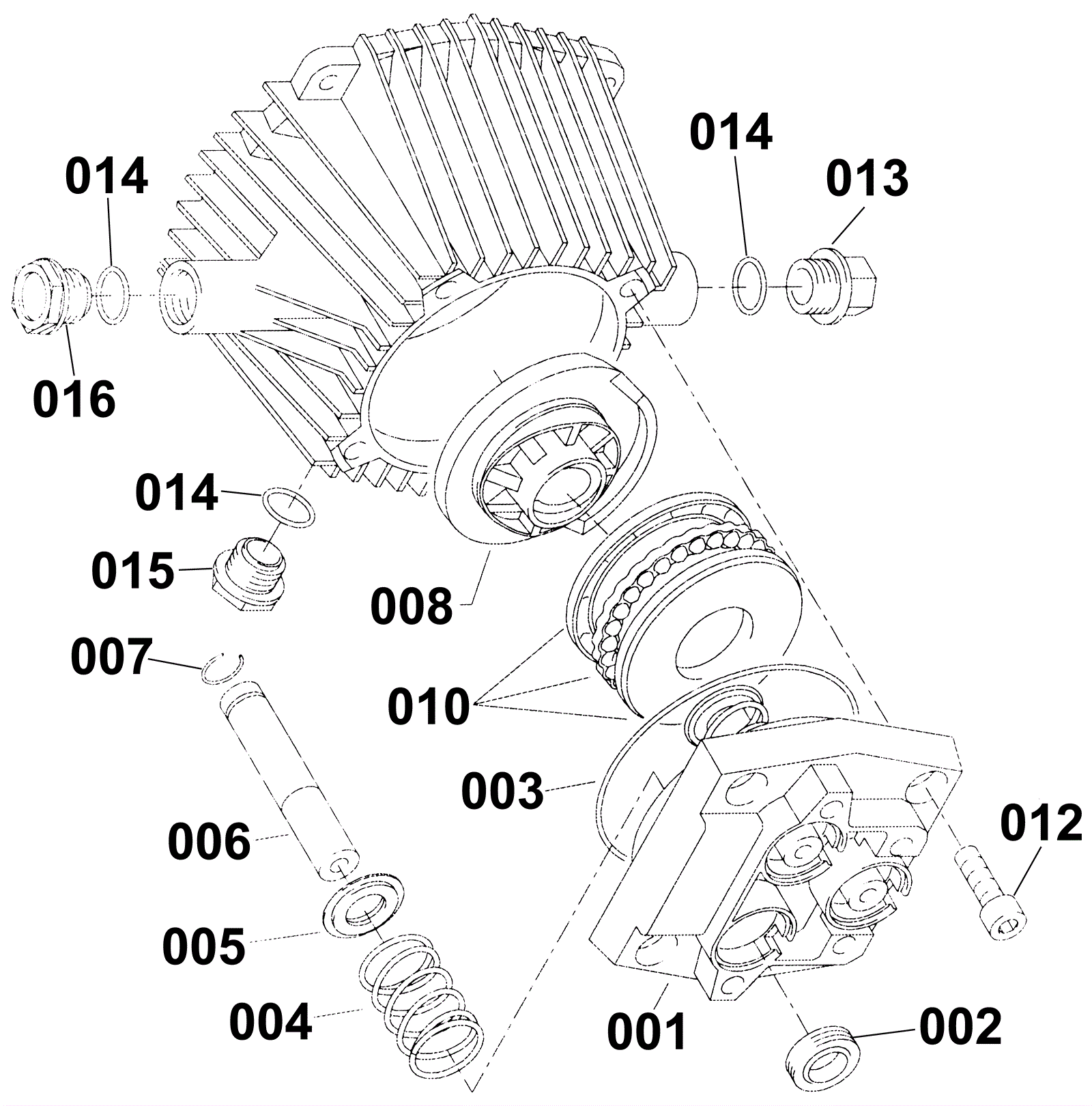

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
232-0044
|
Housing plate14mm |
1 |
|
|
002 |
232-0045
|
Oil seal 14x24x7 |
3 |
|
|
003 |
232-0046
|
O-Ring 83mmX2mm |
1 |
|
|
004 |
232-0047
|
Plunger spring |
3 |
|
|
005 |
232-0048
|
Pressure washer spring 14mm |
3 |
|
|
006 |
232-0049
|
Plunger 14mm |
3 |
(includes 007) |
|
007 |
232-0050
|
Snap ring 14mm |
3 |
|
|
008a |
232-0194
|
Swash plate 9.5 |
1 |
(please specify angle) 9.5 degrees |
|
008b |
232-0195
|
Swash plate 9.25 |
1 |
(please specify angle) 9.25 degrees |
|
010 |
232-0051
|
Bearing set |
1 |
|
|
012 |
232-0052
|
Screw M8 x 25 hex socket |
4 |
|
|
013 |
232-0053
|
Valve plug M18x1.5 |
1 |
|
|
014 |
232-0054
|
O-Ring 12x2 |
2 |
|
|
015 |
232-0055
|
Oil sight glass |
1 |
|
|
016 |
232-0056
|
Oil filler cap |
1 |
|
|
