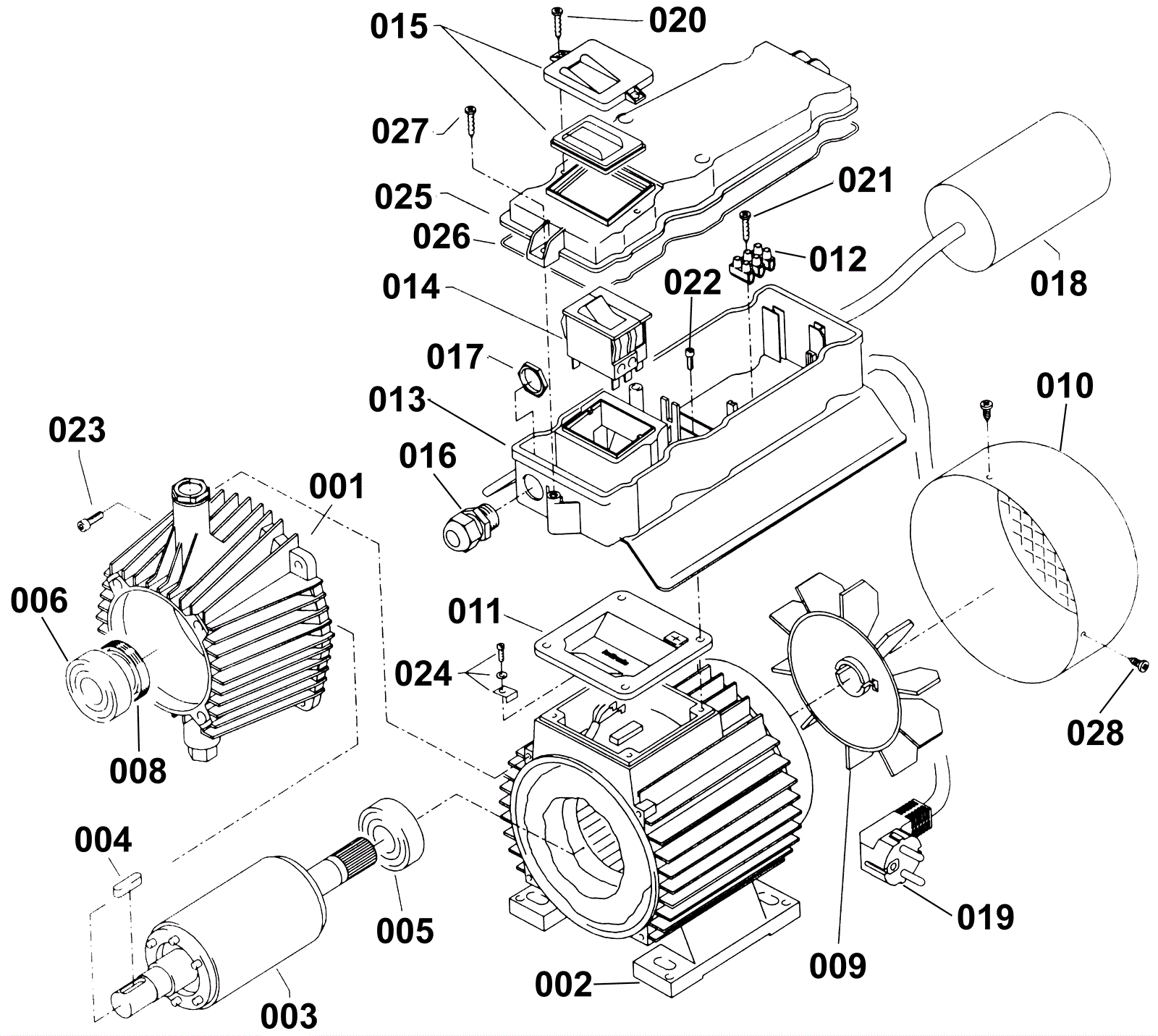

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
232-0035
|
Transmission housing |
1 |
|
|
002 |
232-0144
|
Motor housing with stator |
1 |
|
|
003 |
232-0147
|
Motor shaft w/ rotor |
1 |
|
|
004 |
232-0036
|
Feather key 6x6x20mm |
1 |
|
|
005 |
232-0037
|
Motor bearing B-side K1120 |
1 |
|
|
006 |
232-0038
|
Motor bearing A-side |
1 |
|
|
008 |
232-0039
|
Shaft seal |
1 |
|
|
009 |
232-0040
|
Fan wheel |
1 |
|
|
010 |
232-0148
|
Fan cover bg80 |
1 |
|
|
011 |
232-0149
|
Flat gasket |
1 |
|
|
012 |
232-0150
|
Wiring terminal |
1 |
|
|
013 |
232-0151
|
Switch box |
1 |
|
|
014 |
232-0041
|
Rocker switch older machines |
1 |
|
|
015 |
232-0042
|
Clamping frame with seal |
1 |
|
|
016 |
232-0152
|
Wiring connector |
1 |
|
|
017 |
232-0153
|
Nut connector |
1 |
|
|
018 |
232-0155
|
Condensator 80 |
1 |
|
|
019 |
232-0156
|
Cable for 110v |
1 |
|
|
020 |
232-0157
|
Screw 3 1/2 x 9 1/2 self tapping |
2 |
|
|
021 |
232-0158
|
Screw 2.9 x 16 self tapping |
1 |
|
|
022 |
232-0159
|
Screw M5x10 |
4 |
|
|
023 |
232-0189
|
Screw M5 x 30 hex head cap |
4 |
|
|
024 |
232-0160
|
Screw M4x8 earthing compl. |
1 |
|
|
025 |
232-0161
|
Switch box cover |
1 |
|
|
026 |
232-0162
|
Seal for switch box cover |
1 |
|
|
027 |
232-0043
|
Screw 5x25 plastic |
4 |
|
|
028 |
232-0163
|
Screw 3.9 x 9 1/2 self-tapping |
3 |
|
|
N/S |
232-0190
|
Motor complete w/ housing and fan wheel w/out elect for 110v |
1 |
|
|
