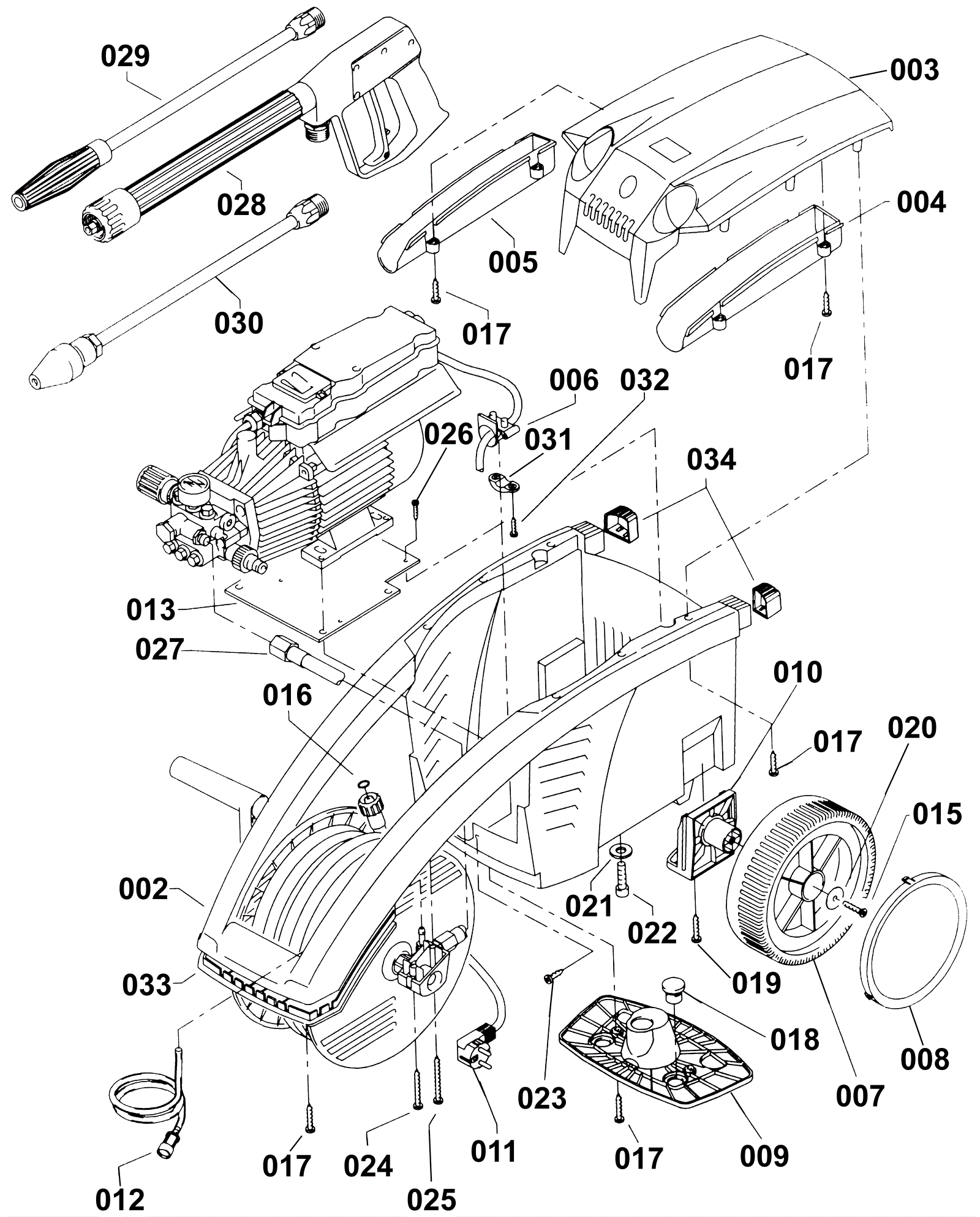

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
232-0124
|
Chassis |
1 |
|
|
003 |
232-0029
|
Front plate K1150T |
1 |
|
|
004 |
232-0125
|
Big receptacle |
1 |
|
|
005 |
232-0126
|
Small receptacle |
1 |
|
|
006 |
232-0127
|
Bend protection |
1 |
|
|
007 |
232-0191
|
Wheel |
2 |
|
|
008 |
232-0128
|
Wheel boss cap |
2 |
|
|
009 |
232-0030
|
Foot plate K1120 |
1 |
|
|
010 |
232-0031
|
Axle K1120T |
2 |
|
|
011 |
232-0192
|
Power cord |
1 |
|
|
012 |
232-0129
|
Chemical line with filter |
1 |
|
|
013 |
232-0130
|
Stabilization plate |
1 |
|
|
015 |
232-0131
|
Screw 5x20 galvanized synth |
2 |
|
|
016 |
232-0024
|
O-Ring 9.3x2.4mm |
2 |
|
|
017 |
232-0132
|
Screw 5 x 20 synth |
20 |
|
|
018 |
232-0133
|
Base plate support |
2 |
|
|
019 |
232-0134
|
Screw |
2 |
|
|
020 |
232-0135
|
Washer 40 x 6 x 1 1/2 |
2 |
|
|
021 |
232-0032
|
Washer 8.4mm |
4 |
|
|
022 |
232-0033
|
Screw M8 x 30 hex socket |
4 |
|
|
023 |
232-0034
|
Screw M4x16 synth |
2 |
|
|
024 |
232-0136
|
Screw 5x50 self-tapping |
2 |
|
|
025 |
232-0137
|
Screw 5x70 synth |
2 |
|
|
026 |
232-0138
|
Screw 3 1/2x14 synth |
2 |
|
|
027 |
232-0139
|
Connecting pipe for hose drum |
1 |
|
|
028 |
232-0012
|
PICO gunjet with extended barrel |
1 |
|
|
029 |
232-0013
|
Vario nozzle on lance 4.5 |
1 |
|
|
030 |
232-0011
|
Nozzle complete with lance |
1 |
|
|
031 |
232-0140
|
Clamp |
1 |
|
|
032 |
232-0141
|
Screw 3 1/2x16 tin |
2 |
|
|
033 |
232-0142
|
Handle cover |
1 |
|
|
034 |
232-0193
|
Feet |
1 |
|
|
