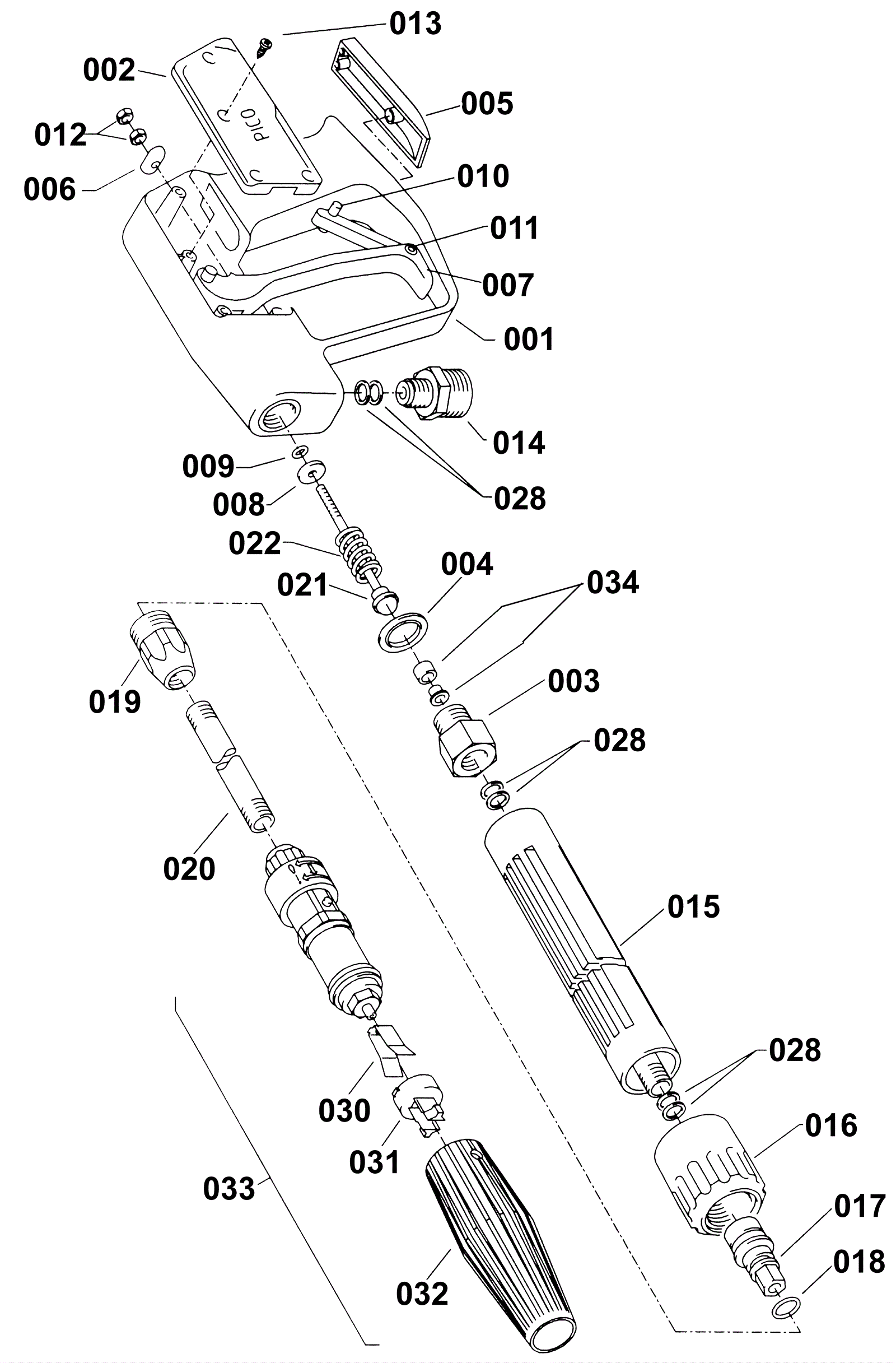

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
232-0012
|
PICO gunjet with extended barrel |
1 |
|
|
000b |
232-0013
|
Vario nozzle on lance 4.5 |
1 |
|
|
001 |
232-0015
|
Handle with body |
1 |
|
|
002 |
232-0016
|
Side panel |
1 |
|
|
003 |
232-0111
|
Adapter R 1/4in female |
1 |
|
|
004 |
232-0017
|
O-Ring 15mmX1.5mm |
1 |
|
|
005 |
232-0112
|
Bottom cover plastic |
1 |
|
|
006 |
232-0018
|
Pressure plate |
1 |
|
|
007 |
232-0019
|
Gunjet lever |
1 |
|
|
008 |
232-0113
|
Washer 4.2 x 13 x 2 brass |
1 |
|
|
009 |
232-0020
|
O-Ring 3.3x2.4mm |
1 |
|
|
010 |
232-0114
|
Trigger lock |
1 |
|
|
011 |
232-0115
|
Pin 3x17 |
1 |
|
|
012 |
232-0116
|
Nut M4 hex |
2 |
|
|
013 |
232-0117
|
Screw B3.9 x 9.5 phillips head |
4 |
|
|
014 |
232-0021
|
Coupling 1/4m x 22mm |
1 |
|
|
015 |
232-0118
|
Lance 342mm w/ insulated handle |
1 |
|
|
016 |
232-0022
|
Nut M22 x 1.5 |
1 |
|
|
017 |
232-0023
|
Outside hex nipple 1/4 |
1 |
|
|
018 |
232-0024
|
O-Ring 9.3x2.4mm |
1 |
|
|
019 |
232-0007
|
Coupling 22mm female x 12mm male |
1 |
|
|
020 |
232-0119
|
Pipe 400mm 1/4in |
1 |
|
|
021 |
232-0120
|
Piston rod and piston |
1 |
|
|
022 |
232-0121
|
Pressure spring |
1 |
|
|
028 |
232-0025
|
Aluminum gasket |
1 |
|
|
030 |
232-0026
|
Baffle plate |
1 |
|
|
031 |
232-0027
|
Baffle plate support |
1 |
|
|
032 |
232-0028
|
Plastic cover |
1 |
|
|
033 |
232-0122
|
Jet 045 M12x1 female |
1 |
|
|
034 |
232-0123
|
Brass sleeve w/ Teflon seat |
1 |
|
|
KIT |
232-0014
|
Spray gun rebuild kit |
1 |
|
|
N/S |
232-0203
|
Quick connect socket 1/4 inch male |
|
This part is needed to use 232-0202 with lance |
|
N/S |
232-0202
|
4.5 nozzle pack (includes 0°-15°-25°-40° and soap nozzle) |
|
Non-adjustable spray pattern |
|
N/S |
232-0204
|
3/8 inch female plug |
|
This part is needed to use 232-0202 with lance |
|
