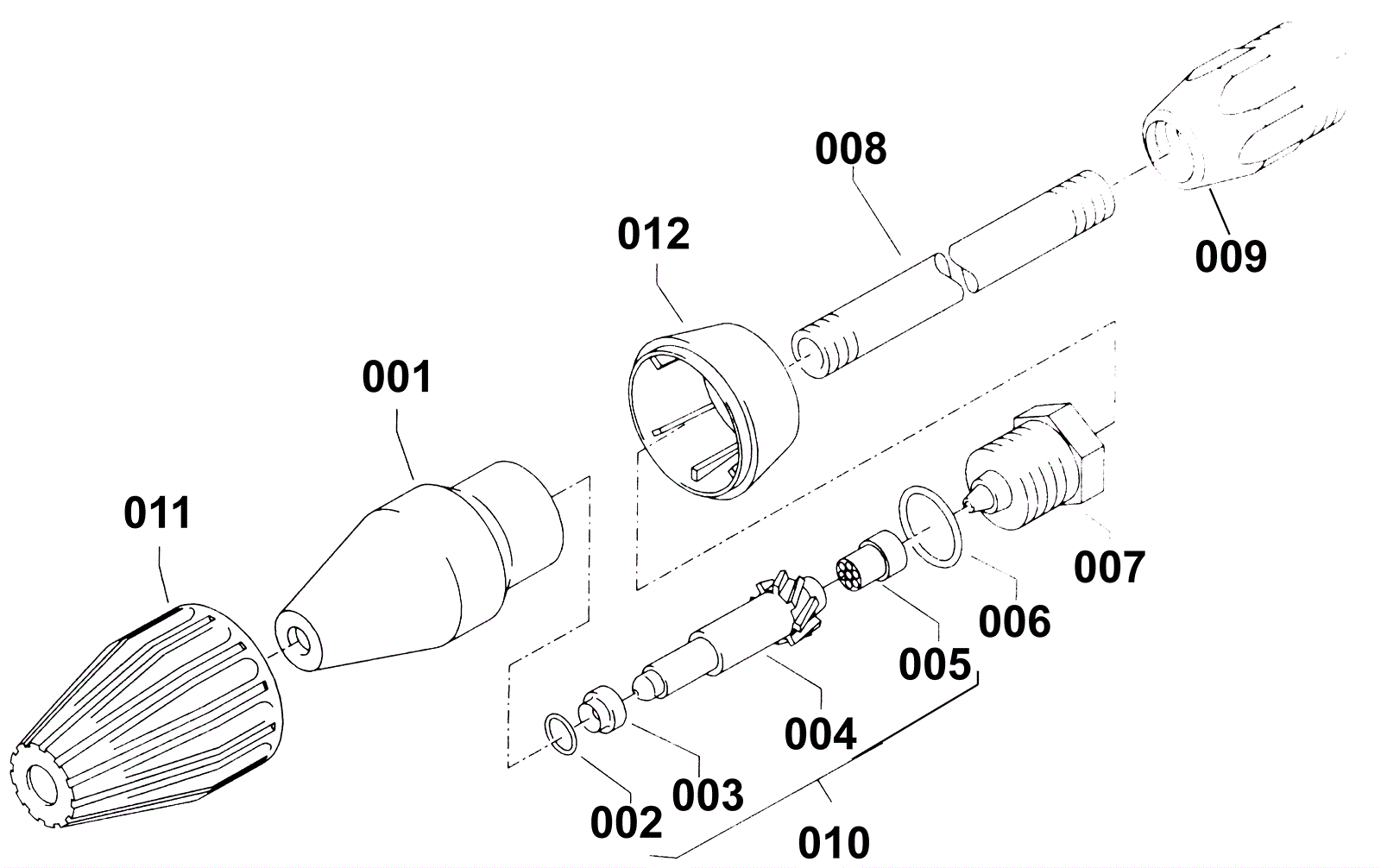

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
232-0001
|
Nozzle head |
1 |
|
|
002 |
232-0002
|
O-Ring 6.88x1.68 |
1 |
|
|
003 |
232-0003
|
Seat |
1 |
|
|
004 |
232-0004
|
Nozzle insert |
1 |
|
|
005 |
232-0005
|
Nozzle stablizer |
1 |
|
|
006 |
232-0006
|
O-Ring 16x2 |
1 |
|
|
007 |
232-0109
|
Spraying plug 1/4in female |
1 |
|
|
008 |
232-0110
|
Pipe 400mm M12x1 |
1 |
|
|
009 |
232-0007
|
Coupling 22mm female x 12mm male |
1 |
|
|
011 |
232-0008
|
Head cover black |
1 |
|
|
012 |
232-0009
|
Rear cover yel |
1 |
|
|
N/S |
232-0010
|
Rebuild kit |
1 |
|
|
N/S |
232-0011
|
Nozzle complete with lance |
1 |
|
|
