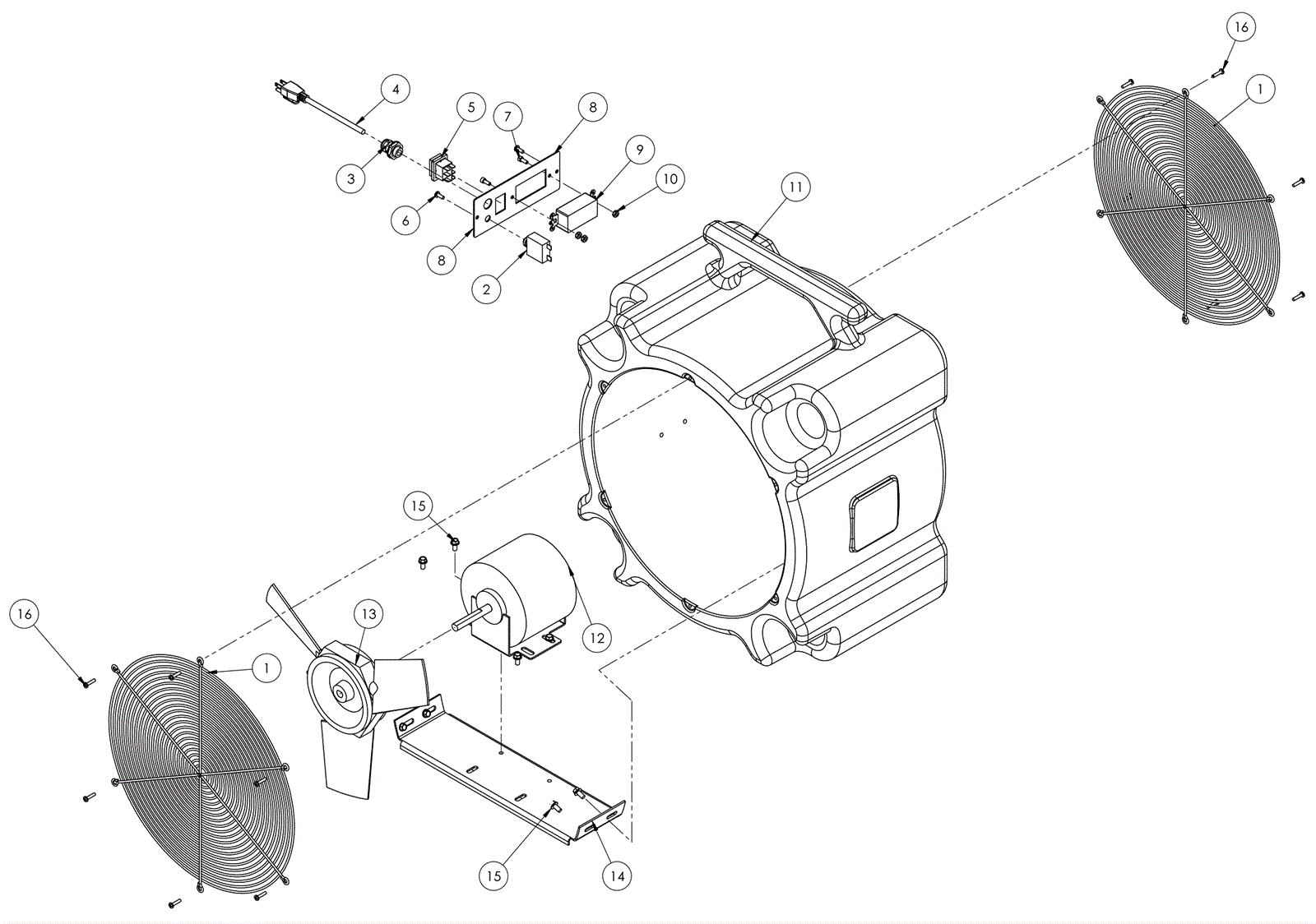

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
231-9045
|
16 inch axial fan guard |
2 |
|
|
2 |
231-9035
|
12amp circuit breaker |
1 |
|
|
3 |
231-9029
|
Axial fans strain relief |
1 |
|
|
4 |
231-0009
|
Power cord 25ft |
1 |
|
|
5 |
231-0016
|
3 position switch |
1 |
|
|
6 |
231-1720
|
Screw 10 x 1/2 inch plastite |
2 |
|
|
7 |
231-4027
|
Screw |
2 |
|
|
8 |
231-9046
|
Switch plate |
1 |
|
|
9 |
231-9036
|
15amp GFI receptacle (black) (OBSOLETE) |
1 |
|
|
10 |
231-2866
|
Nut |
3 |
|
|
11 |
231-9047
|
Axial fan housing |
1 |
|
|
12 |
231-9048
|
115V 1/4HP motor |
1 |
|
|
13 |
231-9049
|
3 Blade fan (OBSOLETE) |
1 |
|
|
14 |
231-9050
|
Tradewind motor mount |
1 |
|
|
15 |
231-2899
|
Bolt 1/4-20 x 1/2 serrated |
8 |
|
|
16 |
231-9051
|
Screw pan head stainless steel 8 x 3/4 inch |
12 |
|
|
N/S |
231-9052
|
Stop sign |
1 |
|
|
N/S |
231-9053
|
User manual |
1 |
|
|
