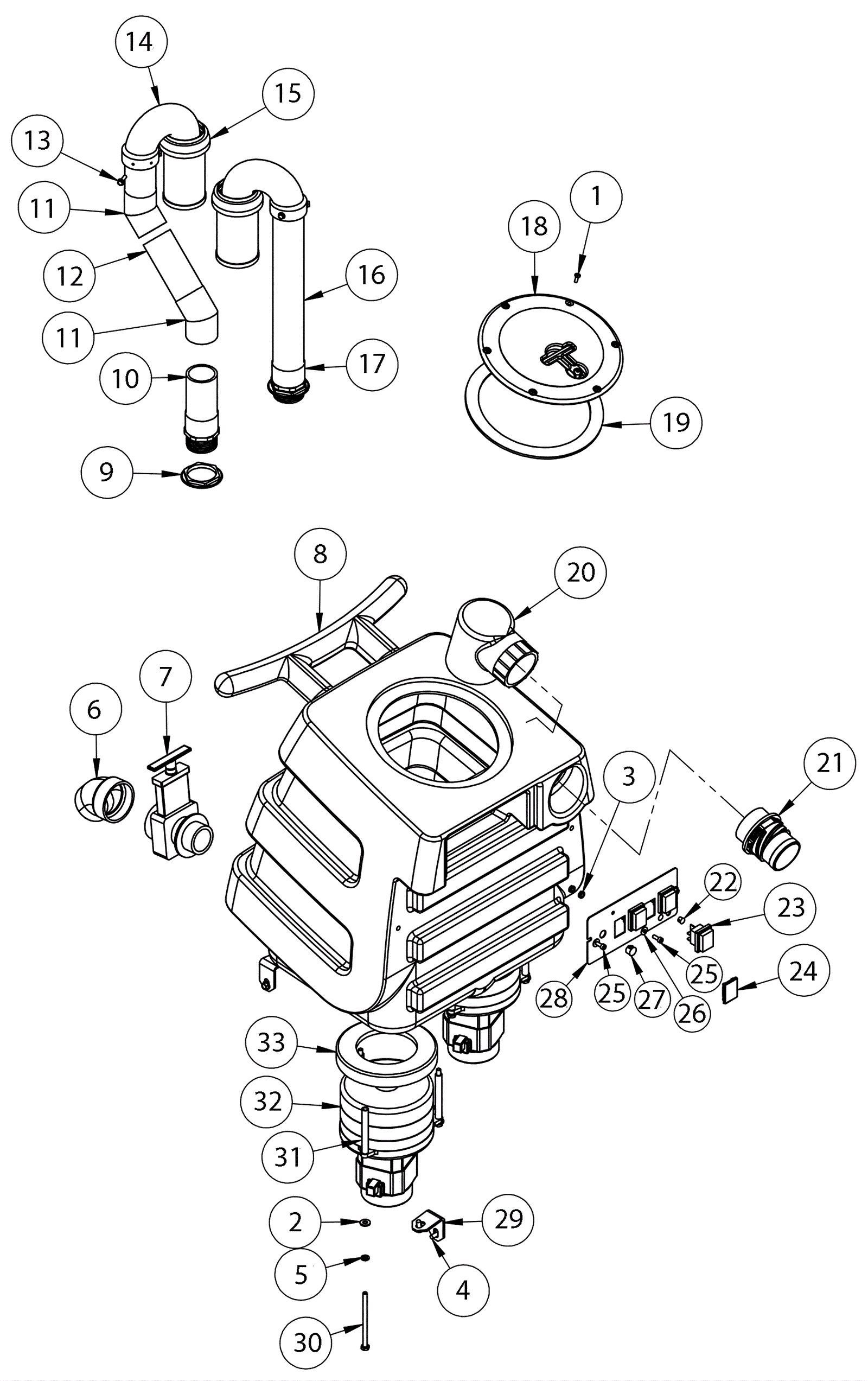

1000DX-200 Top Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 231-2879 Screw 8-15 x 5/8 $1.74 8 usually ships 3-16 days
2 231-4005 Washer $1.74 4 usually ships 3-16 days
3 231-2866 Nut $1.74 4 usually ships 3-16 days
4 231-2899 Bolt 1/4-20 x 1/2 serrated $1.74 4 usually ships 3-16 days
5 231-2886 Washer 1/4 $1.74 5 usually ships 3-16 days
6 231-0046 45° drain spout $8.88 1 usually ships 3-16 days
7 231-0021 Drain valve $37.77 1 usually ships 3-16 days
8 231-4053 Vacuum tank $257.18 1 usually ships 3-16 days
9 231-2903 Nut 1 1/2 $5.30 2 usually ships 3-16 days
10 231-9016 1 1/2 inch PVC pipe $9.16 2 usually ships 3-16 days
11 231-4103 45 degree adapter $7.99 2 usually ships 3-16 days
12 231-0232 1 1/2 inch pipe $6.67 1 usually ships 3-16 days
13 231-4039 Screw $1.74 6 usually ships 3-16 days
14 231-0065 Elbow for float assembly (OBSOLETE) $11.83 2 usually ships 3-16 days
16 231-0232 1 1/2 inch pipe $6.67 1 usually ships 3-16 days
17 231-2904 1 1/2 inch PVC adapter $5.21 2 usually ships 3-16 days
18 231-0049 7 inch vac tank lid (clear) $53.47 1 usually ships 3-16 days
19 231-0038 7 inch vacuum lid gasket $17.33 1 usually ships 3-16 days
20 231-2907 2 inch inlet assembly $23.09 1 usually ships 3-16 days
21 231-2898 2 inch male starter vacuum hose connector $11.02 1 usually ships 3-16 days
22 231-9017 3/8 inch dome plug (black) $1.74 2 usually ships 3-16 days
23 231-0014 2 position rocker switch $20.23 3 ships same day
24 231-4026 Plug $3.17 1 usually ships 3-16 days
25 231-4027 Screw $1.74 3 usually ships 3-16 days
26 999-0266 Washer #8 SAE flat stainless steel $0.99 3 ships same day
27 231-9018 1/2 inch vent plug $6.58 1 usually ships 3-16 days
28 231-9019 Switch plate $10.12 1 usually ships 3-16 days
29 231-2909 L bracket $10.12 2 usually ships 3-16 days
30 231-4107 Bolt $1.74 6 usually ships 3-16 days
31 231-0233 Vacuum motor support $5.76 6 ships same day
32 231-0060 120V 3 stage vacuum motor $199.68 2 usually ships 3-16 days
33 231-0004 Vac motor gasket $12.98 2 usually ships 3-16 days
