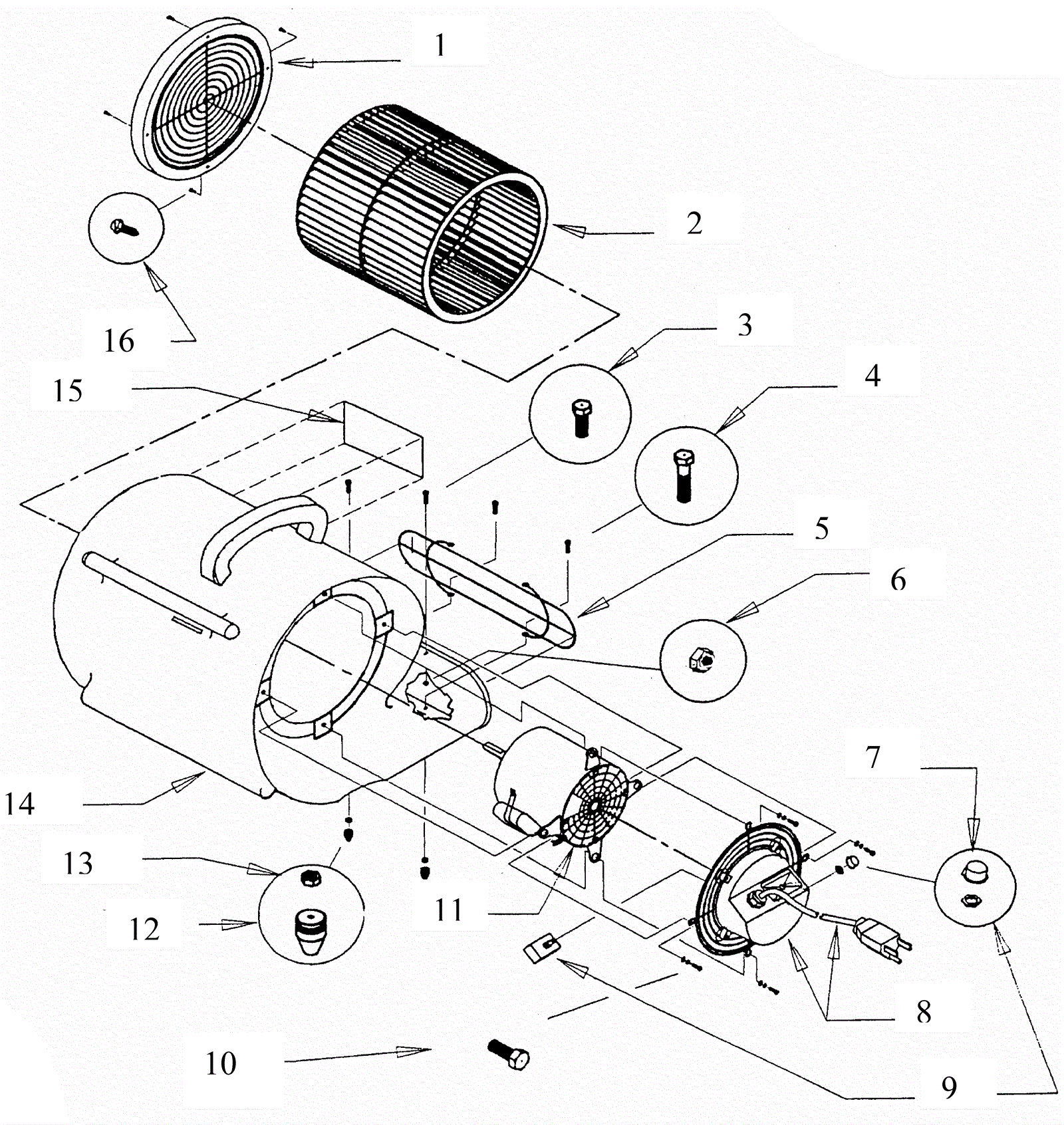

Entire Assembly

#PartDescription ReqNotesAvailability
1 231-0023 Side guard (OBSOLETE) 1
2 231-0005 Blower wheel (OBSOLETE) 1
3 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
4 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
5 N/A Not available 1
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
7 231-9010 Knob (OBSOLETE) 1
8 N/A Not available 1 (includes 7)
9 231-0010 3 speed rotary switch (OBSOLETE) 1
10 999-6673 Bolt 1/4-20 x 5/8 hex flanged zinc finish 4
11 N/A Not available 1
12 231-0006 Rubber foot (OBSOLETE) 2
13 999-0609 Nut 1/4-20 hex stainless steel 2
14 N/A Not available 1
15 N/A Not available 1
16 N/A Not available 4
