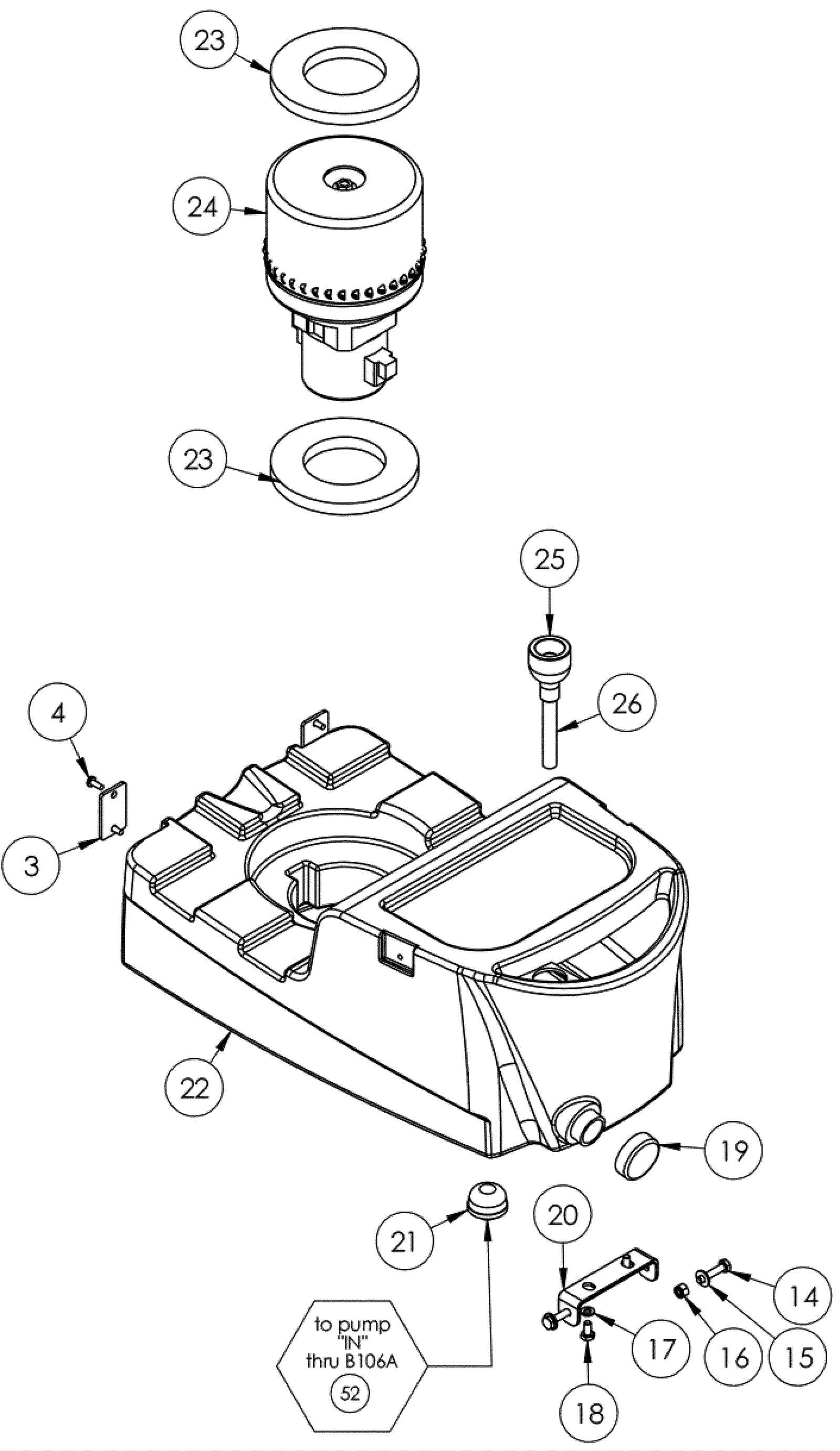

Tank Assembly

#PartDescription ReqNotesAvailability
3 231-1710 Connecting plate 4
4 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 28
14 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 2
15 231-4005 Washer 6
16 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
17 231-2886 Washer 1/4 2
18 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 2
19 231-2920 1 5/8 inch cap 1
20 231-2934 Front hinge bracket 1
21 231-1687 Filter strainer 1
22 231-1715 Solution tank 1
23 231-0004 Vac motor gasket 2
24 231-2846 3 stage vacuum motor 1
25 231-4098 faucet fill 1
26 231-1716 Clear tubing (sold by the foot) 1
52 231-2896 1/4 hex nipple 2
