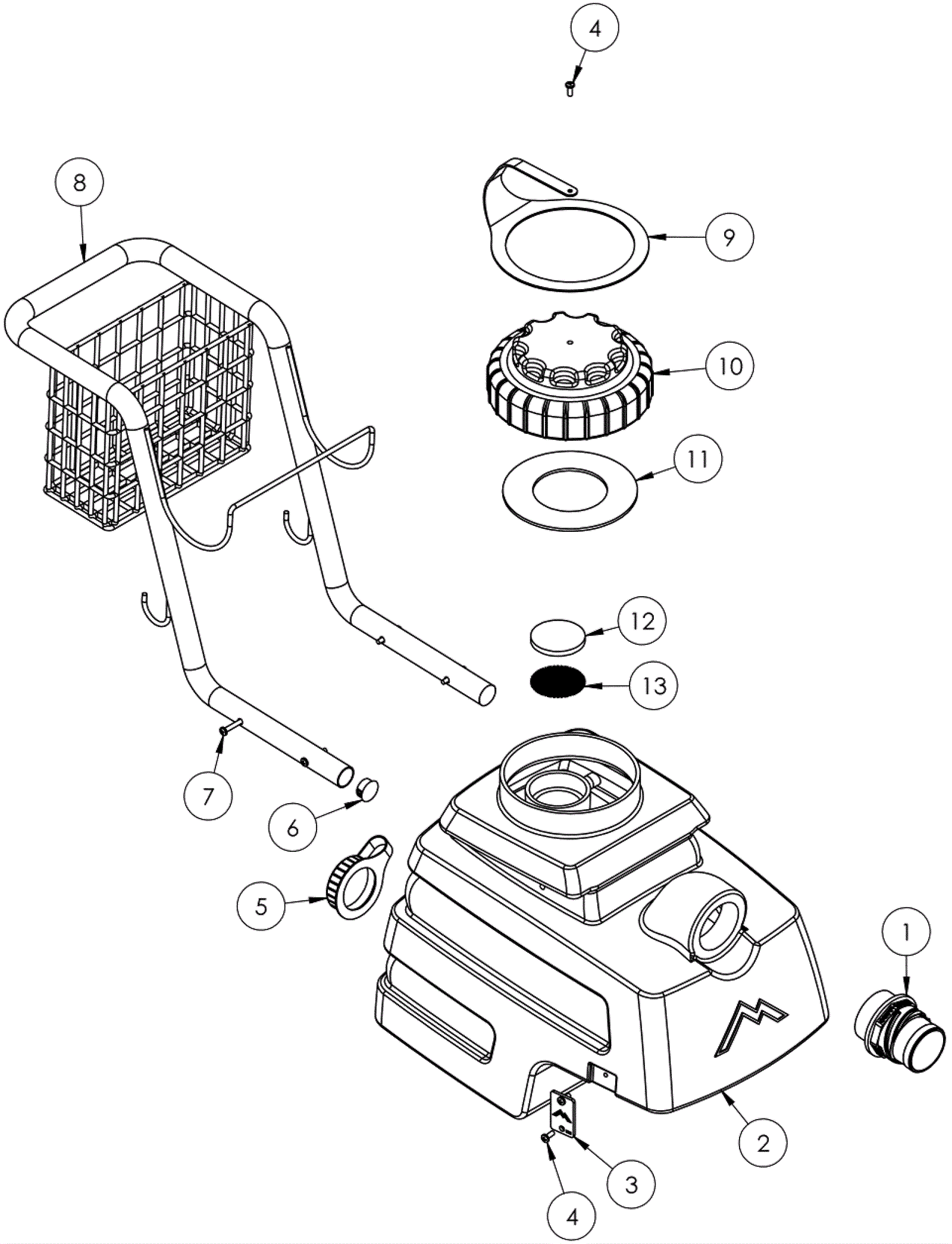

Upper Assembly

#PartDescription ReqNotesAvailability
1 231-2898 2 inch male starter vacuum hose connector 1
2 231-1709 Vacuum tank 1
3 231-1710 Connecting plate 4
4 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 28
5 231-2864 Tethered cap 1
6 231-1705 7/8 inch heyco plug (black) 2
7 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 6
8 231-1711 Handle 1
9 231-1712 6 1/2 inch cap tether 1
10 231-1713 6 inch threaded cap 1
11 231-4009 Gasket 1
12 231-4014 Foam filter 1
13 231-2847 Mesh filter 1
