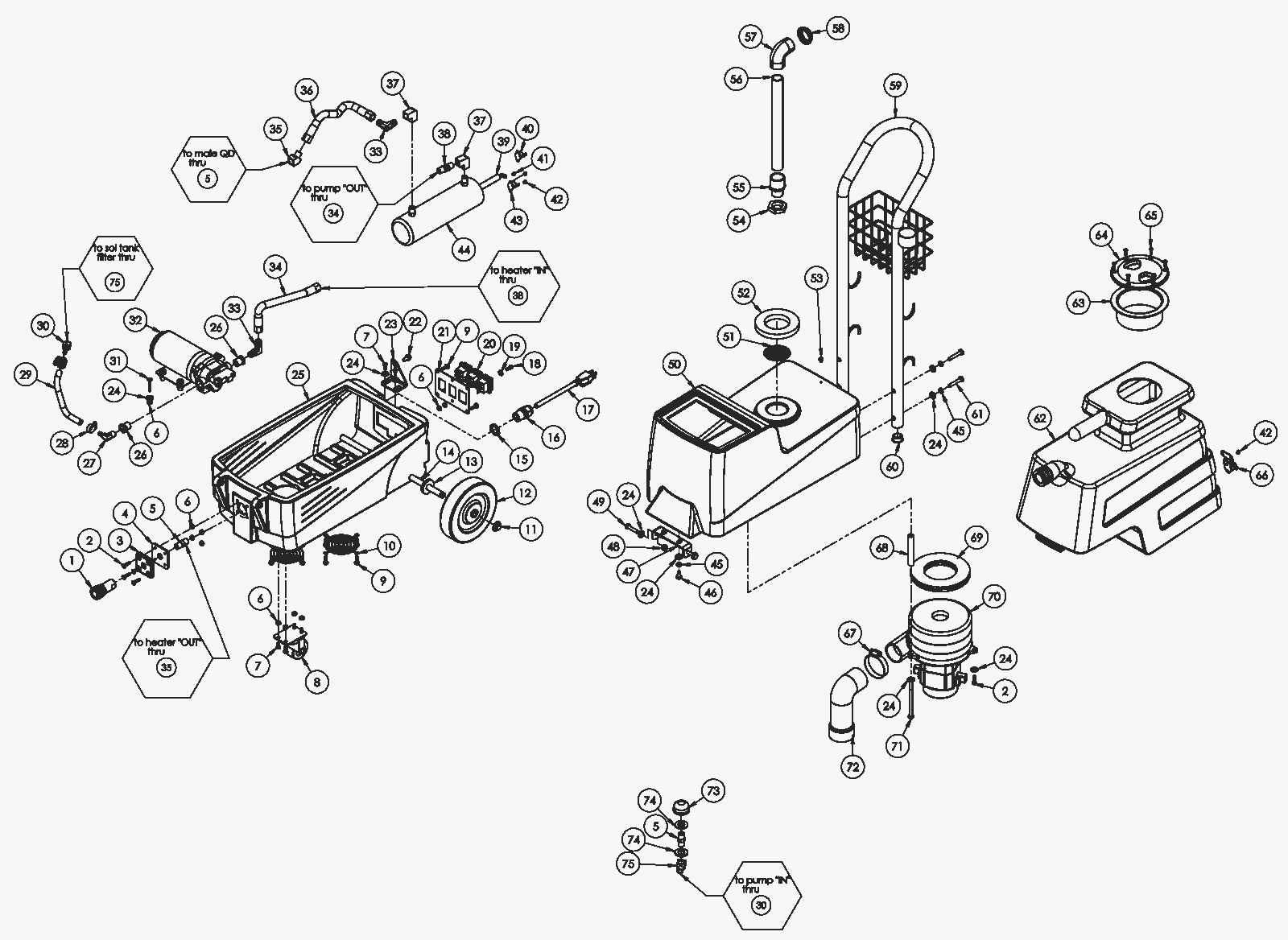

Complete Assembly

#PartDescription ReqNotesAvailability
1 231-0066 1/4 inch female brass quick disconnect 1
2 999-6668 Screw 10-32 x 3/4 phillips pan head zinc 6
3 231-4100 Mounting plate 1
4 231-1689 Cork gasket 1
5 231-2896 1/4 hex nipple 2
6 231-2866 Nut 17
7 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 10
8 231-2848 Locking swivel caster 2
9 231-4039 Screw 12
10 231-2878 Fan guard 2
11 231-0019 Axle cap 2
12 231-1688 6 inch wheel 2
13 231-2882 Washer 1/2 4
14 231-1690 Axle 1
15 231-2881 Nut 1/2 1
16 231-0007 Strain relief fitting 1
17 231-2828 Power cord 1
18 231-4027 Screw 1
19 999-0266 Washer #8 SAE flat stainless steel 1
20 231-0014 2 position rocker switch 3
21 231-1691 Switch plate 1
22 231-2899 Bolt 1/4-20 x 1/2 serrated 1
23 231-1692 Bracket 1
24 231-4005 Washer 16
25 231-1693 Base 1
26 231-0234 Spray nozzle 2
27 231-4093 90 degree elbow (OBSOLETE) 1
28 231-4040 Hose clamp 3
29 231-1694 1/4 inch solution hose (sold by the foot) 1
30 231-4073 Fitting 1
31 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 3
32 231-0002 Pump motor 1
33 231-4041 90 degree elbow 2
34 231-2870 10 inch solution hose 1
35 231-1695 1/4 inch male NPTF street elbow brass 1
36 231-0235 Filter 1
37 231-2869 90 degree elbow 2
38 231-0034 Brass check valve 1
39 231-0036 Heating rod 1
40 231-0032 Thermostat 200 1
41 231-2867 Screw 6-18 x 3/16 1
42 231-1696 Screw 6-32 x 3/16 pan head phillips zinc plated 8
43 231-0031 Thermostat 310 1
44 231-0045 Aluminum casting heater 1
45 231-2886 Washer 1/4 6
46 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 2
47 231-2934 Front hinge bracket 1
48 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
49 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 2
50 231-1697 Solution tank 1
51 231-2847 Mesh filter 1
52 231-4013 Vacuum gasket (OBSOLETE) 1
53 231-1698 Bumper 1
54 231-1699 Nut 3/4 lock brass 1
55 231-1700 3/4 inch pvc adapter 1
56 231-1701 3/4 inch pvc pipe 1
57 231-1702 3/4 inch pvc 1
58 231-1703 Vac stack mesh screen (OBSOLETE) 1
59 231-1704 Handle with basket and tube ring 1
60 231-1705 7/8 inch heyco plug (black) 2
61 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 4
62 231-1706 Vacuum tank 1
63 231-2863 Vacuum tank deflector 1
64 231-0029 Lid 1
65 231-2879 Screw 8-15 x 5/8 6
67 231-2908 2 1/4 inch hose clamp 1
68 231-0233 Vacuum motor support 1
69 231-2849 Vacuum gasket (OBSOLETE) 2
70 231-0060 120V 3 stage vacuum motor 1
71 231-4107 Bolt 1
72 231-4045 Exhaust boot 1
73 231-1687 Filter strainer 1
74 231-2895 Washer 2
75 231-0033 90 degree brass elbow 1
N/S 241-5021 Male quick connect 2
N/S 231-0066 1/4 inch female brass quick disconnect 1
N/S 182-2062 15 ft. solution hose 1
N/S 231-4038 Velcro strap (OBSOLETE) 6
N/S 231-1708 Solution hose pigtail 1
N/S 231-2845 15 foot vacuum hose 1
N/S 231-2865 Valve 1
