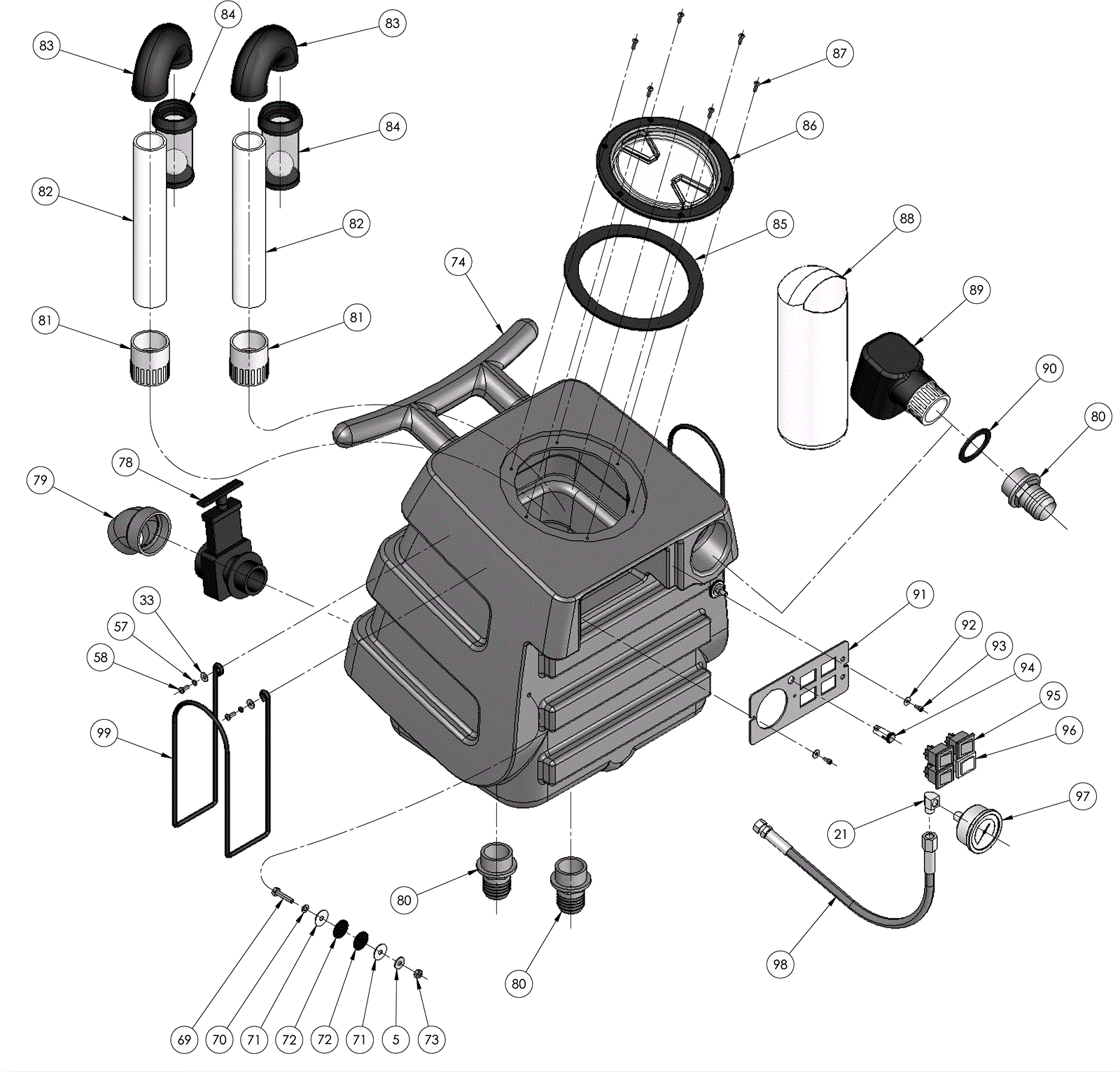

Vacuum Tank Assembly

#PartDescription ReqNotesAvailability
5 231-4005 Washer 16
21 231-0033 90 degree brass elbow 5
33 999-0998 Washer #10 flat stainless steel 12
57 231-4056 Washer M10 lock 8
58 231-2841 Strainer 8
69 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 2
70 231-2886 Washer 1/4 2
71 231-2887 Washer 1/4 x 1 4
72 231-2888 Washer 3/16 4
73 999-0609 Nut 1/4-20 hex stainless steel 2
74 231-4053 Vacuum tank 1
75 231-4119 Hose 1
76 231-4102 Adapter fitting 1
77 231-1687 Filter strainer 1
78 231-0021 Drain valve 1
79 231-0046 45° drain spout 1
80 231-2851 Inlet (OBSOLETE) 3
81 231-4047 Adapter 2
82 231-0232 1 1/2 inch pipe 2
83 231-0065 Elbow for float assembly (OBSOLETE) 2
84a 173-5336 Float cage assembly 2
84b 991-5136 Shut-off float 2 (NON-OEM)
85 231-4068 Vacuum lid gasket (OBSOLETE) 1
86 182-1046 6 inch vac lid (clear) (OBSOLETE) 1
87 231-2879 Screw 8-15 x 5/8 6
88 231-0025 Filter bag 1
89 231-4069 Elbow inlet assembly (OBSOLETE) 1
90 N/A Not available 1
91 231-4081 Plate 1
92 999-0266 Washer #8 SAE flat stainless steel 2
93 231-2901 Screw 8-32 x 3/8 alloy 2
94 231-4083 Light (OBSOLETE) 1
95 231-0014 2 position rocker switch 3
96 231-0016 3 position switch 1
97 231-4082 Pressure gauge (OBSOLETE) 1
98 231-4088 28 inch solution hose 1
99 231-4054 Hose hanger 2
