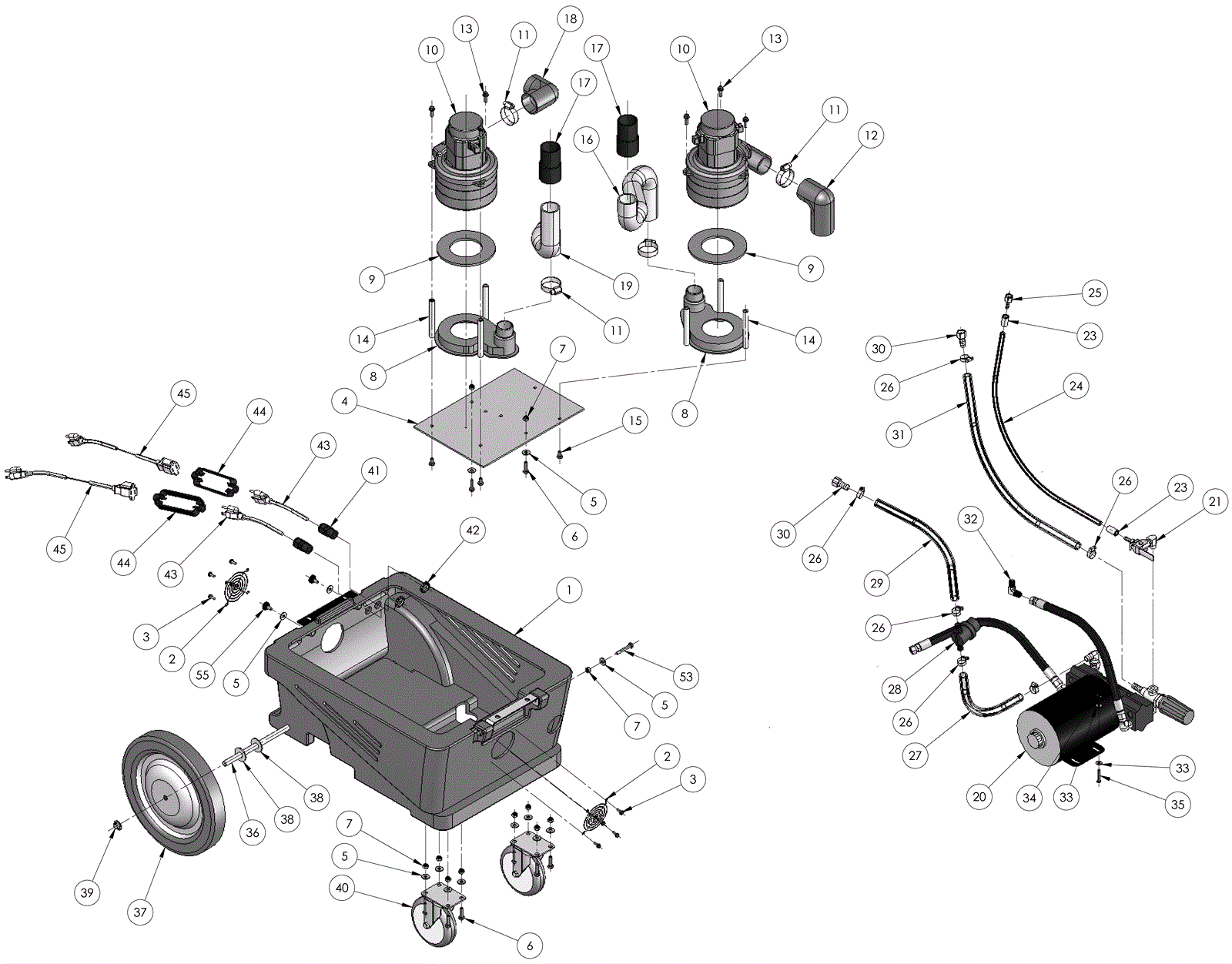

Base Assembly

#PartDescription ReqNotesAvailability
1 231-4050 Base 1
2 231-2878 Fan guard 2
3 231-4061 Screw M10-32 hex head (OBSOLETE) 8
4 231-4006 Dual manifold plate 1
5 231-4005 Washer 16
6 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 10
7 999-0152 Nut 1/4-20 nylon insert lock zinc plated 12
8 231-2918 Manifold (OBSOLETE) 2
9 231-0004 Vac motor gasket 2
10 231-0020 120V, 3 stage vac motor (OBSOLETE) 2
11 231-2908 2 1/4 inch hose clamp 4
12 231-4045 Exhaust boot 1
13 231-4001 1/4-20 X 3/4 inch bolt 6
14 231-0064 Bracket 6
15 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 6
16 231-4051 Vacuum hose 1
17 231-4044 Hose cuff 2
18 231-4045 Exhaust boot 1
19 231-4051 Vacuum hose 1
20 231-0024 450 PSI pump and regulator assembly (OBSOLETE) 1
21 231-0033 90 degree brass elbow 5
22 231-0051 Priming valve (OBSOLETE) 1
24 231-4072 Solution hose 1
25 231-4073 Fitting 2
26 231-4040 Hose clamp 6
27 231-2835 Solution hose (sold by the foot) 1
28 231-4075 Filter 1
29 231-2835 Solution hose (sold by the foot) 1
30 231-2877 1/2 inch brass adaptor 2
31 231-2835 Solution hose (sold by the foot) 1
32 231-4041 90 degree elbow 1
33 999-0998 Washer #10 flat stainless steel 12
34 231-2866 Nut 2
35 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 2
36 231-4080 Axle 1
37 231-0018 Wheel 12 inch (OBSOLETE) 2
38 231-2882 Washer 1/2 4
39 231-0019 Axle cap 2
40 231-0061 5 inch caster (OBSOLETE) 2
41 231-0007 Strain relief fitting 2
42 231-2881 Nut 1/2 2
43 231-0062 12/3 pigtail power cord 30 inch (OBSOLETE) 2
44 231-4060 Cord connector (OBSOLETE) 2
45 231-4052 Power cord 2
53 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel 2
55 231-4059 Thumb screw (black) 2
