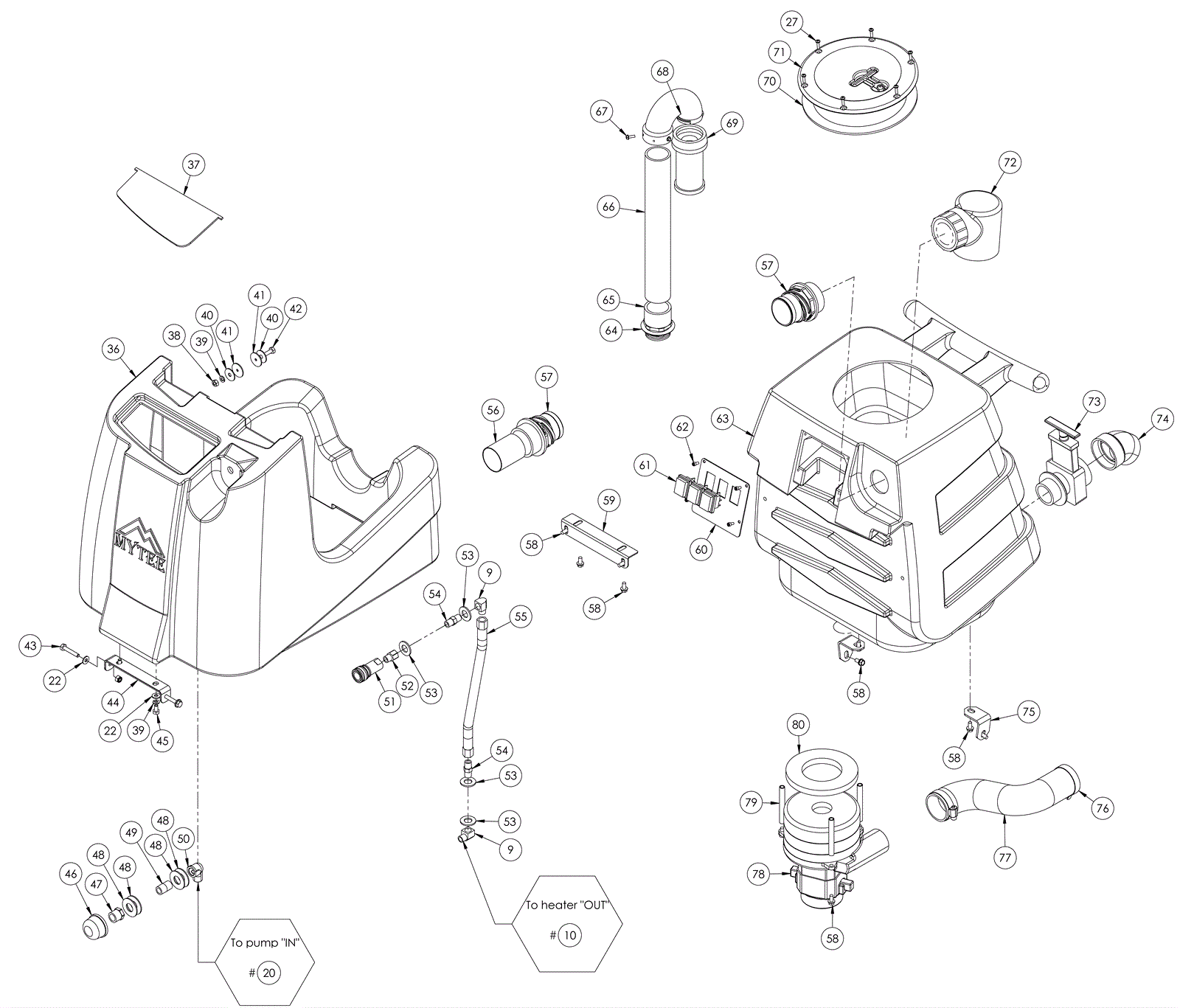

Upper Assembly

#PartDescription ReqNotesAvailability
36 231-2885 Solution tank 1
37 231-0041 Solution tank lid (OBSOLETE) 1
38 999-0609 Nut 1/4-20 hex stainless steel 2
39 231-2886 Washer 1/4 4
40 231-2887 Washer 1/4 x 1 4
41 231-2888 Washer 3/16 4
42 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 2
43 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2
44 231-2889 Front hinge bracket 1
45 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 2
46 231-2841 Strainer 1
47 231-2890 Bushing 1
48 231-2891 Washer 1 1/16 4
49 231-2892 Brass nipple 1
50 231-2893 90 degree street elbow 1
51 231-0066 1/4 inch female brass quick disconnect 1
52 231-2894 Brass adapter 1
53 231-2895 Washer 4
54 231-2896 1/4 hex nipple 2
55 231-2829 14.5 inch hose 1
56 231-2897 2 inch coupler 1
57 231-2898 2 inch male starter vacuum hose connector 2
58 231-2899 Bolt 1/4-20 x 1/2 serrated 12
59 231-2900 Rear bracket 1
60 231-0047 Switch plate (OBSOLETE) 1
61 231-0014 2 position rocker switch 3
62 231-2901 Screw 8-32 x 3/8 alloy 4
63 231-2902 Vacuum tank (OBSOLETE) 1
64 231-2903 Nut 1 1/2 1
65 231-2904 1 1/2 inch PVC adapter 1
68 231-0065 Elbow for float assembly (OBSOLETE) 1
69a 173-5336 Float cage assembly 1
69b 991-5136 Shut-off float 1 (NON-OEM)
70 231-0038 7 inch vacuum lid gasket 1
71 231-0049 7 inch vac tank lid (clear) 1
72 231-2907 2 inch inlet assembly 1
73 231-0021 Drain valve 1
74 231-0046 45° drain spout 1
75 231-2909 L bracket 2
76 231-2908 2 1/4 inch hose clamp 2
77 231-2910 2 inch wire reinforced vacuum hose 1
78 231-0060 120V 3 stage vacuum motor 1
79 231-0233 Vacuum motor support 3
80 231-0004 Vac motor gasket 1
