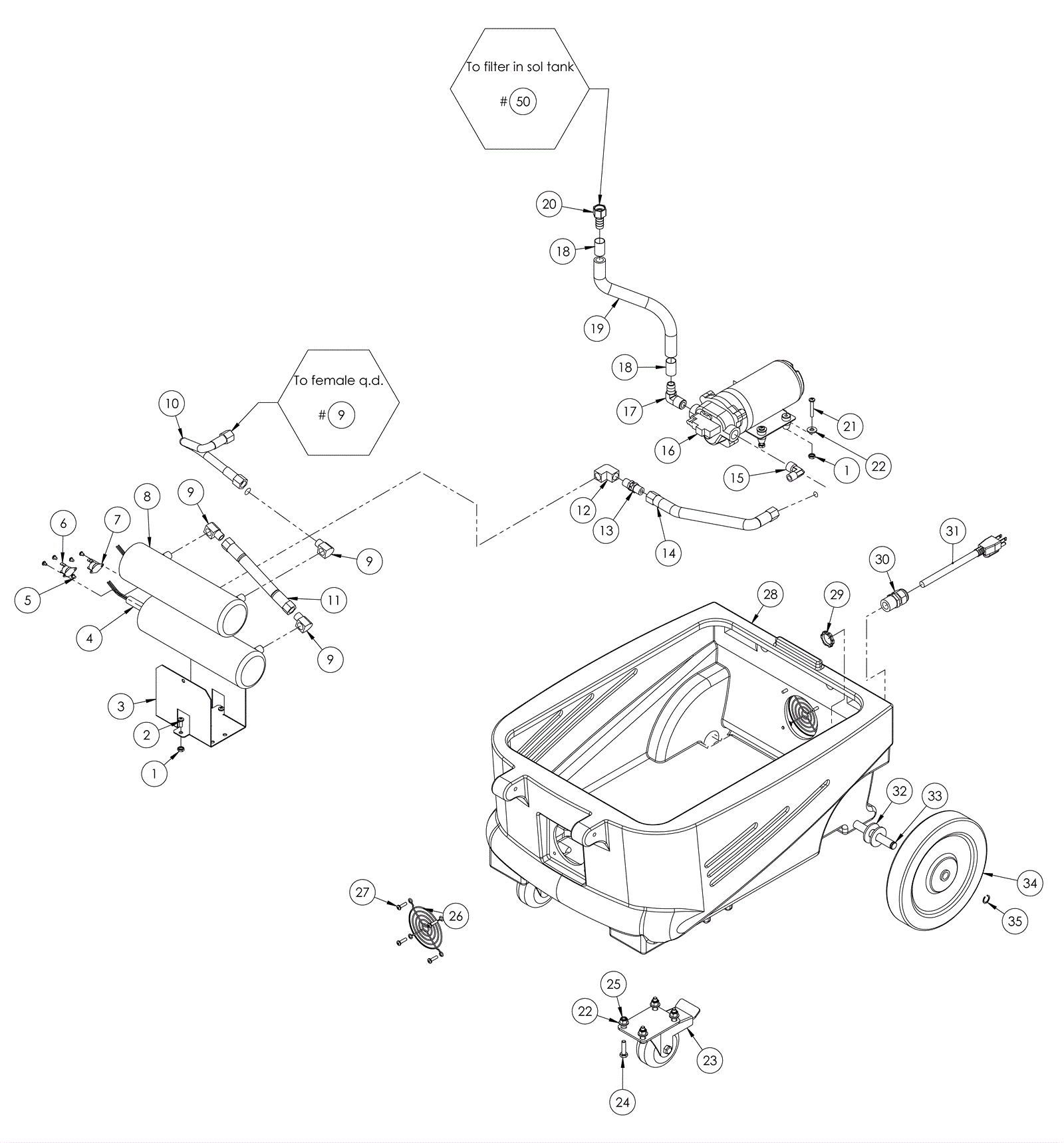

HP100 Lower Assembly

#PartDescriptionPriceReqNotesAvailability
1 231-2866 Nut $1.58 6 usually ships 3-16 days
2 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
3 231-0037 Dual heater mounting bracket $39.41 1 usually ships 3-16 days
4 231-0044 Heater rod $65.65 2 usually ships 3-16 days
5 231-2867 Screw 6-18 x 3/16 $1.58 10 usually ships 3-16 days
6 231-0031 Thermostat 310 $23.63 2 usually ships 3-16 days
7 231-0032 Thermostat 200 $21.73 2 usually ships 3-16 days
8 231-0045 Aluminum casting heater $131.09 2 usually ships 3-16 days
9 231-0033 90 degree brass elbow $5.98 5 usually ships 3-16 days
10 231-4088 28 inch solution hose $46.68 1 usually ships 3-16 days
11 231-0048 6.5 inch solution hose $31.51 1 usually ships 3-16 days
12 231-2869 90 degree elbow $7.87 1 usually ships 3-16 days
13 231-0034 Brass check valve $26.25 1 usually ships 3-16 days
14 231-2870 10 inch solution hose $48.48 1 usually ships 3-16 days
15 231-2871 3/8 90 degree elbow $11.22 1 usually ships 3-16 days
16 231-0002 Pump motor $218.77 1 usually ships 3-16 days
17 231-2873 90 degree elbow with 1/2 barb $12.53 1 usually ships 3-16 days
18 231-2874 Ferrule $1.58 2 usually ships 3-16 days
20 231-2877 1/2 inch brass adaptor $5.54 1 usually ships 3-16 days
21 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 4 ships same day
23 231-0063 3 inch locking caster $19.71 2 usually ships 3-16 days
24 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 8 ships same day
25 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 10 ships same day
26 231-2878 Fan guard $4.74 2 usually ships 3-16 days
27 231-2879 Screw 8-15 x 5/8 $1.58 14 usually ships 3-16 days
28 231-2880 Base $200.40 1 usually ships 3-16 days
29 231-2881 Nut 1/2 $3.12 1 usually ships 3-16 days
30 231-0007 Strain relief fitting $4.62 1 usually ships 3-16 days
31 231-0043 25 foot power cord $78.79 1 usually ships 3-16 days
32 231-2882 Washer 1/2 $1.58 4 usually ships 3-16 days
33 231-2883 Axle $10.99 1 usually ships 3-16 days
34 231-2842 Wheel (OBSOLETE) $31.46 2 usually ships 3-16 days
35 231-2884 C-clip $0.88 2 usually ships 3-16 days
N/S 231-4075 Filter $19.71 1 usually ships 3-16 days
